ifm Electronic IFM distance sensor

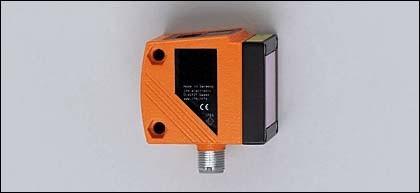

Ifm Electronic Distance sensor optical O1D104 Manufacturer :Ifm Electronic Designation :Distance sensor optical DC NPN S/Ö Type :O1D104 Sensing principle :other Analogue output version :other Electrical connection version :M12 plug connector Switching output version :NPN Switching function version :programmable/configurable Supply voltage :18..30 V Width of sensor :42 mm Height of sensor :59 mm Length of sensor :45 mm Setting method :Parameterisation Explosion protection category for gas :none Explosion protection category for dust :none Housing design :Block Laser protection class :Class 2 Type of light :Laser diode, red light Max. output current :200 mA Measuring range Length Output current :200 mA Measuring range length :200..10000 mm Switching frequency :5 Hz Protection class (IP) :IP65 Voltage type :DC Ambient temperature :-10...60 °C Material of optical surface :Glass Material of housing :Zinc With time function :no Ifm Electronic optical distance sensor O1D104: more details Optical sensors, Optical distance sensor, Scanning range 10 mm, DC NPN, Operating voltage: 10...30 V DC, Current consumption: 150 mA, Normally open / Normally closed programmable, n.o. / n.c. progr, Plug connection, M12 plug connection, Background suppression, Visible laser light, Laser protection class 2, 4-digit alphanumeric display, Housing material: Housing: Die-cast zinc Front panel: Glass LED window: Polycarbonate, EAN: 4021179182072.
