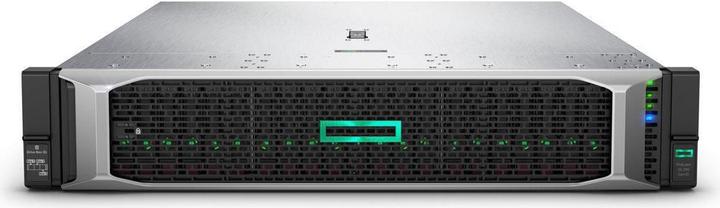

HPE DL380 Gen10 1x Gold 6130 2.1GHz 2x32GB
Intel Xeon Gold 6130, 64 GB, Rack ServerProduct details
The HPE ProLiant DL380 Gen10 is a powerful rack server designed for demanding enterprise applications. Equipped with an Intel Xeon Gold 6130 processor featuring 16 cores and a clock speed of 2.1 GHz, this server delivers high processing power and efficiency. With 64 GB of DDR4 RAM, configured as two 32 GB modules, it enables fast data processing and multitasking capabilities. The server supports up to eight 2.5-inch hard drives and offers various interfaces such as SATA and SAS for flexible storage options. The redundant power supply with 1600 W ensures high availability and reliability, while the 10/100/1000Base-T(X) Ethernet technology guarantees a fast network connection. The DL380 Gen10 is therefore ideal for companies that require a robust and scalable server solution.
- Processor: Intel Xeon Gold 6130 with 16 cores and 2.1 GHz clock speed
- Memory Capacity: 64 GB DDR4 RAM, configured as 2 x 32 GB
- Maximum Number of Hard Drives: 8, supports SATA and SAS interfaces
- Redundant power supply with 1600 W for increased reliability
- Operating System Support: Windows Server 2012 R2 and Linux.
Number of rack units | 2 U |
Processor family | Xeon Scalable Processors |
Processor type | Intel Xeon Gold 6130 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 64 GB |
Operating system | Linux, Windows, Windows Server 2012 R2 |
Item number | 12011290 |
Manufacturer | HPE |
Category | Servers |
Manufacturer no. | P06423-B21 |
Release date | 1.5.2019 |
External links |
Design | Rack Server |
Number of rack units | 2 U |
Processor family | Xeon Scalable Processors |
Processor type | Intel Xeon Gold 6130 |
Number of processors | 1 x |
Clock frequency | 2.10 GHz |
Number of threads | 32 |
Number of processor cores | 16 -Core |
Max. turbo clock rate | 3.70 GHz |
Max. TDP | 125 W |
L3 Cache | 22 MB |
Socket | Socket P |
Memory type | DDR4-RAM |
Max. memory slots | 24 |
Memory configuration | 2 x 32GB |
RAM | 64 GB |
Max. RAM | 72000 GB |
RAM speed | 2666 MHz |
RAM error correction | ECC |
RAID configuration | 0, 1, 10, 5, 50, 6, 60 |
Possible raid configuration | 0, 1, 10, 10ADM, 1ADM, 5, 50, 6, 60 |
Mass storage controller type | SAS |
Max. number of hard disks | 8 |
Storage capacity | 72000 GB |
Form factor | 2.5" |
Interface | SAS |
PCI express version (max.) | 3 |
USB ports | USB-A |
Connectivity | Ethernet, LAN |
Network connections | RJ45 Gigabit Ethernet (4x) |
Ethernet controller | 331i |
Ethernet controller brand | HP |
Max. port speed | 8000 Mbit/s |
Hardware interface | PCI Express 3.0 |
Video connections | DisplayPort |
Optical drive type | No drive |
Operating system | Linux, Windows, Windows Server 2012 R2 |
Processor design | 64-bit |
Number of power supply units | 2 x |
Power | 1600 W |
Max. number of power supply units | 2 |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 730.30 mm |
Width | 445.50 mm |
Height | 87.40 mm |
Weight | 14.76 kg |
