Hanwha Lower frame rate, QVGA

384 x 288 pixels, 768 x 576 Pixels
Ratings
BrandMore from Hanwha
Currently out of stock
Free shipping starting at 50.–

Product details

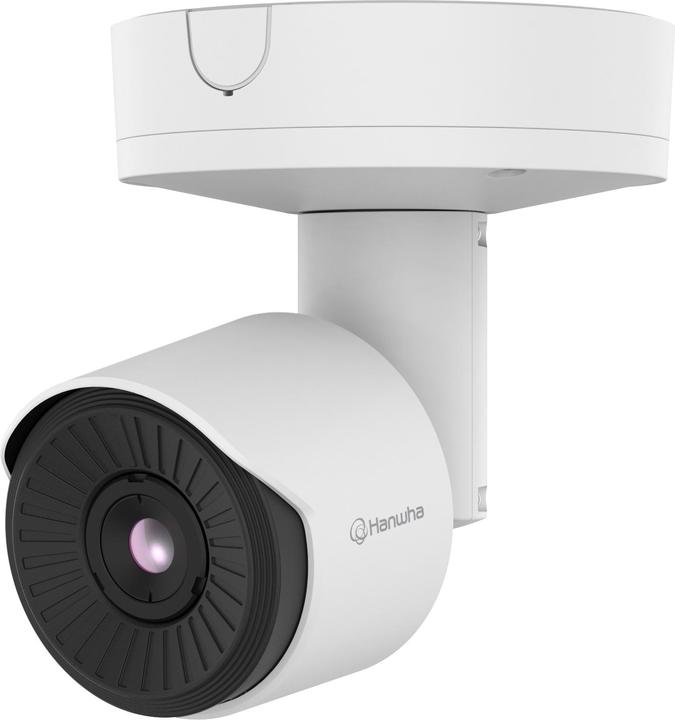

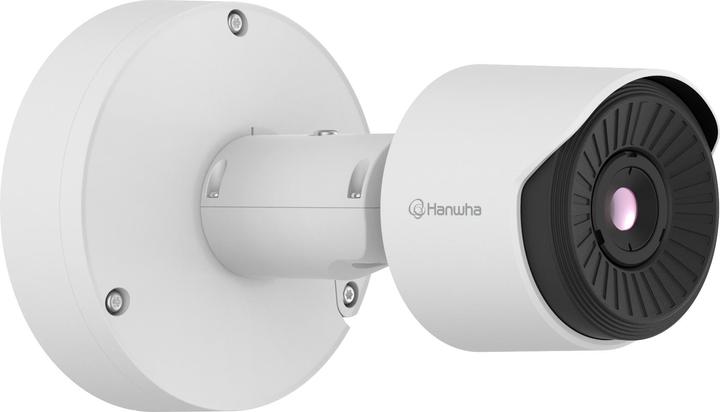

The Hanwha Vision thermal camera TNO-C3012TRA is a highly advanced surveillance camera specifically designed for outdoor use. With a sensor resolution of 0.44 megapixels and a frame rate of 8 fps, this camera provides reliable visual video monitoring. It is equipped with a wide-angle lens that offers a field of view of 118.6 degrees, ensuring comprehensive coverage of the surveillance area. The camera is vandal-proof and features a robust construction suitable for outdoor deployment. It supports various connectivity options, including LAN (RJ45), Micro-USB, and RS-485, facilitating integration into existing network systems. Power can be supplied via 12 V DC or PoE, allowing for flexible installation.

  • Vandal-proof design for enhanced outdoor security
  • Supports PoE for easy installation and power supply
  • Maximum image resolution of 768 x 576 pixels for clear image quality
  • Pan range of 0 to 350° for flexible monitoring options
  • IP66 rating for resistance to weather conditions.

Key specifications

Network camera type
Outdoor surveillance camera
Lens type
Prime lens
Type of memory
Memory card
Network interface
PoE
Power supply
Electrical connection, PoE

General information

Item number
43258081
Manufacturer
Hanwha
Category
Network camera
Manufacturer No.
TNO-C3012TRA
Release date
29.2.2024

Colour

Colour
Black, White
Exact colour description
Black, White

Material

Material group
Metal, Plastic
Material
Aluminium, Plastic

Camera properties

Network camera type
Outdoor surveillance camera
Set size
Single camera
Camera design
Bullet camera
Camera resolution
0.44 Mpx
Max. picture resolution
384 x 288 pixels, 768 x 576 Pixels
Viewing angle (H)
90°
Viewing angle (V)
65.30°
Viewing angle (D)
118.60°
Lens type
Prime lens
Focal length
4.4 mm
Aperture
f/1
Refresh rate
8 FPS
Tilt range
0 - 90°
Swivel range
0 - 350°
Video file formats
H.264, H.265
Audio formats
AAC-LC, ADPCM, G.711, G.726
Protection type (IP code)
IP66

Connections

Connection A
Micro USB, RJ45, RS-485

Data storage properties

Memory card type
microSD, microSDHC, microSDXC
Type of memory
Memory card

Network

Network interface
PoE
Max. port speed
1000 Mbit/s

Smart home features

Smart home
Not compatible

Application range

Installation place
Ceiling
Application range
Outside

Power supply

Power supply
Electrical connection, PoE
PoE Standard
802.3af (PoE)

Origin

Country of origin
South Korea

Scope of delivery

Number of cameras
1x
Scope of delivery
IP Security Camera

Product dimensions

Height
93.80 mm
Width
93.80 mm
Weight
1700 g
