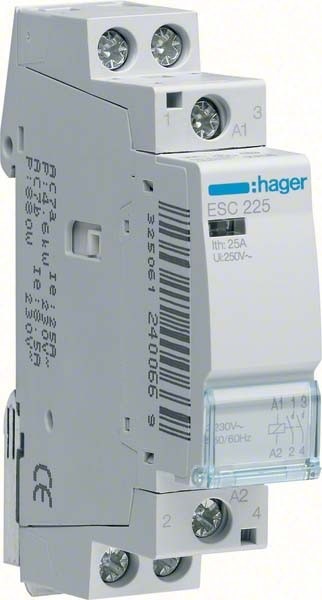

Installation contactor 25A 1S1Ö 230V. Contactor in compact design according to DIN EN 61095 VDE 0637-3 with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. Note: When multiple devices are installed directly, a spacer 12 PLE must be installed next to every second device.
input voltage | 230 V |
Scope of delivery | 1 piece |
Output voltage | 230 V |
Output current type | AC |
Electric current output | 25 A |
Relay type | Installation contactor |
Item number | 10865825 |
Manufacturer | Hager |
Category | Relays |
Manufacturer no. | ESC227 |
Release date | 26.3.2019 |
Sales rank in Category Relays | 29 of 22629 |
External links |
Relay type | Installation contactor |
input voltage | 230 V |
Output voltage | 230 V |
Electric current output | 25 A |
Output current type | AC |
Resistor | 2.50 Ω (ohm) |
Switching function | Normally open |
Number of openers | 1 x |
Number of closers | 1 x |
Number of poles | 1 x |
Number of switching cycles | 30000 x |
Max. Switching capacity | 1.90 kW |
Manufacturer Type | ESC227 |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 60 mm |
Width | 17.85 mm |
Height | 83 mm |
Weight | 120 g |
Length | 8.50 cm |
Width | 7 cm |
Height | 2 cm |
Weight | 118 g |
