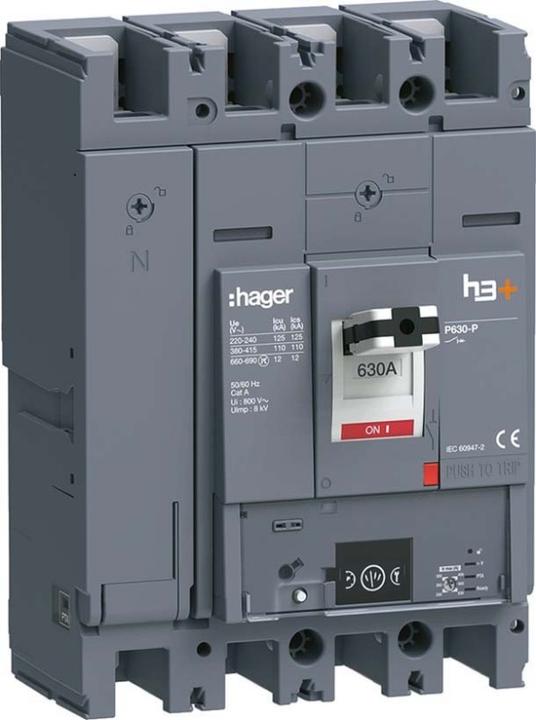

Hager HPW631NR h3+ P630 Energy 4P4D630A 110kA Circuit breaker

The HPW631NR h3+ P630 Energy 4P4D630A 110kA circuit breaker from Hager is a highly advanced compact circuit breaker designed according to DIN EN 60947-2 to effectively protect electrical installations and networks from overload and short circuits. With a rated current of 630A and a short-circuit strength of 110kA, this device offers a reliable solution for demanding applications. The electronic tripping unit allows for precise adjustment of the tripping curves via a rotary switch, enabling individual configuration for overload and short-circuit currents. The integrated LEDs provide clear visual feedback on the operating status and potential faults, facilitating maintenance and monitoring. Additionally, a locking function is included to ensure safe handling in the ON or OFF position.

• Adjustable tripping curves for overload and short-circuit currents
• Activatable I²t function for tripping curve adjustment
• LED indicators for operational readiness, overcurrent, and overheating
• Integrated locking function for added safety
• Compact design for easy installation and integration.
