GSM Activate 3G RF DOOR - 3G Door Contact Alarm

GSM Activate - 3G Door Contact Alarm

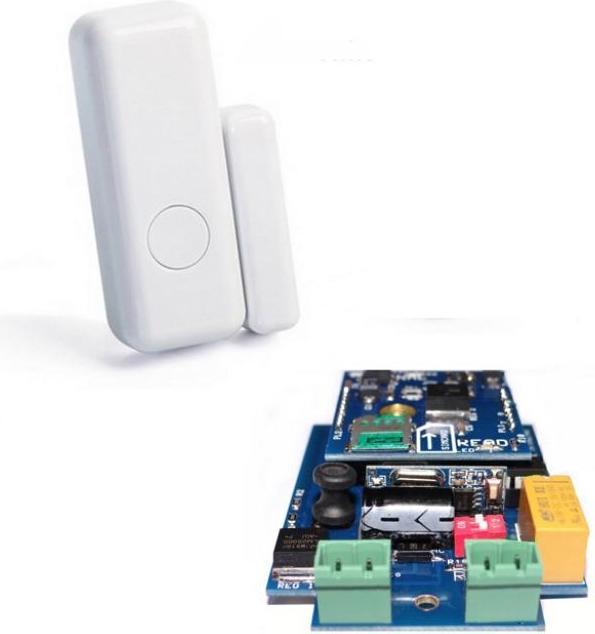

Our GSM door contact alarm system is a standalone alarm system. It is ideal for smaller spaces in properties. Using GSM technology, the device sends a text message and/or a call to the user's mobile phone or landline when the door contact is interrupted. Therefore, the user of the room is immediately notified when there is an intrusion.

The device is housed in an optimally weather-resistant casing, allowing it to be installed both outdoors and indoors. Additionally, the device has been tested at both high and low temperatures.

GSM Module Specifications

• GSM Frequency: Quadband frequency 850/900/1800/1900/2100 MHz
• Supply Voltage: 9 - 24 Volt DC - 1 Amp minimum
• Standby Current Consumption: 60 mA max
• Housing according to IP65 for outdoor installation
• Micro 3G SIM card
• No landline connection required
• Dimensions: L 100 x W 68 x H 50 mm
• PCB Dimensions: L 95 x W 67 mm
• Sim Active Function
• Operating Temperature: -10°C - +40°C
• Programmed via SMS
• Text message for signal strength verification

PIR Specifications

• Alarm Distance: 25 - 35 mm gap
• Detection: Dual function, magnetic door and emergency switch
• Battery Life: 6 months
• Dimensions: L 60 x W 32 x H 13 mm
• Wireless Range: 20 meters.
