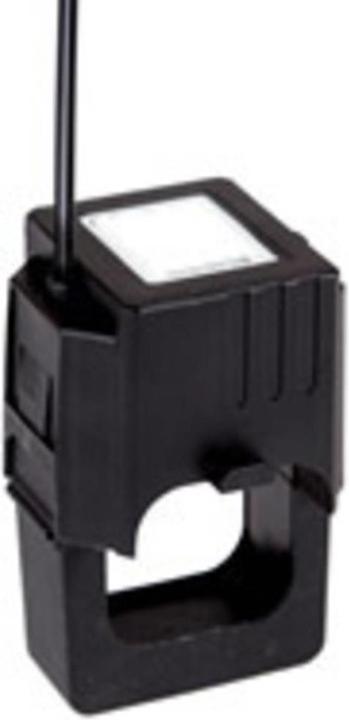

Gossen Metrawatt SC50-E 400/1A 0,5VA

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

Thanks to their compact design, cable conversion current transformers are particularly suitable for use in hard-to-reach places and where space is limited. The split core halves further facilitate installation on the cable or rail. Wherever an interruption of the current path is problematic or a measuring device needs to be easily retrofitted, cable conversion current transformers are the right choice. The secure mounting of the primary cable in the current transformer is structurally ensured and confirmed by a clearly audible click sound. Two included UV-resistant cable ties additionally secure the transformer.

Environmental Conditions:
Installation location indoors
Ambient temperatures: –10 °C to +55 °C
Storage temperatures: –20 °C to +70 °C
Relative humidity: 5% to 85%, condensation must be excluded
Pollution degree: 2
Protection class: IP20

Application Conditions:
Standard: IEC 61869-2:2012
Thermal rated short-time current (Ith): 60 x Ipr/1s
Thermal rated continuous current (Icth): 100%
Rated insulation level: 0.72/3/- kV
Rated frequency: 50/60 Hz
Insulation material class: E (120 °C)
Housing material: PA 6.6, UL94: V2.

Key specifications

measurements
Torrent
Item number
8484931

General information

Manufacturer
Gossen
Category
Metrology
Manufacturer no.
U142C
Release date
21.4.2018

Colour

Colour
Black

Metrology properties

measurements
Torrent
Max. input voltage
3000 V
Manufacturer Type
SC50-E
Digit height
42 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Primary current 400 A Secondary current:1 A

Product dimensions

Length
66 mm
Width
54.60 mm
Height
97 mm
Weight
450 g
