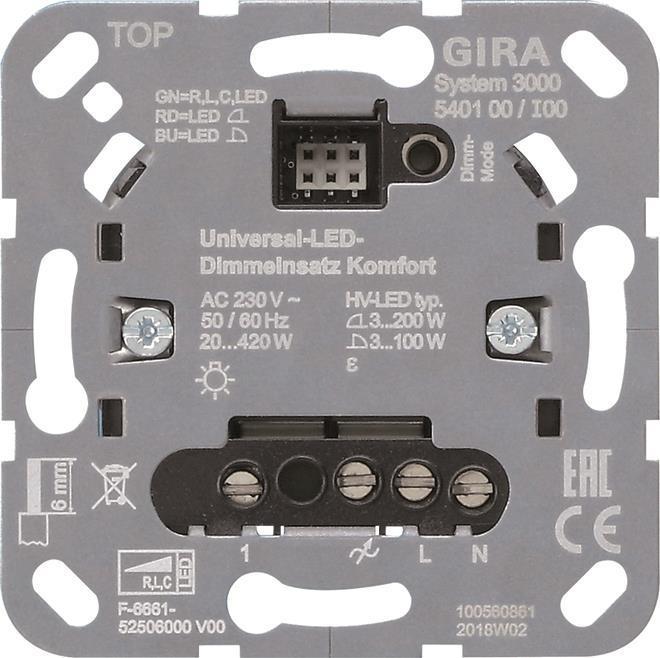

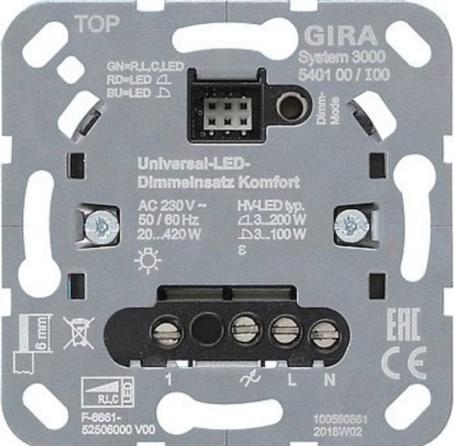

Gira System 3000 Universal LED 540100 Comfort dimming insert

System 3000 Universal LED Dimmer Module Comfort

Features: Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps. Connection of additional control points is possible. Automatic or manual adjustment of the dimming principle suitable for the load (phase cut-in or phase cut-off). Display of the selected operating mode via LED. Gentle switch-on to protect the lamps. Switch-on brightness can be permanently stored. Switch-on with the last set brightness or stored switch-on brightness. Hotel card function can be activated: Light turns "on" after power interruption (from index 02). Minimum brightness adjustable. Electronic short-circuit protection. Electronic over-temperature protection. Operable with or without neutral wire connection. Push-button dimmer. Combination with KNX RF control attachment single and double: Dimming actuator channel single. Sensor channel single or double. Local control of the System 3000 module is possible. Wireless control of other KNX devices as a sensor is possible. Function selection of the module: Dimming principle adjustable, stairwell function, scene function, lock function, time delays.

Notes: Generally, the dimmer can operate without a neutral wire connection; however, some LED and CFLi lamps require a neutral wire connection to avoid flickering. When operating without a neutral wire, the minimum load for incandescent lamps, HV halogen, Tronic transformers, and wound transformers increases to 50 W. Electronic transformers and ballasts for LED lamps can be operated according to the dimming method specified by the manufacturer. If the ambient temperature exceeds 25 °C, the connected load must be reduced.
