Fränkische Press Ring Seal Kabu-Seal 110/150

Manufacturer: Fränkische
Designation: Press Ring Seal
Type: Kabu-Seal 110/150
Execution: Press Ring Seal
Cable Diameter: 112 mm
Pipe Diameter: 110 mm
Length: 60 mm
Inner Diameter before Shrinkage: 111 mm
Inner Diameter after Shrinkage: 106 mm
Seal Width (Depth): 40 mm
Diameter of Wall Opening: 150 mm
Mounting Type: Core Drilling/Pipes
Gas Tight: yes
Air Tight: yes
Waterproof: yes
Radon Tight: yes
Pressure: 1.5 bar
Dismantling Possible: yes
Cable Bundling Possible: no
Shock Resistant to Explosions: no
Certified for Marine Applications: no
Building Sealing according to DAfStb Guidelines: yes

Fränkische Press Ring Seal Kabu-Seal 110/150: additional details

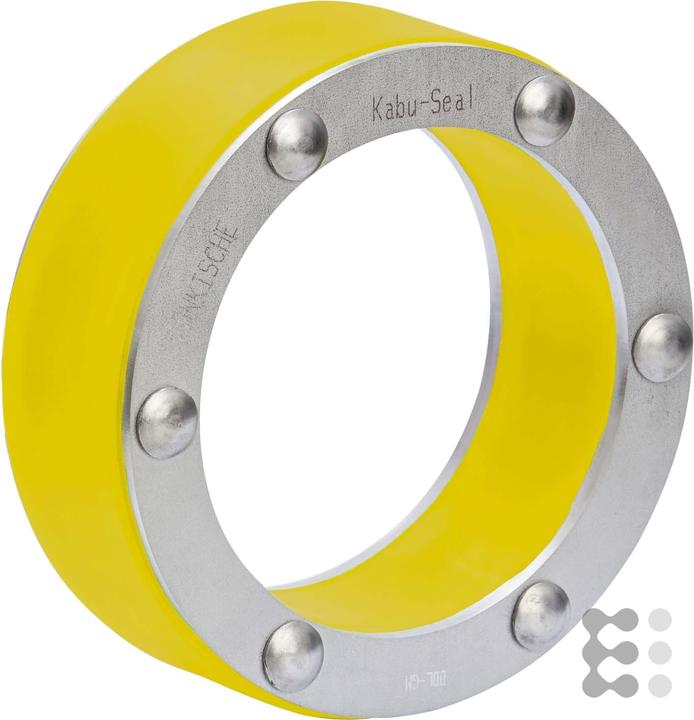

Kabu-Seal is a pipe seal made from a solid rubber core with a soft thermoset elastomer coating in yellow and stainless steel press flanges. The seal is used for gas and pressure water-tight building entry of Kabuflex® R plus pipes. The advantage lies in the soft surface, which creates a seal against the cable protection pipe and the core drilling up to 1.5 bar water pressure. Due to its excellent adhesion properties, the Kabu-Seal press ring sealing insert sits securely against pressing water and gas in the annular space even at very low tightening torque (2 Nm). Installation can be successfully carried out without special tools (torque wrench) using visual contact indication (yellow bead) at the edges of the press flanges.
EAN: 4013960339512.
