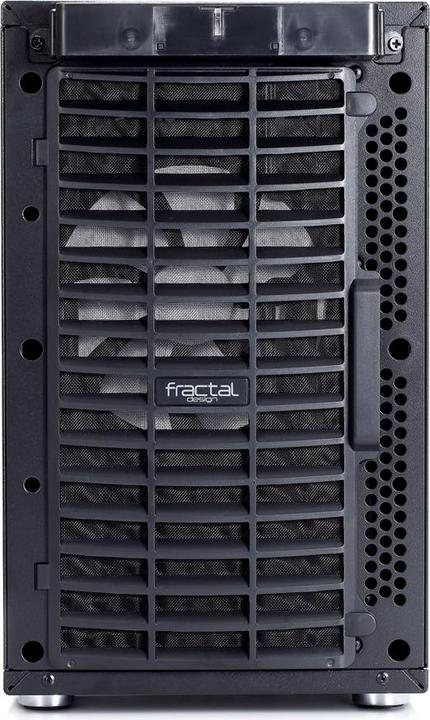

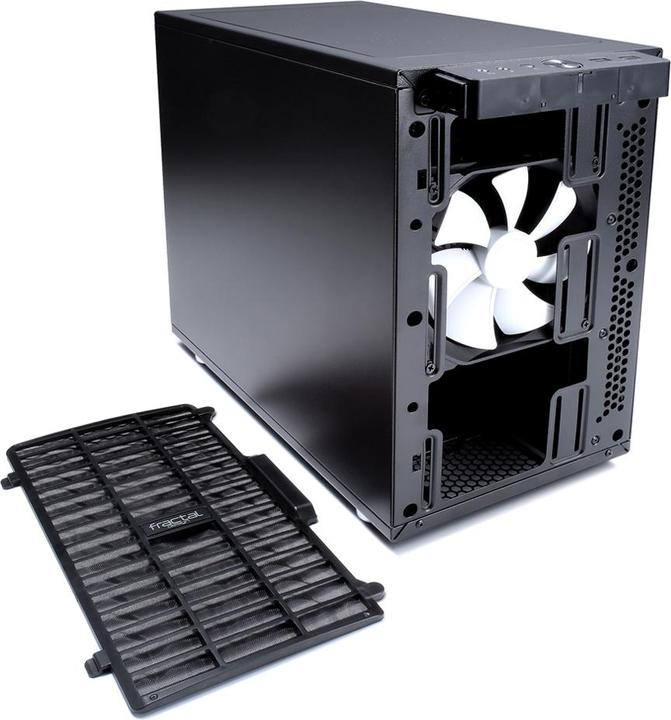

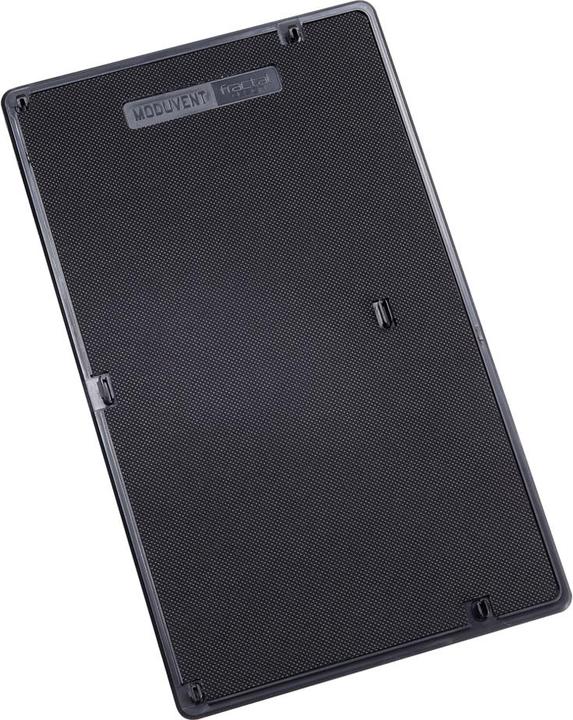

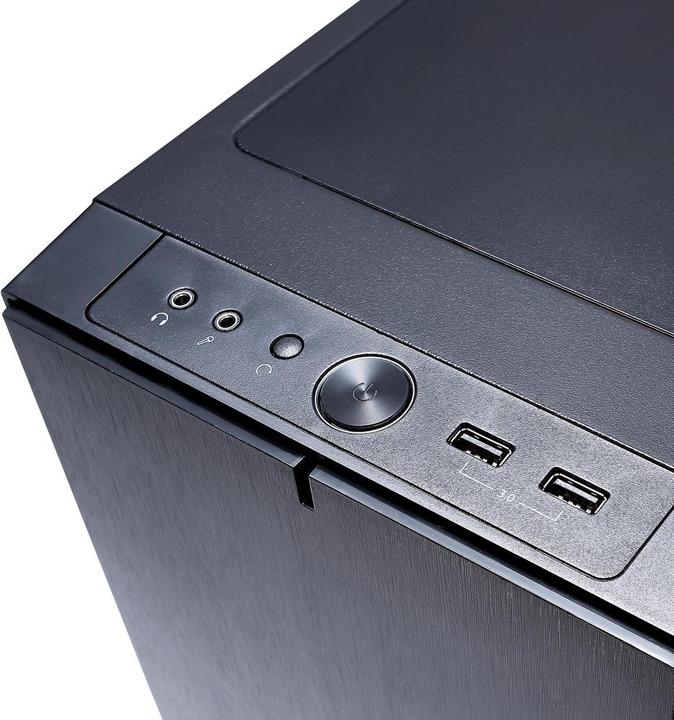

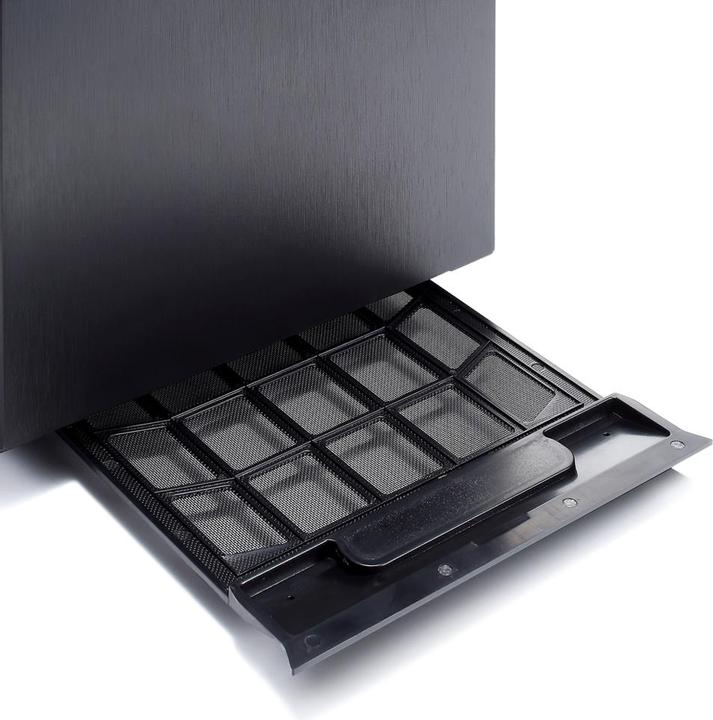

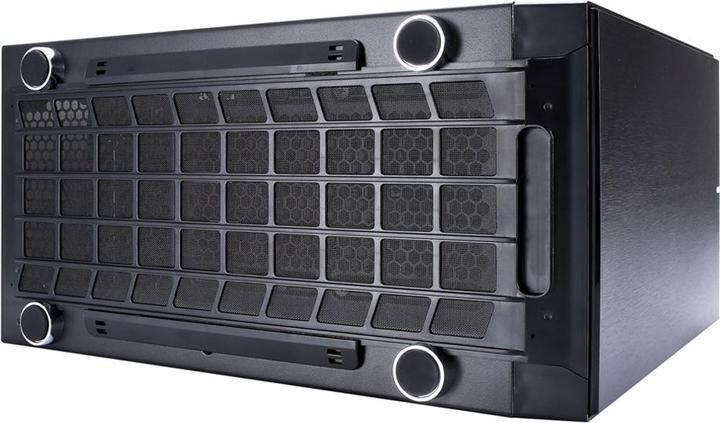

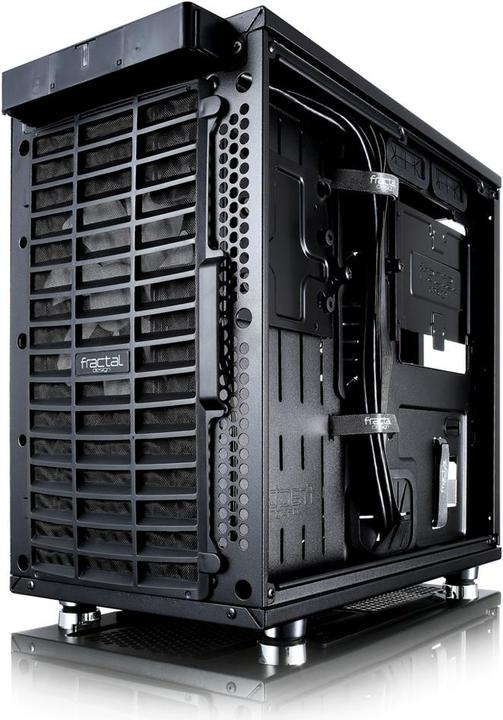

The soundproof plate in the lid can be removed to accommodate additional fans or a radiator in the top. However, the motherboard along with RAM sticks must not exceed 35 mm in height. To effectively and quietly cool the hardware, the case supports the installation of custom water coolers. The Nano S features a base plate for mounting pumps, while reservoirs can be installed on a mounting system in front of the motherboard. A 280 mm radiator with dimensions up to 147 x 312 mm can be installed at the front. Two SSDs can be mounted behind the motherboard tray, and a data storage device (2.5 or 3.5 inches) can be attached via a bracket in front of the two SSDs on the mounting system. An additional HDD or SSD can be installed in front of the power supply on the pump bracket. The controls of the I/O panel are located on the front cover in front of the lid and include two USB 3.0 ports and two audio jacks. After removing the front panel, access to the magnetically attached dust filter is gained. Another dust filter covers the entire bottom and is also removable.
PC case design | Mini Tower |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 5.25"" drive slots" | 0 x |
Max. length graphics card | 315 mm |
Front connectors | Headphones, Microphone, USB 3.0 |
PC case features | Side windows |
Max. height CPU cooler | 162 mm |
Documents | |
Item number | 5698330 |
Manufacturer | Fractal |
Category | PC case |
Manufacturer no. | FD-CA-DEF-NANO-S-BK-W |
Release date | 18.2.2016 |
External links |
Colour | Black |
Exact colour description | Black |
Material | Plastic, Steel |
PC case design | Mini Tower |
Form factor | Mini-ITX, Thin Mini ITX |
"Number of 5.25"" drive slots" | 0 x |
Number of 3.5" drive slots (internal) | 2 x |
"Number of 2.5"" drive slots" | 2 x |
Number of expansion card slots | 2 x |
Max. length graphics card | 315 mm |
Max. height CPU cooler | 162 mm |
Max length of power supply | 160 mm |
PC case features | Side windows |
Front connectors | Headphones, Microphone, USB 3.0 |
Number of fans | 2 x |
Number of fan slots | 6 x |
Fan location | Bottom side, Front side, Rear side, Top side |
Number of radiator mounts | 4 |
Radiator locations | Bottom side, Front side, Rear side, Top side |
Cooling properties | Water cooling possible |
Fans included | 1x 140mm |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 120mm, 1x max. 240mm, 1x max. 280mm, max. 147mm wide, max. 312mm long |
Fans included | 1x 120mm |
Fan mount locations | 1x 120mm |
Radiator mount locations | 1x max. 120mm, max. 125mm wide |
Fan mount locations | 2x 140mm |
Fans included | Optional fan |
Fan mount locations | 1x 120mm |
Radiator mount locations | 1x max. 120mm, max. 160mm long, max. 85mm high |
Fans included | Optional fan |
Fan mount locations | 2x 120mm, 2x 140mm |
Radiator mount locations | 1x max. 120mm, 1x max. 240mm, max. 35mm height |
Fans included | 1x 120mm |
Fan mount locations | 1x 120mm, 1x 140mm |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Installation material |
Height | 34.40 cm |
Length | 41.20 cm |
Width | 20.30 cm |
Weight | 5 kg |
Length | 48.50 cm |
Width | 42.50 cm |
Height | 27.50 cm |
Weight | 5.69 kg |
