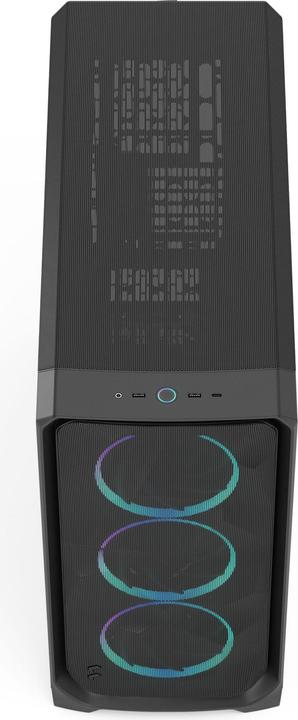

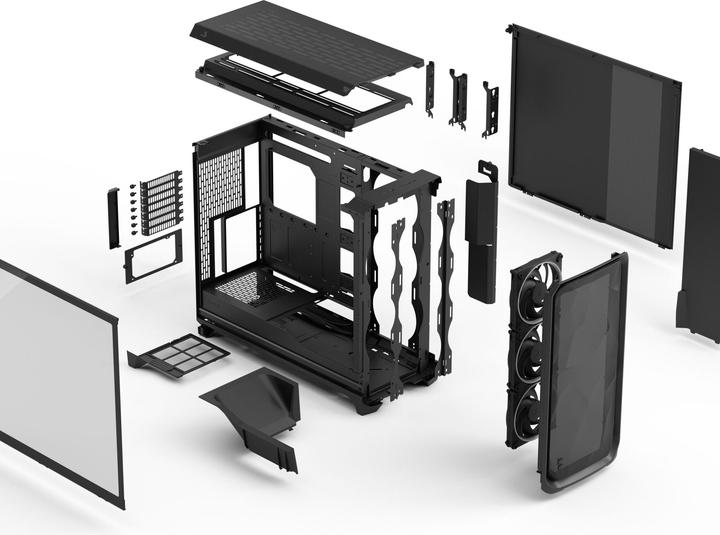

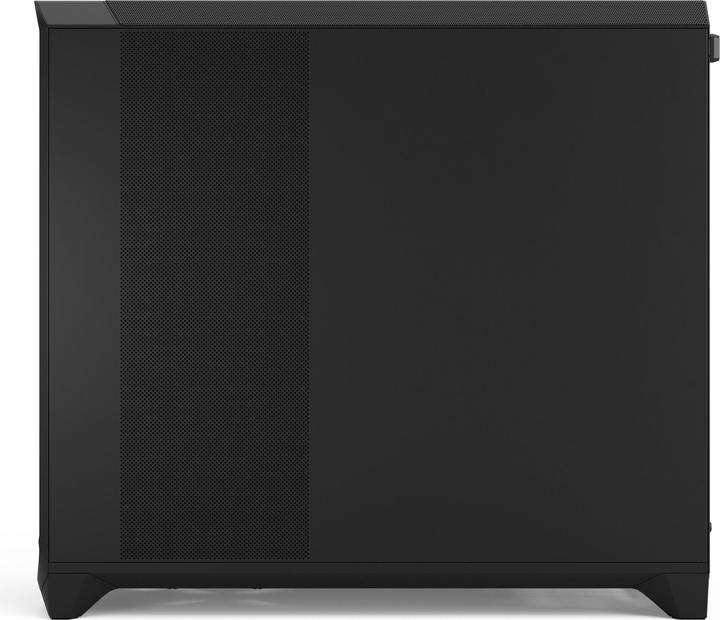

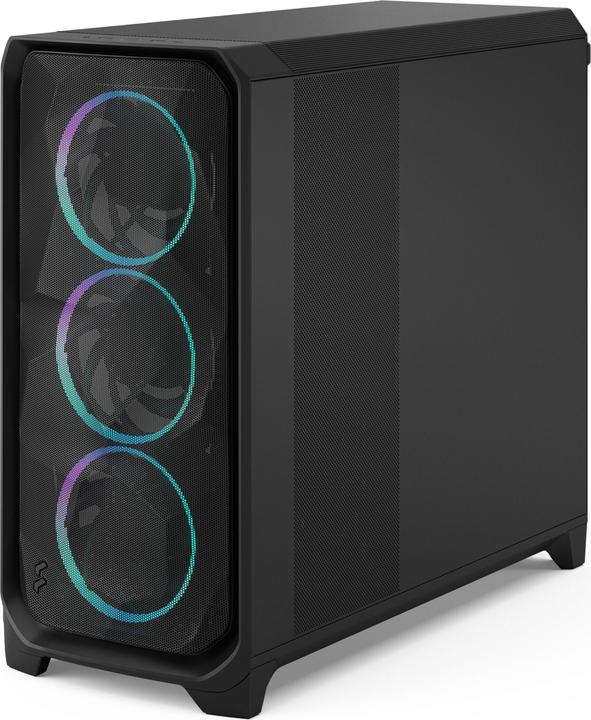

Fractal Case Meshify 3 XL Black RGB TG Light Tint

ITX, SSI CEB, ATX, E-ATX, SSI EEB, mATX
Ratings
Delivered between Sat, 21.6. and Wed, 25.6.
More than 10 items in stock at supplier

Product details

Midi-tower case for motherboards up to E-ATX. Maximum height for CPU cooler is 182 mm, maximum GPU length is 512 mm. Internal slots: 2x 3.5", 5x 2.5". Microphone input, headphone output, 2x USB 3.0, 1x USB-C. Includes 3x Momentum 14 ARGB Gen 2 140mm fans.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
2 x
Max. length graphics card
512 mm
Front connectors
2x USB 3.0, Headphones, USB 3.2
Max. height CPU cooler
182 mm
Item number
53980084

General information

Manufacturer
Fractal
Category
PC case
Manufacturer no.
FD-C-MES3X-04
Release date
13.1.2025

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Glass, Metal
Material
Hardened glass, Steel

PC case properties

PC case design
Midi Tower
Form factor
ATX, E-ATX, ITX, Micro ATX (mATX), SSI CEB, SSI EEB
Number of 3.5" drive slots (internal)
2 x
"Number of 2.5"" drive slots"
4 x
Number of expansion card slots
7 x
Max. length graphics card
512 mm
Max. height CPU cooler
182 mm
Max length of power supply
230 mm
LED colour
Multicoloured

Connections

Front connectors
2x USB 3.0, Headphones, USB 3.2

Cooling properties

Number of fan slots
10 x
Fan location
Front side

Front side

Fans included
3x 140mm

Origin

Country of origin
Sweden

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Instruction manual

Product dimensions

Height
51.50 cm
Length
57.50 cm
Width
24.50 cm
Weight
10.90 kg

Package dimensions

Length
60 cm
Width
35 cm
Height
68 cm
Weight
6 kg

30-day right of return
24 Months Warranty (Bring-in)
