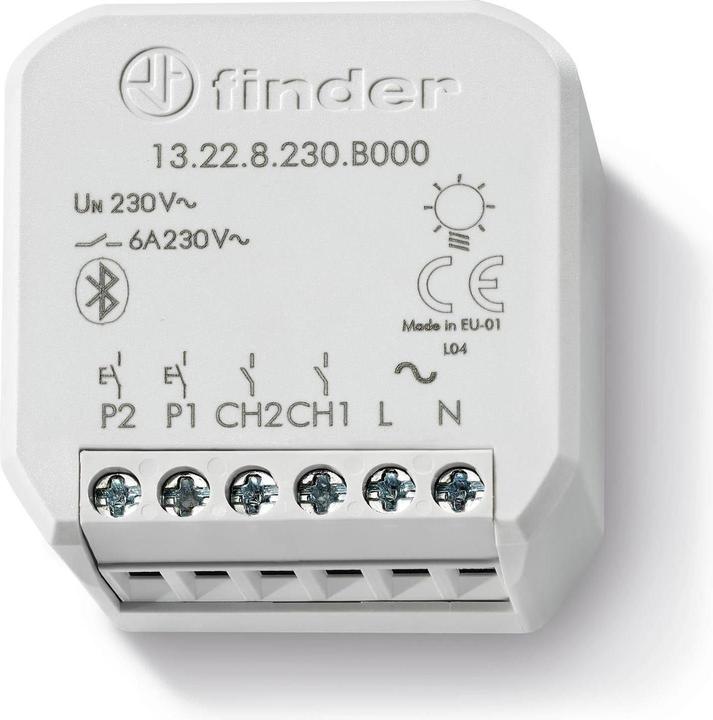

Finder Switch actuator flush 230V 6A multifunction

Switch actuator
Delivered between Wed, 6.5. and Tue, 19.5.
free shipping

Product details

The multifunctional Yesly radio actuator 13.22 covers a wide range of functions and applications and forms the core of the decentralized Yesly home automation solution. Installed invisibly in a flush-mounted box, the device can simulate a monostable relay, a pulse switch, a flasher, a light switch for staircases (with service function and switch-off warning available), or a bathroom light/fan control. Additionally, it includes a fallback delay (which can be ended early with or without a warning function), a timed switch function, and control for lights and doorbells. Programming and integration into the system is done via the Finder Toolbox and app, which is available for free on iOS and Android. Communication is based on mature Bluetooth Low Energy technology and is also 128-bit encrypted. The actuator can be controlled using a smartphone or tablet, the Beyon radio button, or the wall-mounted radio button. The classic option with existing wired switches is also covered through the input terminals for connection. The switching capacity allows for many applications such as lighting, fans, relays, etc.

Key specifications

Actuator type
Switch actuator
Operating voltage
230 V
Mounting type
Flush-mounted
Smart Home Systems
Amazon AlexaGoogle Assistant
communicating
Bluetooth
Items per sales unit
1x

General information

Item number
13170446
Manufacturer
Finder
Category
Actuator
Manufacturer no.
13.22.8.230.B000
Release date
5.5.2020

Colour

Colour
Grey
Exact colour description
Grey

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
200 W
rated current
6 A
Operating voltage
230 V
Number of switching outputs
2x
Mounting type
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart home
Compatible
Smart Home Systems
Amazon AlexaGoogle Assistant
communicating
Bluetooth
Radio frequency
2400000000 Hz
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
31.32 kg
Climate contribution
CHF 0.75

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
44.10 mm
Width
43 mm
Height
21.90 mm
Weight
45 g
