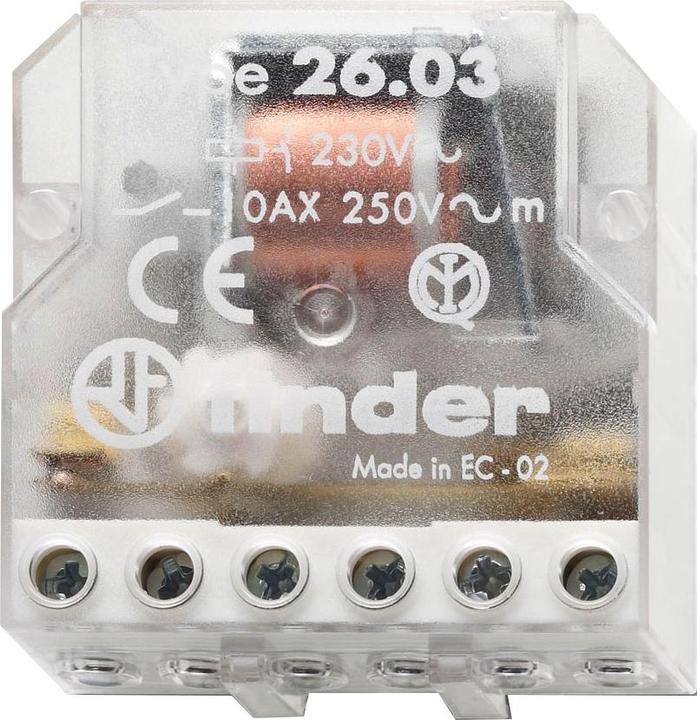

Finder Impulse switch

Finder impulse switch for box 26.03.8.230.0000. Manufacturer: Finder. Name: Impulse switch for box 1S/1Ö 10A 230VAC. Type: 26.03.8.230.0000. Function: Mechanical switch. Mounting type: Flush-mounted. Installation depth: 22 mm. Number of contacts as normally open: 1. Number of contacts as normally closed: 1. Control voltage 1: 230 V. Control voltage type 1: AC. Frequency of control voltage 1: 50 Hz. Rated switching current: 10 A. Supply voltage: 230 V. Voltage type of supply voltage: AC. Max. incandescent lamp load: 800 W. Max. fluorescent lamp load: 400 VA. Max. fluorescent lamp load (duo circuit): 400 VA. Max. fluorescent lamp load (parallel compensated): 400 VA. Fluorescent lamp load (parallel compensated): 360 VA. Max. switching current (cos phi: 0 VA). Max. switching current (cos phi: 0.6): 5 A. Suitable for manual operation: No.

Insulation switch for mounting in flush-mounted box or on chassis, 1 NO contact and 1 NC contact for 10 A / 250 V AC. Max. switching capacities at 230 V AC: AC1 2500 VA, AC15 500 VA, incandescent and halogen lamps 800 W, fluorescent lamps compensated 360 W, fluorescent lamps uncompensated 400 W, energy saving lamps 200 W, LED (230 V AC) 200 W, LV halogen lamps or LED with electronic ballast 200 W, LV halogen lamps or LED with CCG 400 W. Switching sequence: off on/on off. Contact material: AgNi. Coil data: 230 V AC, 4.5 VA, 6250 Ohm. Relay protection class: IP 20. EAN: 8012823281315.
