Exsys Serial device server EX-6131

The EX-6131 is a serial multiprotocol device server designed to connect one serial RS-232 and one RS-422/485 device, including POS systems, barcode readers, sensors, measuring devices, weighing systems, CNC controls, and PLCs, to an IP-based Ethernet network. The serial devices are connected via Ethernet and are available for sharing in the subnet and Internet, with remote configuration possible through various network protocols such as TCP server, TCP client, UDP, VCOM, serial Telnet, RFC2217, Remote-Pair-Master-Slave, and Modbus RTU. To ensure backward compatibility with the serial legacy device running the existing COM port application software, the EX-6131 provides a virtual COM port (VCOM) that perfectly migrates your serial application without modifying the software. Additionally, serial devices can communicate with each other in Remote-Pair-Master-Slave mode using peer-to-peer mode, eliminating the need for an intermediary PC or conversion software.

Interface Port 1: RS-232 V.24 / Port 2: RS-422/485
15 kV ESD surge protection for all serial signals
Data Bits: 5, 6, 7, 8 / Parity: None, Even, Odd, Mark, Space
Signals:
RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, and GND
RS-422: TXD+, TCD-, RXD+, RXD-, GND
RS-485: 2 Wire - Data+, Data-, GND
RS-485: 4 Wire - TXD+, TCD-, RXD+, RXD-, GND
Ethernet Protocol:
TCP Server, TCP Client, UDP, VCOM, Serial Telnet
RFC2217, Remote-Pair-Master-Slave
Modbus Server, Modbus Client
Direct access via socket port
Point-to-point connection, requires no software
Virtual COM software included
Robust metal housing with wall mounting and DIN-rail kit

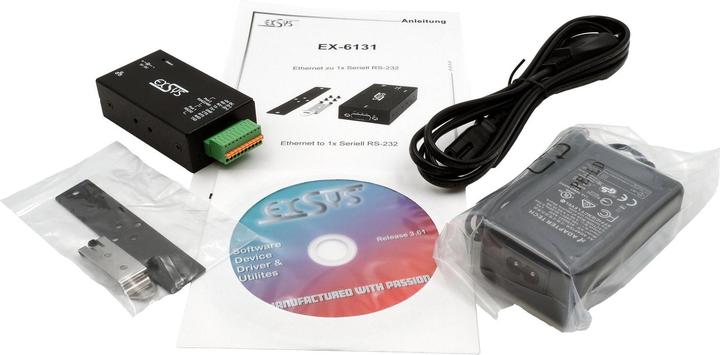

Package contents:
EX-6131, Power supply 5V/4A, DIN-rail kit, wall mounting kit, driver CD, manual.
