Exsys EX-43360 Built-in parallel interface card/adapter

Ratings
BrandMore from Exsys
Delivered between Fri, 10.4. and Sat, 11.4.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

Product details

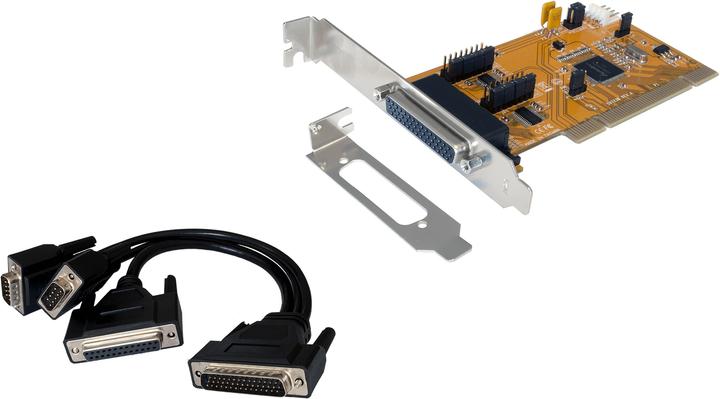

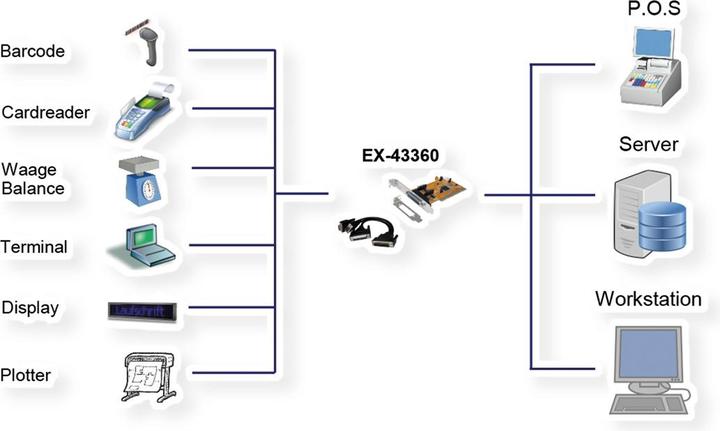

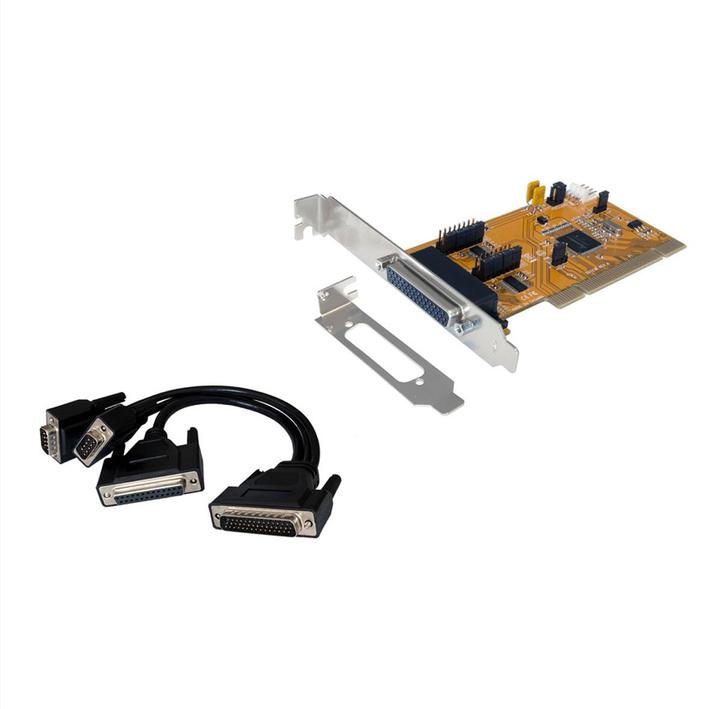

The EX-43360 PCI I/O card provides two serial RS-232 high-performance UART 16C1050 ports and one parallel EPP/ECP output. It is designed to expand two additional serial outputs for PCs, workstations, or servers via the PCI or PCI-X bus. +5V and +12V can be configured on pin 9 of the serial connector (Power over System). The EX-43360 comes with a low-profile bracket, allowing it to be used in narrow cases with a height of 8 cm. The EX-43360 requires only one slot due to the octopus cable.

Serial interface: RS232 V.24 with 16C1050 and 256-byte buffer
Parallel interface: Parallel Centronics EPP/ECP/SPP
±15 kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the system BIOS
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports motherboards with 5V and 3.3V
Chipset: SystemBase 16C1053APCI

Package contents:
EX-43360, octopus cable, low-profile bracket, driver CD, manual.

Key specifications

Expansion card form factor
2 slots
Data ports
RS-232 (1x), RS-232 (2x)
Expansion slot
PCI-X (1x)
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
14270915
Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-43360
Release date
28.4.2017

Controller properties

Expansion card form factor
2 slots

Peripheral port

Data ports
RS-232 (1x), RS-232 (2x)

Internal interfaces

Expansion slot
PCI-X (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
435.56 kg
Climate contribution
CHF 2.14

Product dimensions

Weight
400 g
Width
62 mm
Length
120 mm

30-day right of return
24 Months Warranty (Bring-in)
