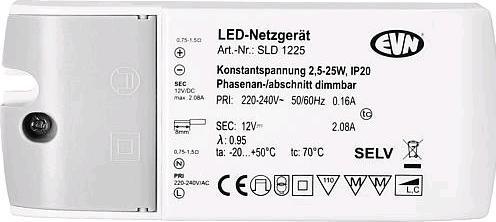

EVN Lichttechnik SLD1225 power supply unit

Manufacturer: EVN Lichttechnik
Designation: Power supply unit 12V/DC 3-25W IP20
Type: SLD1225
Version: Dynamic
Suitable for outdoor use: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming potentiometer (device-integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase cut: Yes
Dimming phase angle: Yes
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with Push-button: No
Constant luminous flux control: No
Without dimming function: No
Housing: Plastic housing
Suitable for constant current: No
Suitable for constant voltage: Yes
Output voltage: 12 V
Output current: 0 mA
Suitable for DC voltage (primary side): No
Output power: 2.5 - 25 W
Protection class (IP): IP20
Protection class: II

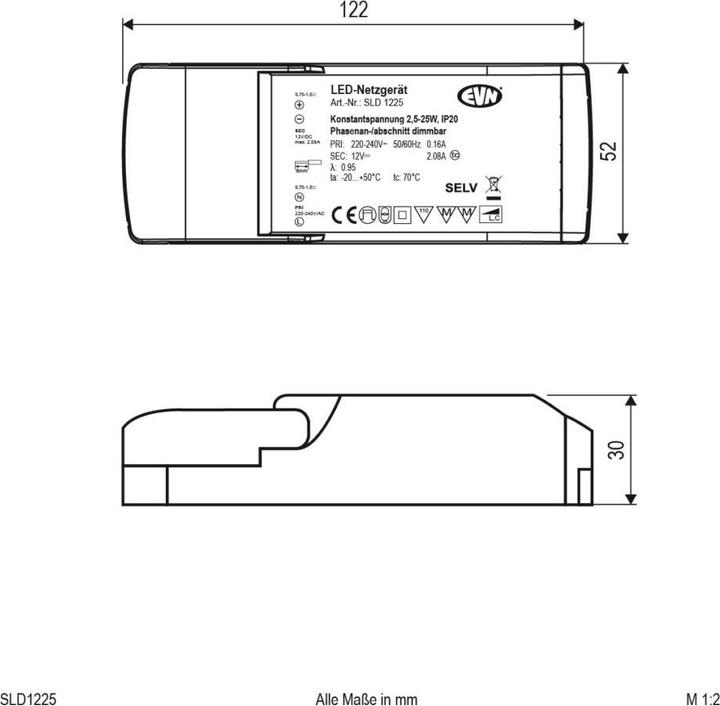

Length: 122 mm
Width: 52 mm
Height: 30 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

The short-circuit-proof safety transformer may only be used indoors, but can also be used in furniture construction, as it is MM-marked. The screw terminals on the primary side are suitable for cables of 0.5-1.5mm² and on the secondary side for cables of 0.75-1.5mm². When using an LED dimmer with a minimum load of max. 3W, the dimming range is 100 - 0%. When using an LED dimmer with a higher minimum load, there may be a reduced dimming range.

Technical data: Supply voltage: 220-240V/AC, ta: -20°C - 50°C, tc: 70°C, power factor: 0.95. EAN: 4037293004862.
