EVN-Lichttechnik LED power supply unit IP20 50-150W SLD24150 ** dimmable phase 24V/DC 210x67x34mm

EVN Lighting Technology LED Power Supply SLD24150

Manufacturer: EVN Lighting Technology
Designation: LED Power Supply 24V/DC dimmable
Type: SLD24150
Execution: dynamic
Suitable for outdoor use: no
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DSI: no
Dimming DMX: no
Dimming Potentiometer (integrated in the device): no
Dimming LineSwitch: no
Manufacturer-specific dimming: no
Dimming mains voltage modulation: no
Dimming phase cut: yes
Dimming phase control: yes
Programmable dimming: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push-button: no
Constant light current regulation: no
Without dimming function: no
Housing: plastic housing
Suitable for constant current: no
Suitable for constant voltage: yes
Output voltage: 24 V
Suitable for DC (primary side): no
Output power: 49.92..150 W
Protection class (IP): IP20
Protection class: II

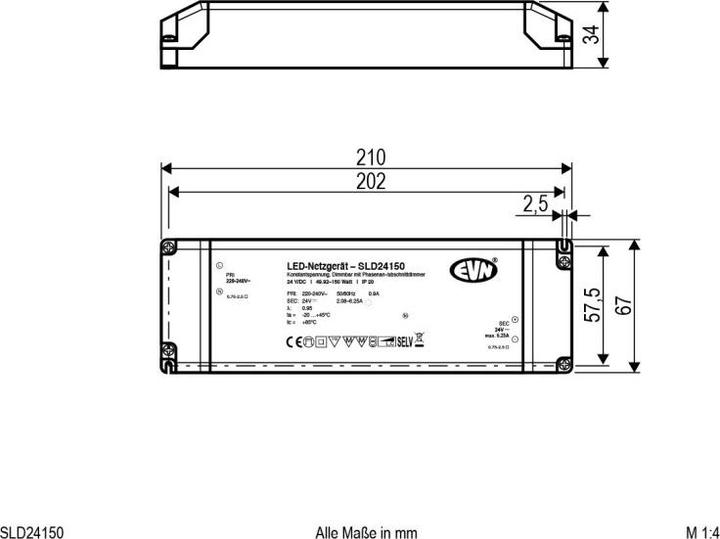

Length: 210 mm
Width: 67 mm
Height: 34 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

The short-circuit-proof safety transformer is intended for indoor use only, but can also be used in furniture construction, as it has the MM marking. The screw terminals on both the primary and secondary sides are suitable for cables from 0.75-2.5 mm². When using an LED dimmer with a minimum load of max. 3 W, the dimming range is 100 - 0 %, and when using an LED dimmer with a higher minimum load, there may be a reduced dimming range.

Technical data:
Supply voltage: 220-240 V/AC
ta: -20 °C - 45 °C
tc: 90 °C
Power factor: 0.95
EAN: 4037293061537.
