EVN LED control gear

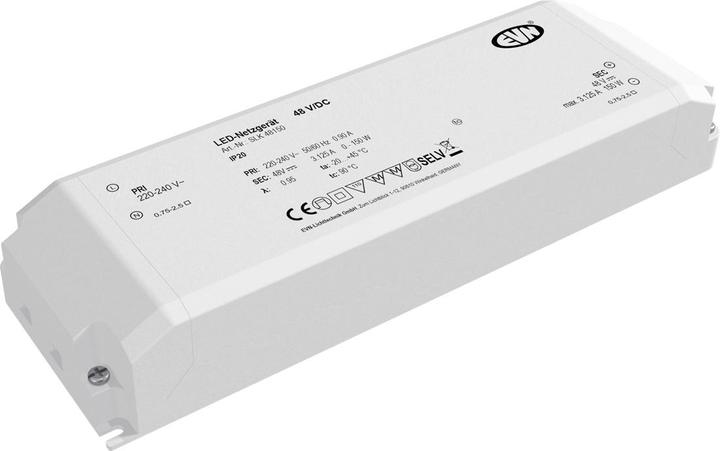

EVN Lichttechnik 48V/DC LED power supply SLK48150

Manufacturer: EVN Lichttechnik
Designation: 48V/DC LED power supply
Type: SLK48150
Version: Static
Suitable for outdoor use: No
Dimming 0-10 V: No
Dimming 1-10 V: No
Dimming DALI: No
Dimming DSI: No
Dimming DMX: No
Dimming potentiometer (device-integrated): No
Dimming GPRS: No
Dimming LineSwitch: No
Dimming manufacturer-specific: No
Dimming mains voltage modulation: No
Dimming phase cut: No
Dimming programmable: No
Dimming RF: No
Dimming Sine Wave Reduction: No
Dimming Touch and Dim: No
Dimming Zigbee: No
Dimming with Push-button: No
Constant luminous flux control: No
Without dimming function: Yes
Housing: Plastic housing
Suitable for constant current: No
Suitable for constant voltage: Yes
Output voltage: 48 V
Suitable for DC voltage (primary side): No
Output power: 0.1 - 150 W
Protection class (IP): IP20
Protection class: II
Length: 210 mm
Width: 68 mm
Height: 35 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

The short-circuit-proof safety transformer can be used in furniture construction without any problems, as the MM marking is given. The connection on the primary and secondary side is made by screw terminals, which are suitable for cables from 0.75 mm² to 2.5 mm².

Technical data:
Supply voltage: 220-240 V/AC
Ambient temperature: -20°C to 45°C
Case temperature: 90°C
Power factor: 0.95
EAN: 4037293061315.
