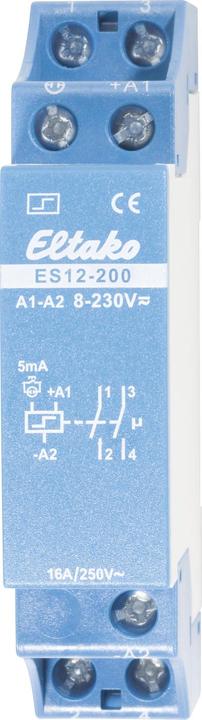

Eltako Impulse switch

2 potential-free relays, 16A/250V AC, suitable for 230V LED lamps up to 200W and incandescent lamps up to 2000W. No standby loss. Rail-mounted device for installation on DIN-EN 60715 TH35 mounting rails. 1 division unit = 18mm wide, 58mm deep. Either universal control voltage 12-230V UC at the control input +A1/-A2 or 230V with up to 5mA glow lamp current at the control input (L)/-A2(N). The simultaneous use of two potentials at the control inputs is not permitted. Very low switching noise. No continuous power supply required, hence no standby loss. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. By using a bistable relay, there is no coil loss and no heating even when switched on. The relay contact can be either open or closed at startup and synchronizes on the first activation. The terminal connection layout is identical to that of the electromechanical pulse switch S12-200-. Maximum current as a sum over both contacts is 16A at 230V. If this pulse switch is in a circuit monitored by a field disconnector, no additional base load is required, but the monitoring voltage must be set to maximum. The electronics have no independent power supply and therefore consume no power in either contact position. Only during the short control pulse of just 0.2 seconds does the control current flow, activating the microcontroller. It reads the last switching state from its non-volatile memory, switches the bistable relay accordingly in the opposite direction, and writes the new switching state back to the memory.
