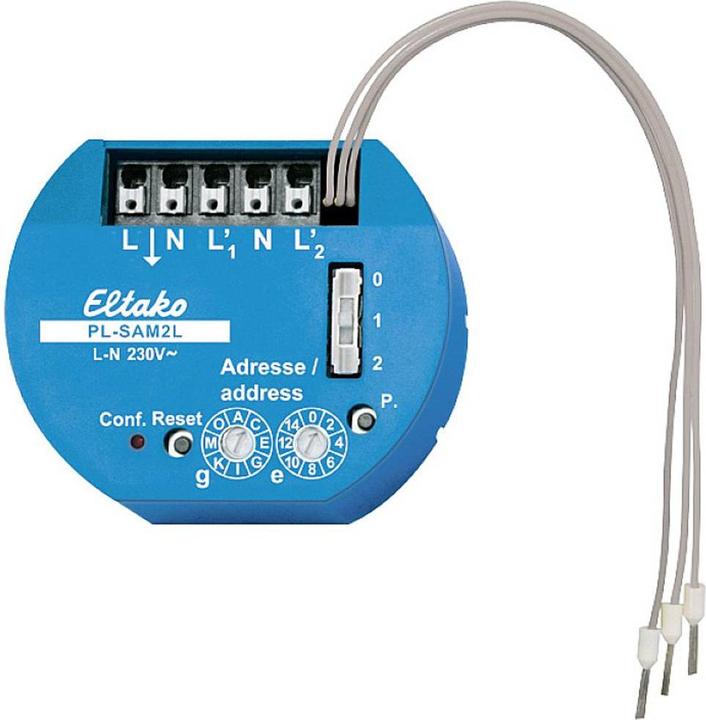

Eltako ELT PL-SAM2L Powerline actuator 2 channels

Powerline actuator with 2 channels. Dimensions: 53 x 43 mm, 25 mm deep, designed for installation in 58 mm switch boxes. Usable as a pulse switch or relay. 1+1 normally open contacts, not potential-free, rated for 5 A/250 V AC, incandescent lamps up to 1000 watts. 2 sensor inputs with internal low voltage. Standby loss is only 0.5 watts. For controlling and switching at the same location. Only use potential-free switching elements. Internal low voltage at the sensor inputs. For address assignment, there are two rotary switches on the front: The left rotary switch sets the group address g with 16 alphabetical values from A to P. The right rotary switch sets the element address e with 16 numerical values from 0 to 15. Above these is a slide switch serving as a configuration switch with positions 0, 1, and 2. Position 0: Sensor inputs act as push buttons (pulse switch). Position 1: Sensor inputs act as normally open contacts (relay). Position 2: Sensor inputs act as normally closed contacts (relay). Through the PC software SIENNA-Professional, access to all entries and configurations can also be made via the power line. This allows for an additional configuration that is not available through the rotary switches: Position 3: Sensor input acts as normally closed contact (inverted relay). To the left of the rotary switches is a red LED that indicates all activities. Next to it is the reset button and to its right is a service pin. Functions as per the user manual. The terminal blocks above are plug terminals for conductor cross-sections from 0.2 mm² to 1.5 mm². Next to them are three wires with ferrules for the two control inputs with internal low voltage.
