Product details
Position your graphics card with water cooler vertically. Suitable for cases with at least four to six slot height. For graphics cards with a maximum height of three slots. Backward-compatible 4th generation riser cable. Long flat ribbon cable for clean cable management.

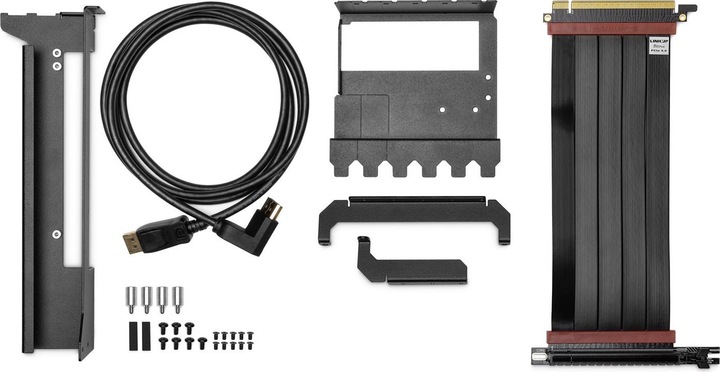

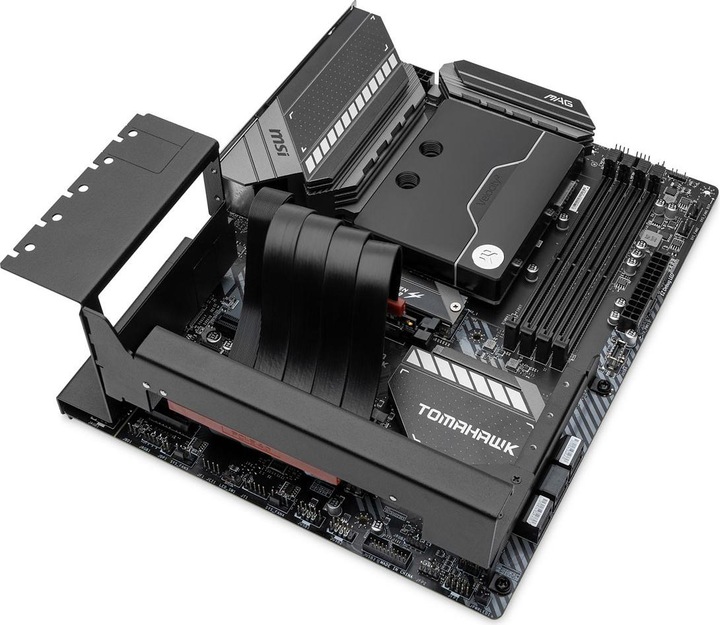

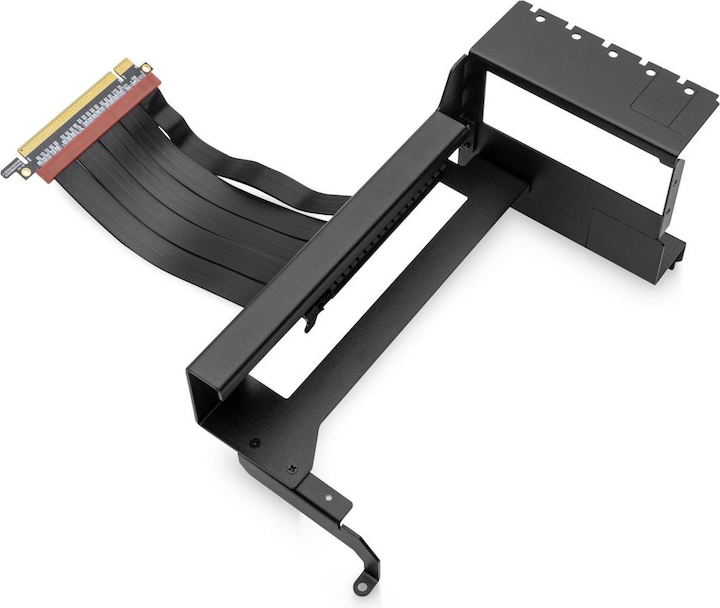

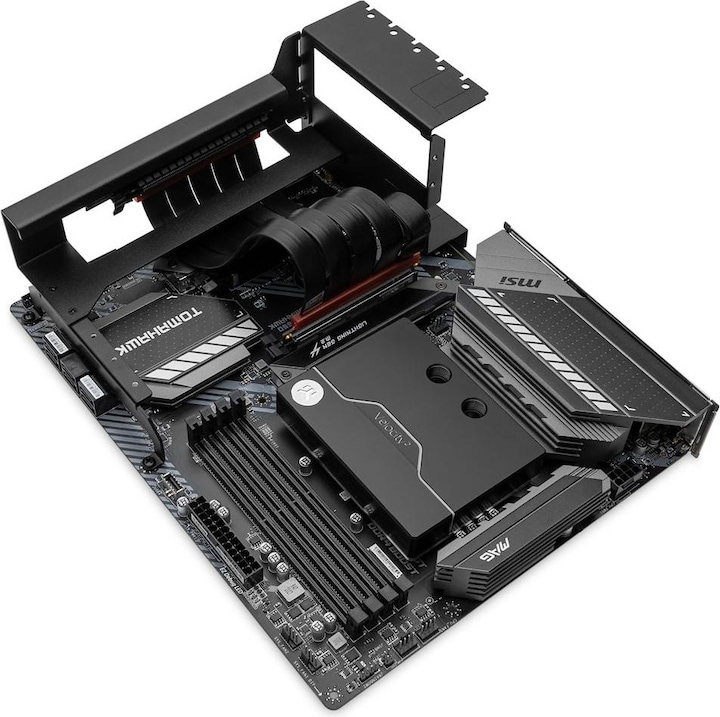

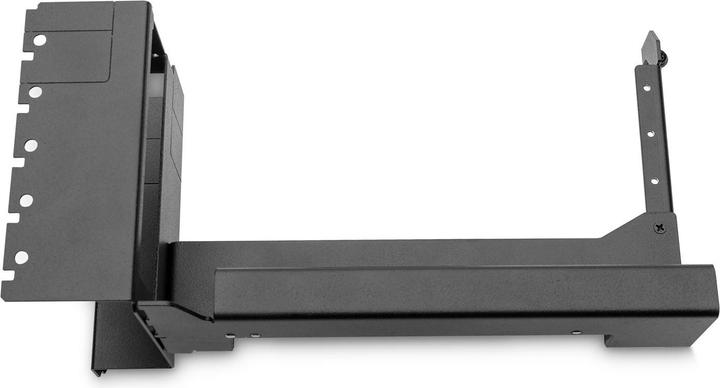

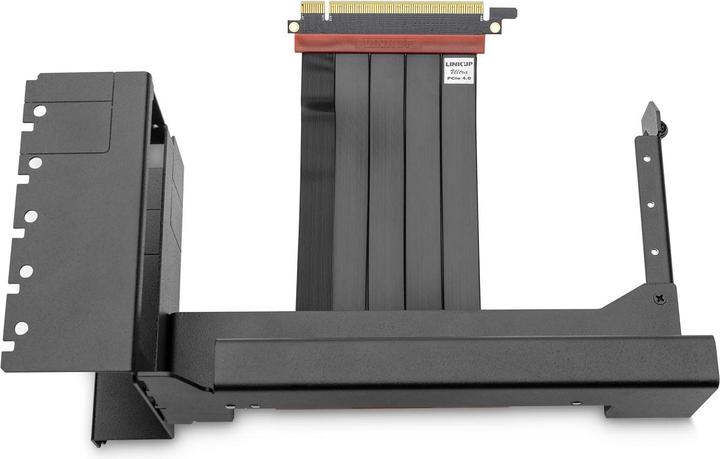

The EK Water Blocks EK-Loop Vertical Graphics Card Holder EVO (Shifted) in detail: With the black vertical graphics card holder EVO (Shifted) from EK Water Blocks, a graphics card can be installed vertically in a tower case. It consists of a PCIe riser cable and a special PCI slot bracket. The adapter bracket is mounted slightly offset at the PCI slots of the case. At least four to six PCI slots should be free for installation, and the graphics cards must not exceed a height of three slots.
The riser cable connects the graphics card to the PCIe slot on the motherboard. Its x16 slot is electrically connected with a full 16 data lanes, providing the full bandwidth for graphics cards. A 20 cm long, flexible flat ribbon cable is used for data transmission. The small board with the PCIe x16 card slot is secured to the graphics card holder with two screws.

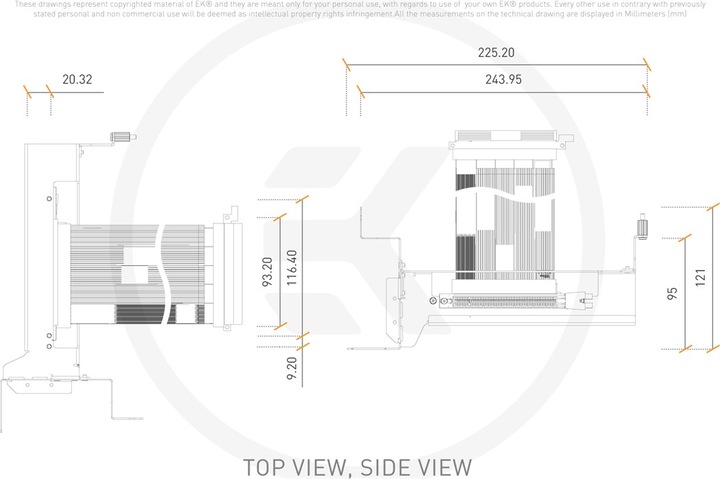

Technical details:
- Material: Steel (powder-coated)
- Color: Black
- Cable length: 200 mm
- Connectors: Plug: PCIe with 16 lanes, Socket: PCIe with 16 lanes angled at 90°
- Supported PCI Express standards: 1.x, 2.x, 3.0, 4.0
- Maximum height of the graphics card: 3 slots.
