Product details

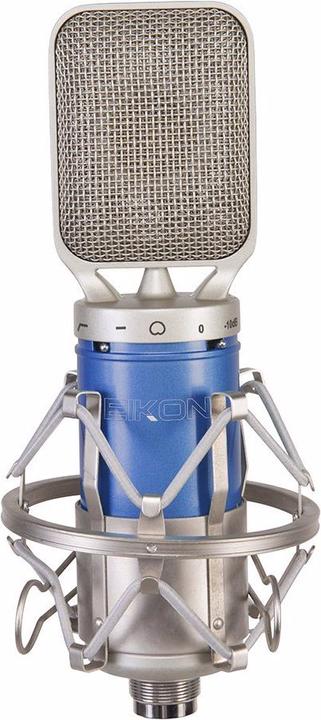

Large diaphragm studio condenser microphone

  • Transparent sound with excellent detail and warm tonal content
  • Extended frequency response in the lower range
  • High-pass filter and -10dB pad
  • WIMA capacitors
  • Suspension shock absorber included

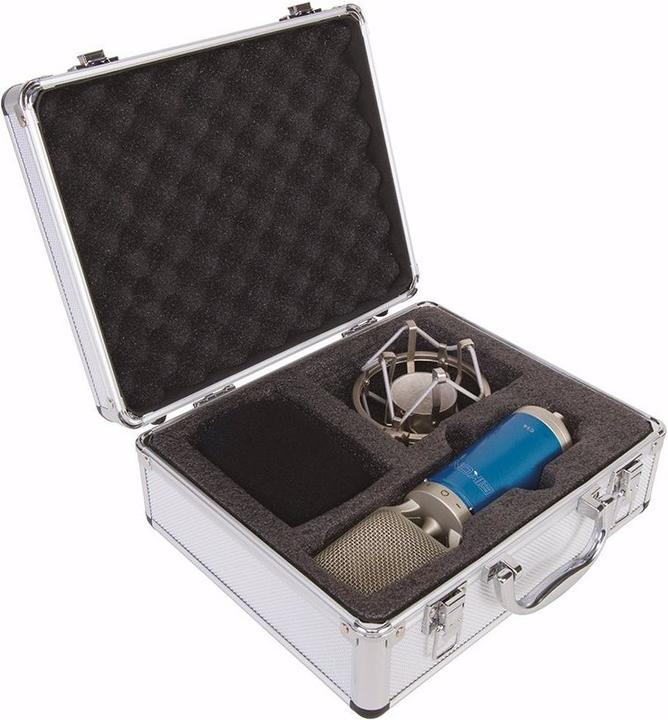

  • Transport case and pop filter included

Technical description:

Type: Pressure gradient condenser transducer

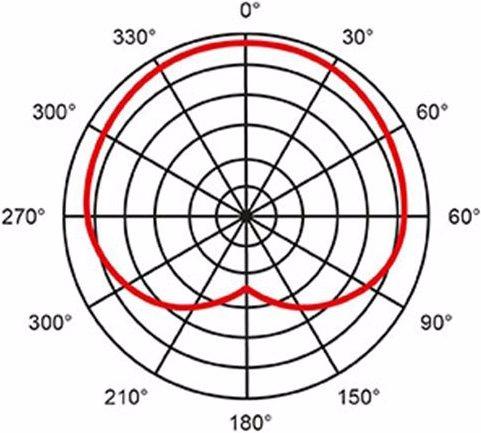

Directional characteristic: Unidirectional

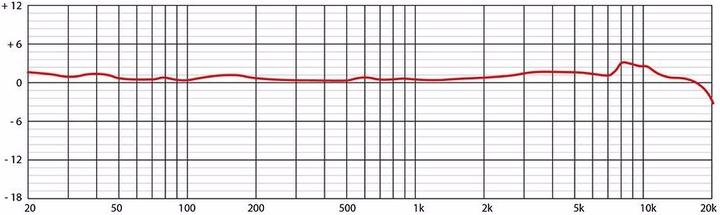

Frequency response: 20 Hz - 20 kHz
Sensitivity: -35dB ± 2dB (0 dB=1vPa @ 1kHz)
Max SPL for 1% THD: 140 dB
S/N ratio: 80dB
Impedance: 100 Ω ± 30% (at 1kHz)
Recommended load impedance: 1000
Inherent noise: 14 dB A
Filter: High pass 100Hz 12dB/oct
Pad: 0 / -10dB
Power requirements: Phantom power 48 Volt DC
Connector: 3 pin XLR connector
Weight: 393 g
Dimensions: 50.5 Ø x 152 mm
Current consumption: 3 mA
Accessories: Shockmount included.

Key specifications

Microphone type
Studio microphone
Microphone Application
Studio
Item number
17828090

General information

Manufacturer
Eikon
Category
Microphones
Manufacturer no.
PR C14
Release date
10.12.2021

Microphone properties

Microphone type
Studio microphone
Microphone Application
Studio
Converter principle
Capacitor
Sensitivity
2 dB
Impedance
100 Ω (ohm)
Self-noise
14 dB(A)
Output power
1000 dB
Frequency range
20 - 20 Hz

Power supply

Power supply
Phantom Power Supply

Battery properties

Voltage
48 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Transport case and pop filter included.

Product dimensions

Length
152 mm
Width
50.50 mm
Diameter
50.50 mm
Height
152 mm
Weight
393 g
