Efest

A powerful battery cell developed by Efest, made from a safe chemical composition (Lithium-Manganese). The manganese does not react with lithium, which gives these cells a high level of inherent safety.

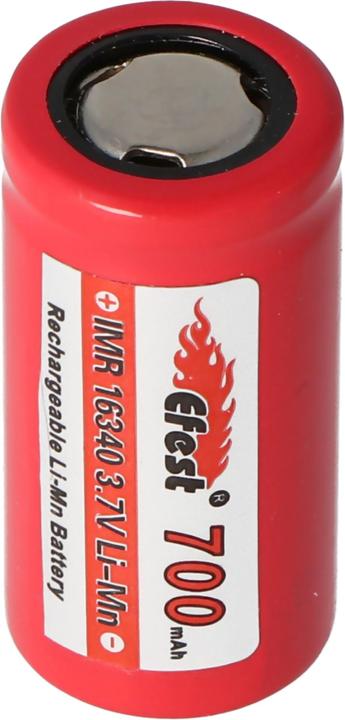

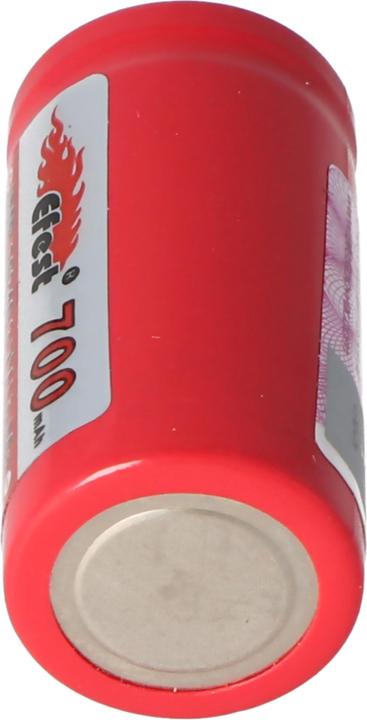

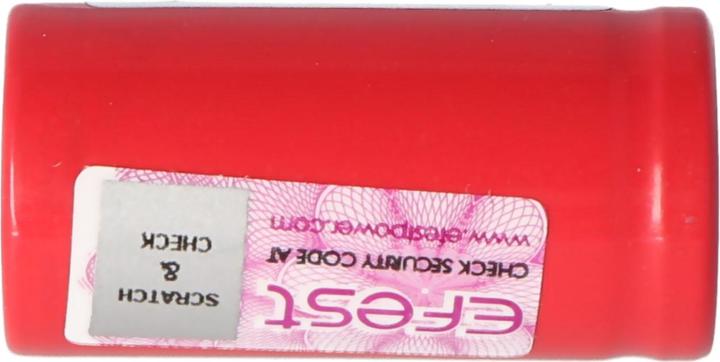

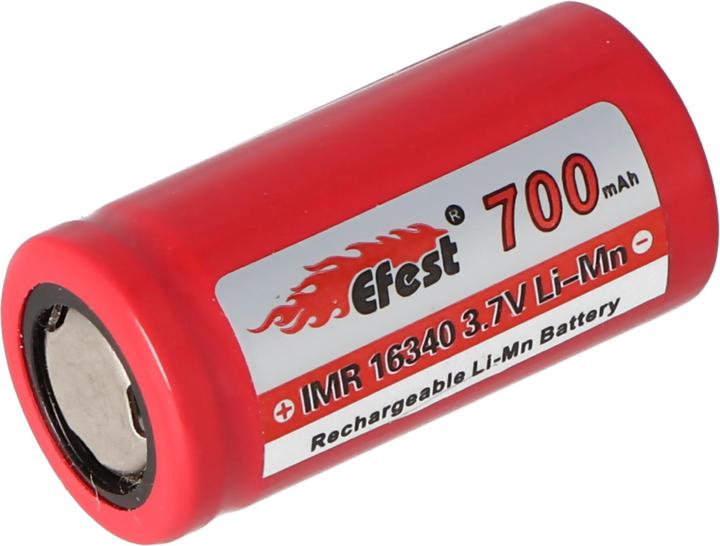

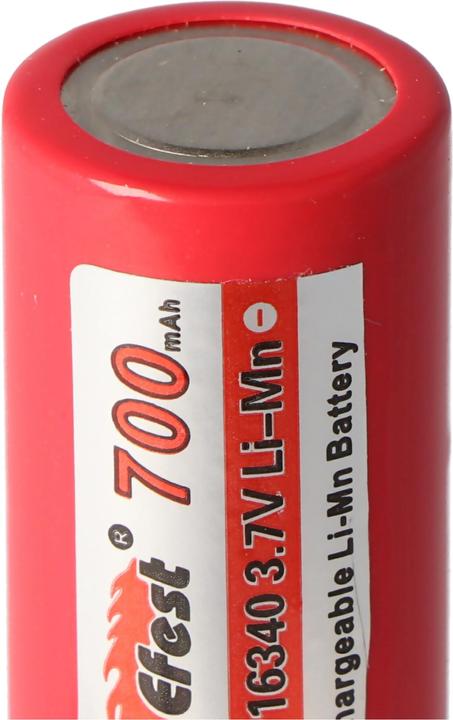

Efest IMR 16340 V1 (Flat Top)
Capacity: 700 mAh
Nominal Voltage: 3.7 V
Charge Termination Voltage: 4.2 V ± 0.05 V
Discharge Termination Voltage: 2.5 V
Positive Terminal: flat (Flat Top)
Chemistry: LiMn (IMR)
Protection Circuit PCB: none
Diameter: 16.60 mm ± 0.3 mm
Height: 33.80 mm ± 0.5 mm
Weight: 18 g ± 1 g
Manufacturer: Efest

Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Efest IMR16340 V1 - 700 mAh 3.7 V (Flat Top) Li-Ion Battery":
Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged beyond a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advisable to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging. However, inexpensive chargers may have the disadvantage of not safely shutting off after the charging process is complete, continuing to charge the batteries with a small current, which can be dangerous. Furthermore, batteries and accumulators should not be disposed of in household waste! Please dispose of them as required by law.
