Product details
A high-performance high-drain cell developed in collaboration with Efest, made from a safe chemical composition (Lithium-Manganese). The manganese does not react with lithium, which gives these cells a high level of intrinsic safety. Specifically designed for battery carriers and flashlights.

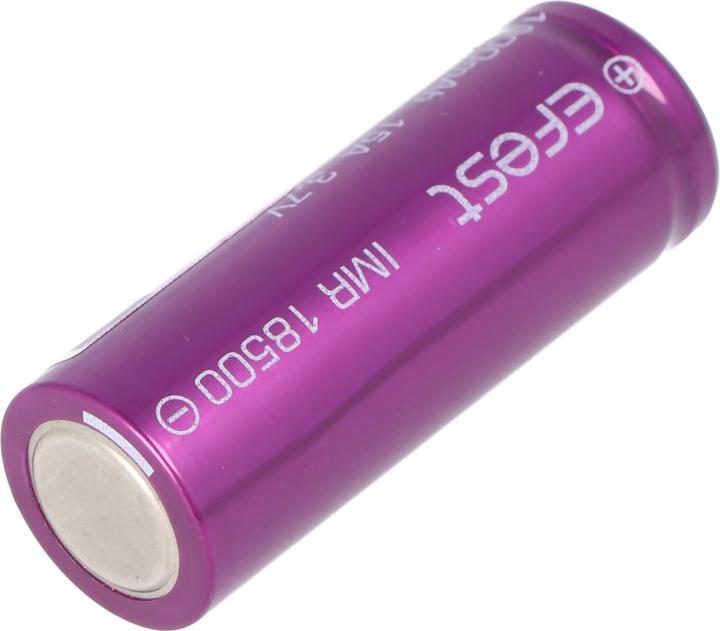

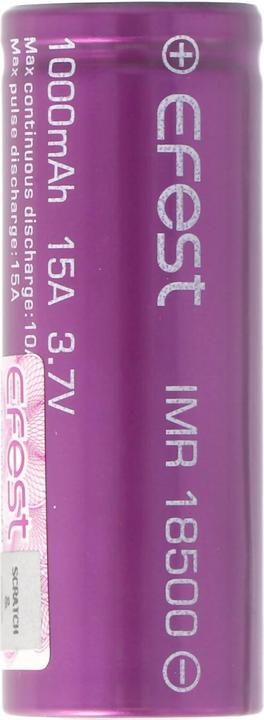

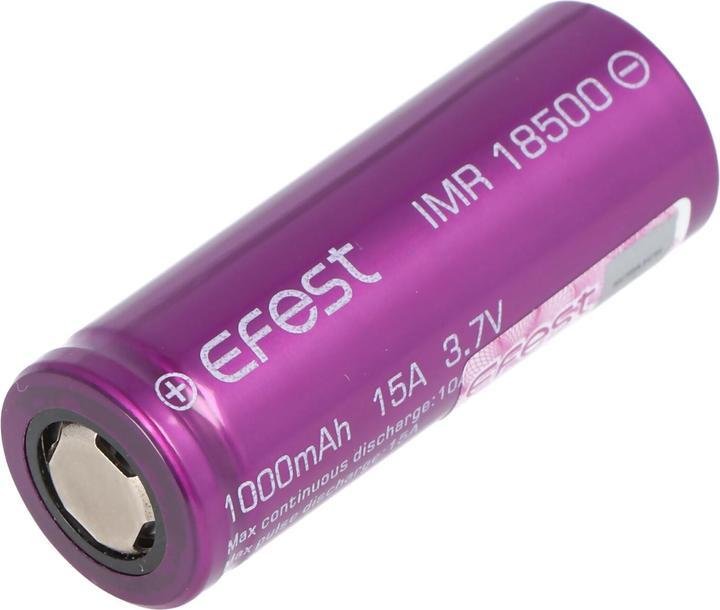

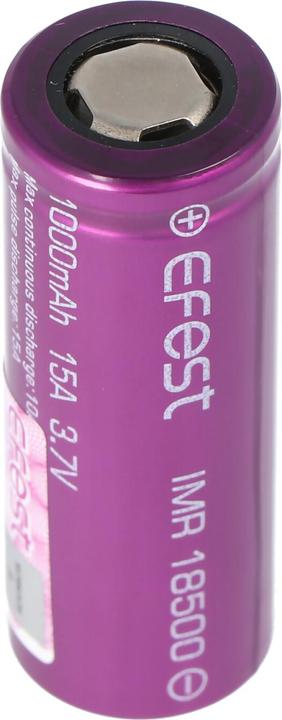

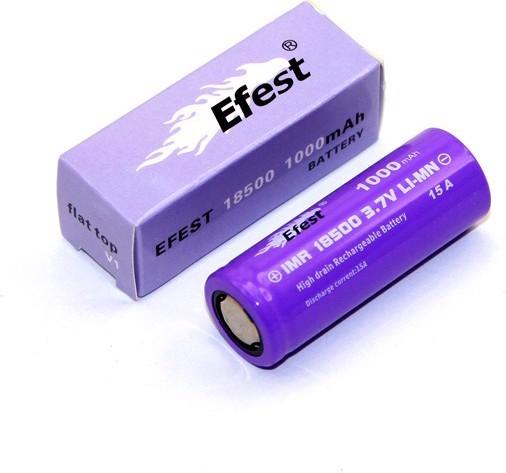

Efest Purple IMR18500 Li-Ion Battery (Flat Top, unprotected)
Capacity: 1000mAh
Min. Capacity: 1000mAh
Nominal Voltage: 3.7V
Charge Termination Voltage: 4.2V ± 0.05V
Discharge Termination Voltage: 3.0V
Max. Discharge Current: 15A (15C)
Max. Charge Current: 1A (1C)
Positive Terminal: Flat (Flat Top)
Protection: None
Chemical Composition: LiMn (IMR)

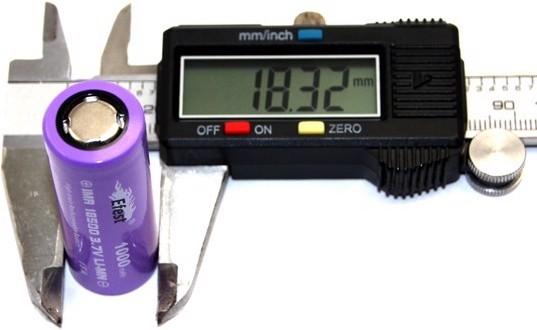

Diameter: 18.30 mm ± 0.1 mm
Height: 49.80 mm ± 0.1 mm
Weight: 40 g ± 1 g
Charging Method: CC-CV
Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short-circuiting can lead to fire or explosion.
Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by a high energy density.
Technical Data for "Efest Purple IMR18500 - 1000mAh 3.7V (Flat Top, unprotected)"
Normal Charge Current: 100mA/3h
Operating Temperature Charging: 0 °C - 45 °C
Operating Temperature Discharging: -20 °C - 60 °C
Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially up to double).
Battery type | Li-ion |
Battery Application | AA battery |
Voltage | 3.70 V |
Item number | 13101457 |
Manufacturer | Efest |
Category | Batteries |
Manufacturer no. | AKT-100508 |
Release date | 19.4.2020 |
Battery Application | AA battery |
Battery size | 18500 |
Voltage | 3.70 V |
Battery type | Li-ion |
Battery capacity | 1000 mAh |
Rechargeable | Rechargeable |
CO₂-Emission | |
Climate contribution |
Height | 49.80 mm |
Diameter | 18.30 mm |
Weight | 40 g |
