EFB Elektronik Patch cable

S/FTP, CAT6a, 30 m
CHF1.49/1m
2Ratings
BrandMore from EFB Elektronik
Delivered between Wed, 15.10. and Wed, 29.10.
Free shipping starting at 50.–

Product details

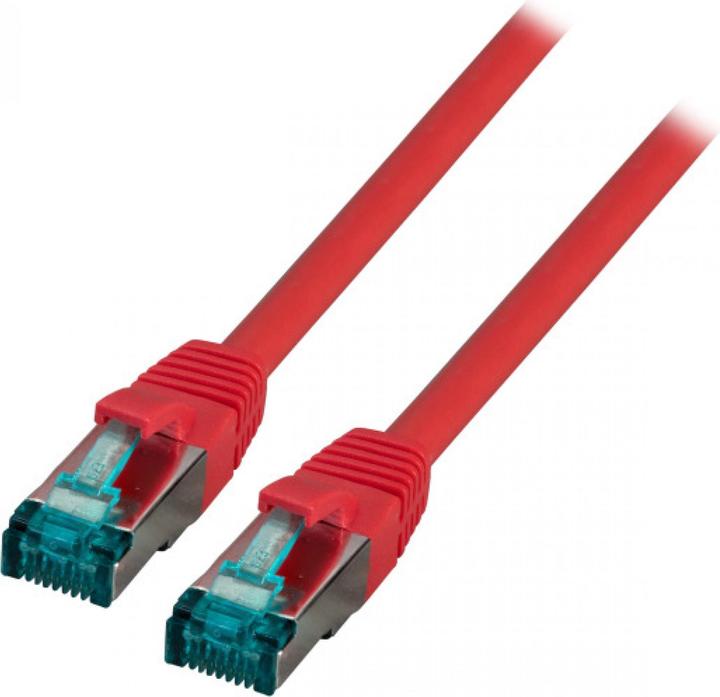

RJ45 Patch Cable Cat.6A S/FTP LSZH

The Cat.6A (TIA) patch cable features gold-plated contacts and supports a transmission standard of 10 Gbit Ethernet.

Technical Product Features:

  • Cat.6A (TIA) S/FTP cable with AWG27/7
  • Jacket material made of halogen-free LSZH
  • Fire protection: flame-retardant, halogen-free, low smoke
  • Connector: RJ45 to RJ45 with latch lever protection
  • Equipped with gold-plated contacts

The jacket of the shielded patch cable is made from halogen-free LSZH material and has a length print on the boot. Additionally, the cable offers power supply options through PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt.

The wiring of the green RJ45 connectors is 1:1 and follows TIA/EIA 568B standards. Suitable for a temperature range of -20 to 60 °C. The LAN cable features copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet, and data centers. A frequency range of 500 MHz is achieved.

Key specifications

Patch cable type
Copper cable
Contact assignment
straight
Item number
15442536

General information

Manufacturer
EFB Elektronik
Category
Network cables
Manufacturer no.
MK6001.30R
Release date
25.3.2021

Colour

Cable colour
Red

Material

Material
Low-smoke halogen-free (LSZH)
Material of the isolation
LSZH

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable design
Round
Plug type
Flat
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
27
Frequency
500 MHz
Temperature range
-20° - +60° C

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Halogen-free, Slim
Max. data transfer rate
1.25 GB/s

Twisted-pair cable properties

Cable category
CAT6a
Contact assignment
straight
Shield
S/FTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1

Product dimensions

Diameter
6 mm
Length
30 m
Width
6 mm
Depth
30000 mm

30-day right of return
24 Months Warranty (Bring-in)
