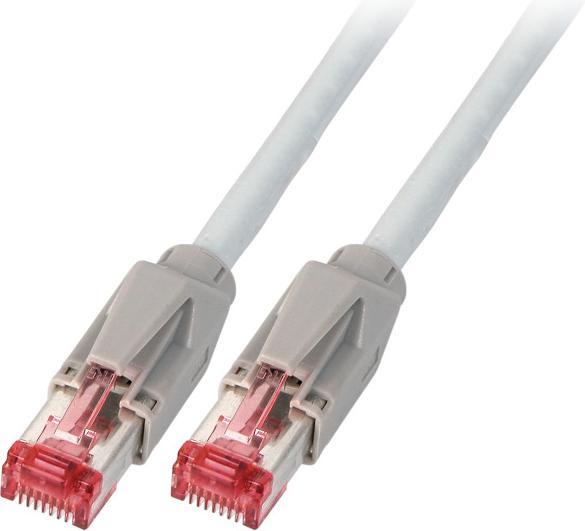

EFB Elektronik Patch cable
S/FTP, CAT6a, 10 mIn Detail
Custom-made, non-cancellable. Product information: The Cat.6A RJ45 patch cable manufactured in Europe ensures excellent performance for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable Patch Pro flex Cat 7 from Draka and TM31 connectors from Hirose. With its PUR outer sheath, the patch cable is also suitable for outdoor use (except for direct burial).
Cross-section: 4 x 2 x AWG26/7. Assembled with a bend protection sleeve. Product features: Category 6A (TIA). Connector type for connection 1: RJ45 8(8). Connector type for connection 2: RJ45 8(8). Connector type: TM31, yellow. Cable type: Draka Patch Pro flex Cat 7. Contacts: Gold-plated µ" gold plated. Pin assignment: 1:1, wiring according to TIA/EIA 568B. Design: Shielded. Bend protection sleeve attached. Color of the bend protection sleeve: black. Latch lever protection: Yes. Plug cycles: 750. Bending radius: 25 mm. Shield contact termination: 360°. Shield attachment: Raw cable Cat.7. Cable structure: S/FTP. Cable construction: 4x2 AWG cross-section/strands per conductor: 26/7. Conductor material: Copper. Sheath material: PUR. Sheath color: black. Outer diameter of the cable: 6.4 mm. UV resistant: Yes. Temperature range (operation): -20 to 60 °C. Temperature range (installation): 0 to 50 °C. NVP value: 75 %. Impedance: 100 ±5 Ω. Loop resistance: 250 Ω/km. Resistance asymmetry: 2 %. POE class: PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, 4P PoE according to IEEE802.3bt. Bandwidth: 500 MHz. Transmission: 10 Gbit. Connector: IEC 60603-7-51.
