Eaton XV100-BOX-E4-DC1 198514 Starter kit PLC

Ratings
BrandMore from Eaton
Delivered between Tue, 27.5. and Fri, 6.6.
Only 1 item in stock at third-party supplier
Supplied by

Product details

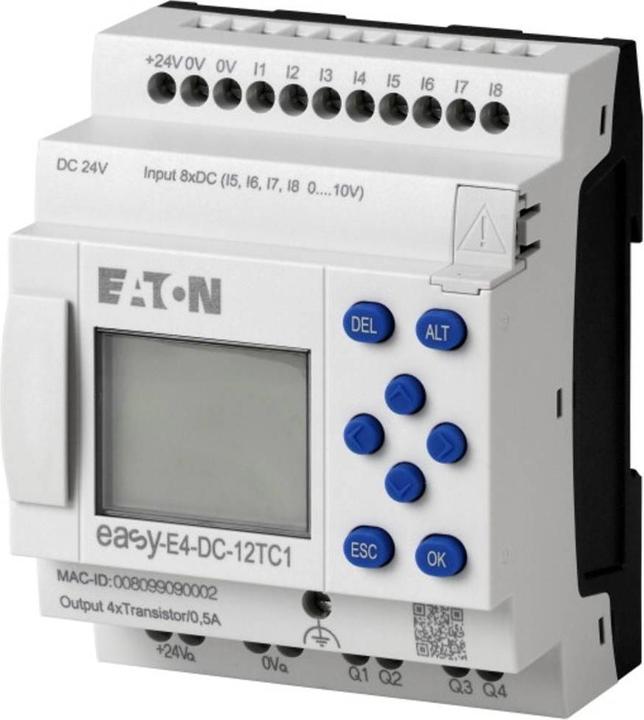

EasyE4 Base Unit: The easyE4 control relay offers a solution for anyone looking to implement control and regulation tasks with minimal effort. The easyE4 features powerful hardware and allows for flexible expansion with up to 11 modules, providing a maximum of 188 inputs and outputs.

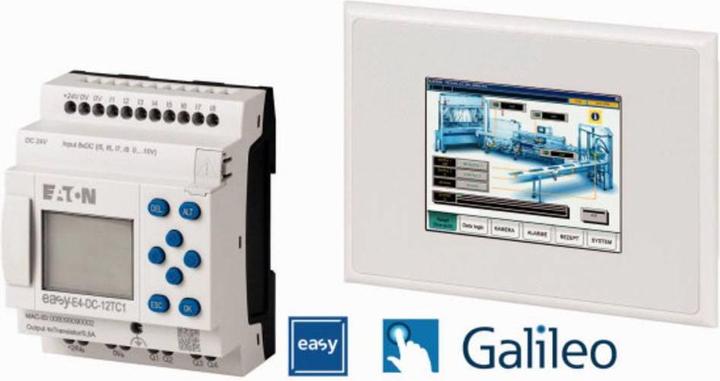

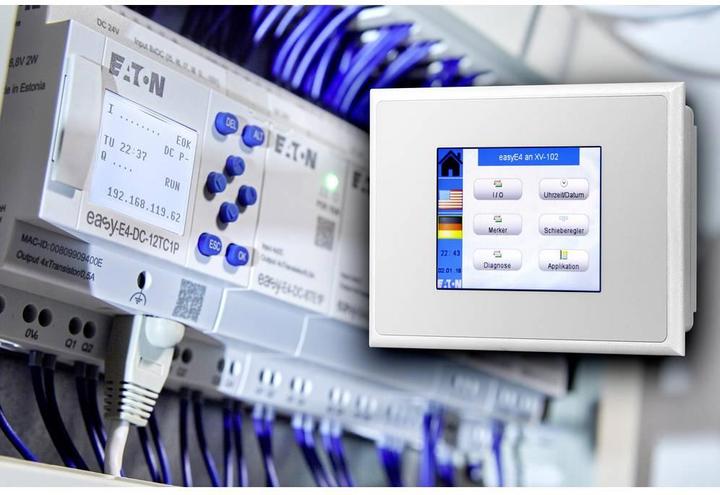

XV100 HMI Touch Panel: The XV100 touch panel perfectly complements the easyE4 product line. Projects created with the control relay series can be conveniently visualized outside the control cabinet using the compact touch panel. For easyE4 users, this means quick access to machine status and easy adjustment of parameters.

License easySoft V7: The intuitive easySoft software enables a quick start into programming. In version 7, users have access to four different programming languages (Ladder Diagram, Function Block Diagram, Structured Text, Instruction List). In addition to clear selection menus, simulation capabilities, and online communication, easySoft 7 offers new function blocks such as the interrupt and data logger, ensuring comfortable and reliable operation.

Ethernet Switch and RJ45 Patch Cable: With the Ethernet switch and network cable, your easyE4 is ready to go and can be integrated into Ethernet networks.

EasyE4 Flyer: The most important information about the easyE4 at a glance.

Key specifications

input voltage
24 V
Scope of delivery
24 V DC, 8 digital inputs, 4 outputs (transistor) XV100 touch panel, 3.5" software licence for easySoft V7 Ethernet switch, 4-port RJ45 patch cable easyE4 flyer, Control relay easyE4, 24 V AC, 12
Output voltage
24 V
Relay type
Installation relay
Item number
30539092

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
198514
Release date
19.4.2021
External links
Manufacturer's site (de)

Relay properties

Relay type
Installation relay
input voltage
24 V
Output voltage
24 V
Manufacturer Type
XV100-BOX-E4-DC1

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
24 V DC, 8 digital inputs, 4 outputs (transistor) XV100 touch panel, 3.5" software licence for easySoft V7 Ethernet switch, 4-port RJ45 patch cable easyE4 flyer, Control relay easyE4, 24 V AC, 12

Product dimensions

Length
300 mm
Width
200 mm
Height
220 mm

Package dimensions

Length
30.40 cm
Width
22.40 cm
Height
20.90 cm
Weight
1.18 kg

30-day right of return
24 Months Warranty (Bring-in)
