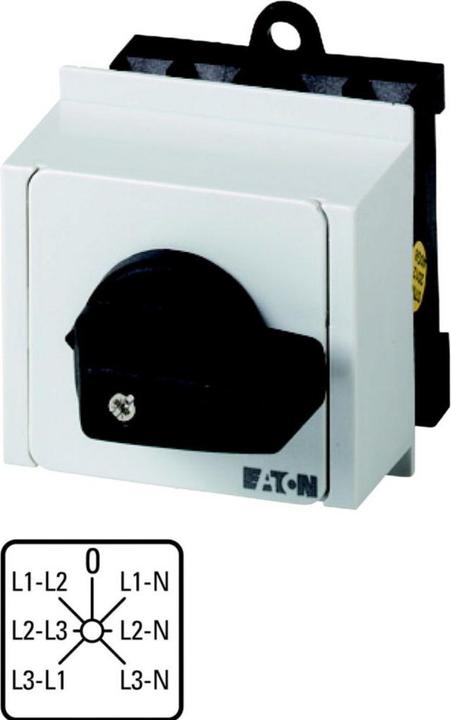

Eaton Voltmeter changeover switch, T0, 20 A, 12759

Eaton instrument changeover switch T0-3-8007/IVS Manufacturer :Eaton Designation :Instrument changeover switch with 0-position Type :T0-3-8007/IVS Measurement between phases possible :yes Measurement between phase and neutral conductor possible :yes With neutral position :yes Device type :Distribution board installation Suitable for series installation :yes With operating element :yes Protection class (IP) :IP30 Protection class (NEMA) :2 Eaton instrument changeover switch T0-3-8007/IVS: Further details Cam switch to IEC/EN60947, size T0, distribution board mounting form, mounting dimensions to DIN 43 880, snap-on to top-hat rail, degree of protection front IP30 with black toggle, rated continuous current Iu 20A, rated operating voltage Ue 690V, accessories available as per catalogue specifications Cam switch T. General designs: insulating surface-mounted housing, flush-mounted, centralised installation, intermediate installation, ITS distribution board installation. EAN: 4015080127598.
