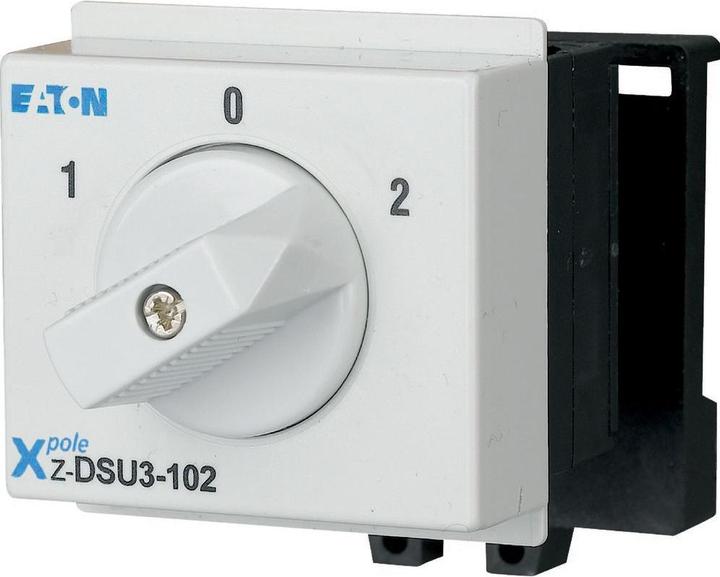

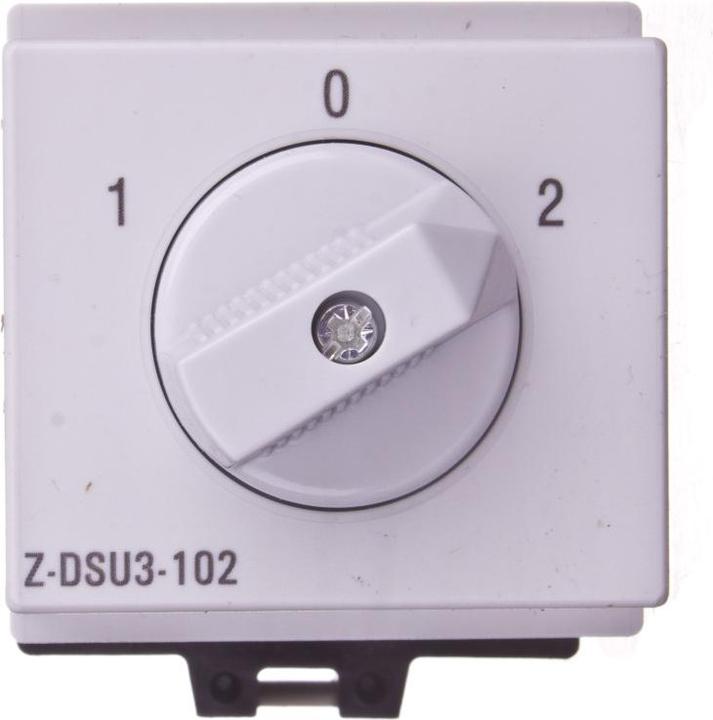

Eaton Rotary Switch Z-DSU3-102
Manufacturer: Eaton
Designation: Rotary switch 3p, UM, 1 -0 - 2
Type: Z-DSU3-102
Switching function: Changeover switch
Number of contacts as changeover: 3
Number of poles: 3
Rated current: 20 A
Rated voltage: 690 V
Min. rated voltage: 440 V
Rated breaking capacity: 0 kA
Short-circuit strength (Icw): 10 kA
Type of voltage: AC
With signal lamp: no
Color of the dome: other
Light source: other
Lamp base: other
Max. lamp power: 0 W
Width in division units: 3
Installation depth: 60 mm
Protection class (IP): IP20
Printing/marking: other
Forced disconnection (according to DIN VDE 0113): no
The rotary switches of the Z-DS series are designed in a modular fashion: The switch itself consists of the locking mechanism and the switching package. The switching cams (hence also called cam switches) are driven by a sturdy, torsion-resistant aluminum shaft. The switching package consists of one or more switching cells with one or two independent, double-breaking contacts. The connection of adjacent switch terminals, as required for the voltmeter switch Z-DSV, is integrated into the switch housing. This eliminates any obstruction when connecting the terminal wires.
Application: Practically usable for any desired application, e.g. motor switches: garage doors, fans, electrically operated roller shutters, heating controls, lighting fixtures, instrument switches, various control purposes, etc. Design according to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV. EAN: 4015082488772.
