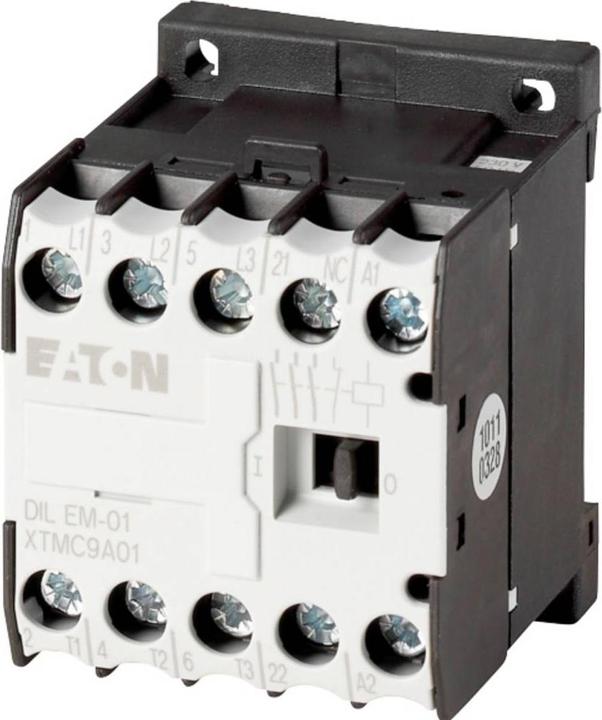

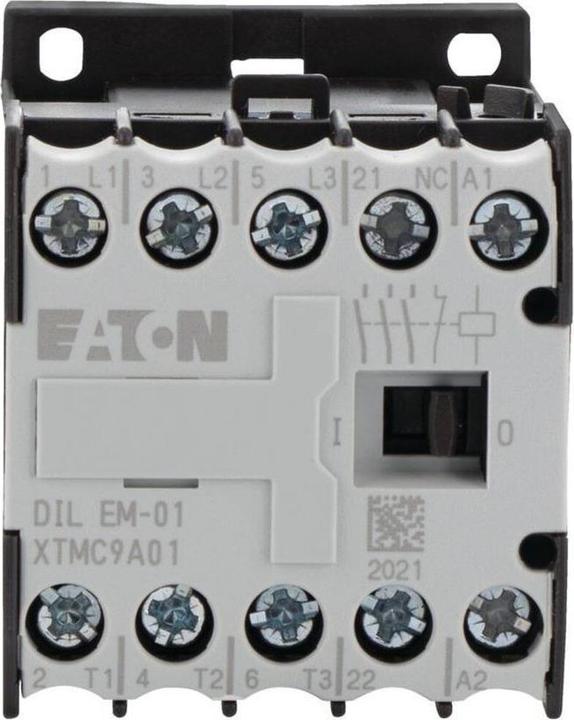

Eaton Power contactor

Eaton power contactor DILEM-01(24V50HZ) Manufacturer: Eaton Designation: Power contactor AC-3/400V:4kW 3p Type: DILEM-01(24V50HZ) Rated control supply voltage Us at AC 50 Hz: 24 V Rated control supply voltage Us at AC 60 Hz: 0 V Rated control supply voltage Us at DC: 0 V Voltage type for actuation: AC Rated operational current Ie at AC-1, 400 V: 22 A Rated operational current Ie at AC-3, 400 V: 9 A Rated operational power at AC-3, 400 V: 4 kW Rated operational current Ie at AC-4, 400 V: 6.599999 A Rated operational power at AC-4, 400 V: 3 kW Rated operational power NEMA: 3.7 kW Suitable for series installation: no Number of auxiliary contacts as NC contacts: 1 Connection type main circuit: screw connection Number of NO contacts as main contacts: 3Eaton contactor DILEM-01(24V50HZ): more detailsCircuit breaker, application: small contactor for motors and resistive loads, contactors DILEM, utilization category: AC-1: non-inductive or low inductive load, resistance furnaces, AC-3: squirrel cage motors: Starting, switching off during running, AC-4: Squirrel cage motors: Starting, reverse braking, reversing, jogging, Connection method: screw terminals, Note: Suitable also for motors of efficiency class IE3, Description: with auxiliary switch, Poles: 3-pole, Rated operational current AC-3 380 V 400 V: Ie= 9 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, enclosed: Ith= 16 A, rated operational current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 40 A, max. rated operational power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 2.2 kW, 380 V 400 V: P= 4 kW, 660 V 690 V: P= 4 kW, max. rated operational power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 1.5 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 3 kW, suitable for: DILE, contact configuration Ö = NC contact: 1 Ö, current type AC/DC: AC actuation , EAN: 4015080100867.
