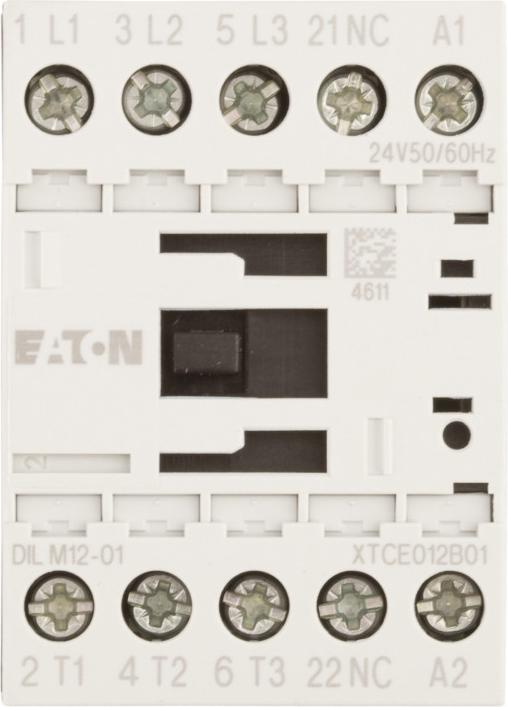

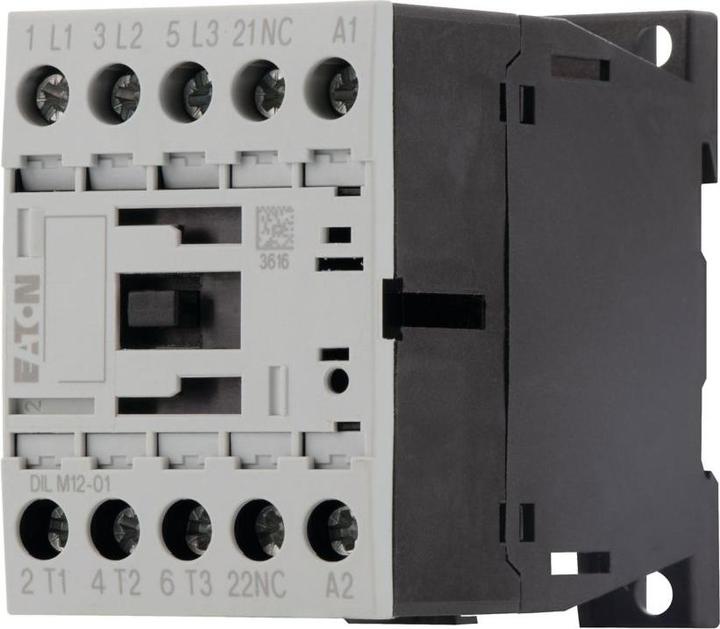

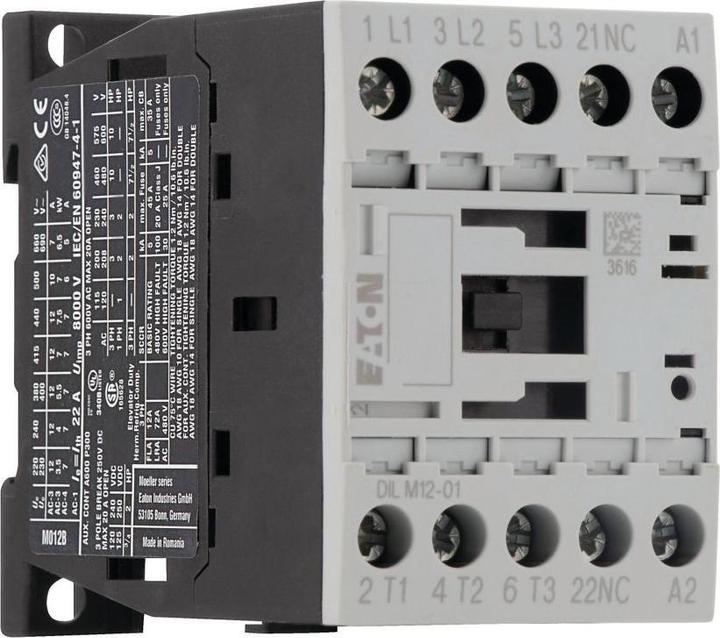

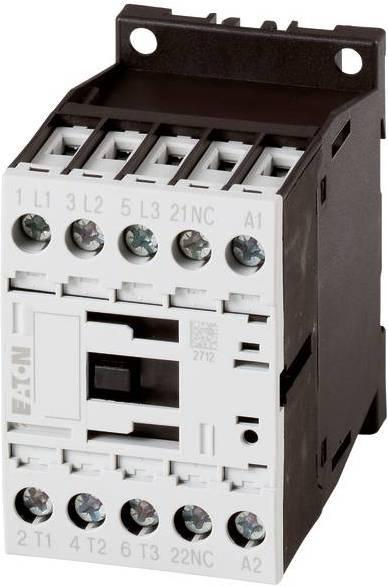

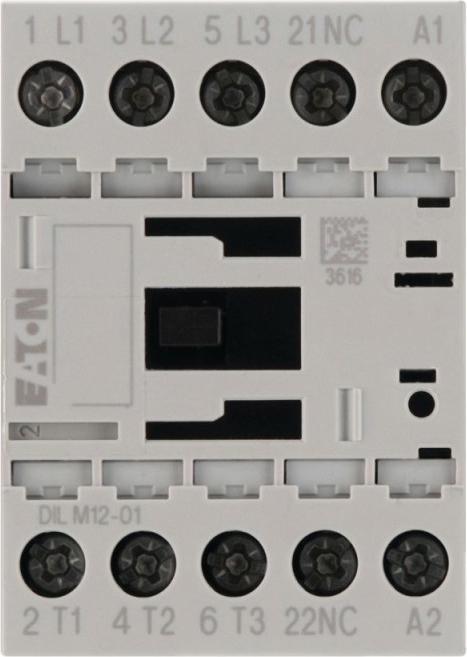

Eaton Power contactor DILM12-01 24V50/60HZ 5.5kW/400V AC

Ratings
BrandMore from Eaton
Delivered between Sat, 28.6. and Wed, 9.7.

Product details

The DILM12-01 power contactor from Eaton is a high-performance electrical component specifically designed for use in motor control applications. With a rated power of 5.5 kW at 400 V AC, this 3-pole contactor is ideal for non-inductive or lightly inductive loads as well as for operating squirrel-cage motors. The coil voltage is 24 V, and the switching current reaches up to 12 A, enabling reliable control and switching of electrical loads. The contactor is designed for mounting on DIN rails and offers a protection rating of IP20, making it suitable for various industrial applications. The connection type is via screw terminals, ensuring easy and secure installation. The DILM12-01 is also equipped with a 1NC auxiliary contact configuration, providing additional flexibility in application.

  • Suitable for motors in efficiency class IE3
  • Applicable in various usage categories such as AC-1, AC-3, and AC-4
  • Maximum switching power of 5.5 kW at 400 V AC
  • Compatible with auxiliary switches for expanded control options
  • Robust design for industrial applications with protection rating IP20.

Key specifications

input voltage
24 V
Scope of delivery
400V AC, 60HZ 5.5kW, Power contactor DILM12-01 24V50
Output voltage
24 V
Output current type
AC
Electric current output
12 A
Relay type
Power contactor
Item number
22934473

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
276869
Release date
19.4.2021
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
input voltage
24 V
Output voltage
24 V
Electric current output
12 A
Output current type
AC
Manufacturer Type
400V AC

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
400V AC, 60HZ 5.5kW, Power contactor DILM12-01 24V50

Product dimensions

Length
80 mm
Width
70 mm
Height
45 mm
