Eaton Ellipse PRO 850 DIN

0.85 VA, 510 W, Line-interactive UPS
1Ratings
BrandMore from Eaton
tonight with flash delivery
to check if flash delivery is available to you.
free shipping

Product details

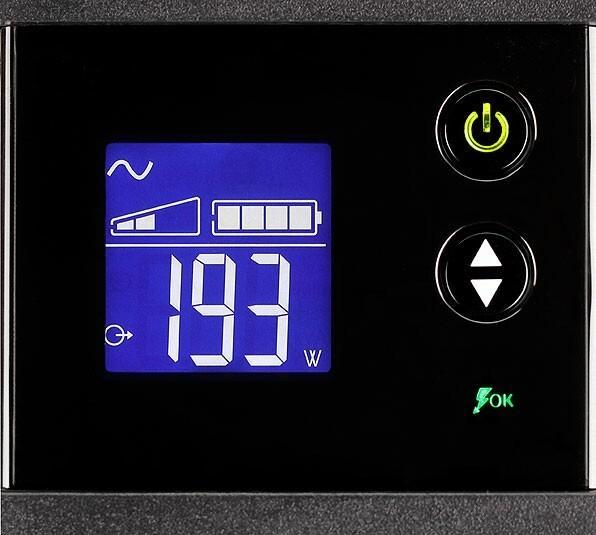

The Eaton Ellipse PRO 650-1600VA is a line-interactive UPS specifically designed to protect workstations with demanding applications. The Ellipse PRO features an LCD display for real-time status monitoring and measurements. It also includes EcoControl sockets that enable energy savings of up to 20 percent, as well as Advanced Surge Reduction (ASR) – surge protection that meets the requirements of the IEC 616431-1 standard.

Key specifications

Operating time at full load
9 min
Model
Desktop
Scope of application
Network cabinet, Server room
Plug type
C14
Item number
9962911

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
ELP850DIN
Release date
22.10.2018
May include power adapter
Yes

UPS properties

UPS type
Line-interactive UPS
Power output
510 W
Output power capacity
0.85 VA
Model
Desktop
Rack Unit
2U

UPS functions

UPS protection functions
Protection for Modem/Fax/DSL

Application range

Scope of application
Network cabinet, Server room

Connector plug

Plug type
C14

Connections

Connections
Ethernet, USB 2.0
USB ports
USB-C
Network connections
RJ45 (1x)
Data ports
PS/2 (1x)

Mains supply properties

input voltage
150 - 285 V
output voltage
230 V
Input frequency
50 - 60 Hz
Output frequency
50 Hz

Operating conditions

Maximum operating temperature
35 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 95%

Battery properties

Battery category
Device batteries
Battery
Rechargeable battery
Battery type
VRLA
Battery size
Device specific
Number of cells
1 x
Battery weight per cell
2510 g
Voltage
150 V
Capacity
9 Ah

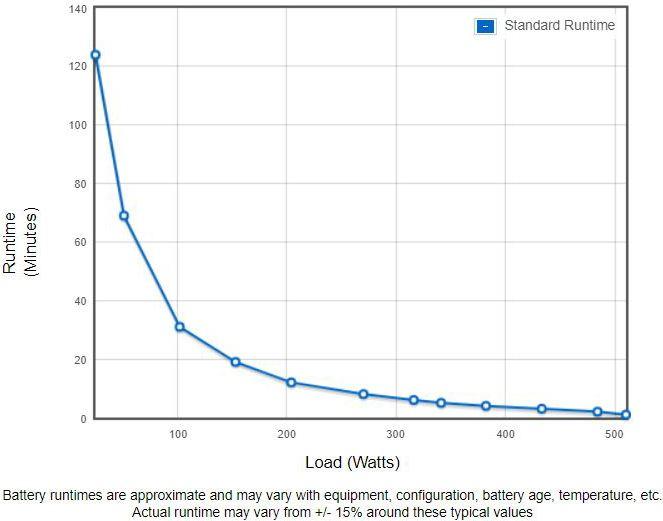

Operating time at full load
9 min
Operating time at half load
5 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cable set, Software, UPS
Items per sales unit
1 x

Product dimensions

Height
260 mm
Weight
7.30 kg
Width
82 mm
Length
285 mm

Package dimensions

Length
39.40 cm
Width
32 cm
Height
14 cm
Weight
8.28 kg
