Eaton Ellipse ECO 1600 USB DIN

1600 VA, 1000 W, Standby UPS
4Ratings
BrandMore from Eaton
Delivered between Fri, 20.6. and Thu, 26.6.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

The Eaton Ellipse ECO is a slim-line power supply protection device with built-in high-performance surge protection according to the IEC 61643-1 standard. With its efficient electrical design and EcoControl feature (USB models), the Eaton Ellipse ECO helps you save up to 25% energy compared to previous generation UPS systems.

Key specifications

Operating time at full load
6 min
Model
Desktop
Scope of application
Server room
Plug type
Afsnit, BS 1363, BS 546, CEE 7/6
Item number
10153330

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
EL1600USBDIN
Release date
27.11.2018
Sales rank in Category UPS
31 of 2661
External links
Manufacturer's site (de)
May include power adapter
Yes

UPS properties

UPS type
Standby UPS
Power output
1000 W
Output power capacity
1600 VA
Model
Desktop
Rack Unit
2U

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room

Connector plug

Plug type
Afsnit, BS 1363, BS 546, CEE 7/6

Connections

Connections
Ethernet, USB, USB 2.0
USB ports
USB-C
Network connections
RJ45 (1x)

Mains supply properties

input voltage
161 - 284 V
output voltage
220 - 240 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
Efficiency battery operation
98 %

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1 x
Battery weight per cell
2800 g
Voltage
230 V

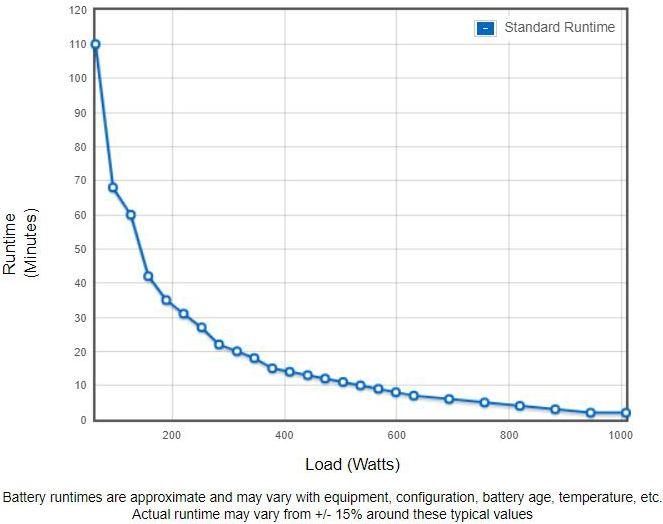

Operating time at full load
6 min
Operating time at half load
11 min

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Eaton Intelligent Power
Items per sales unit
1 x

Product dimensions

Height
305 mm
Weight
7.80 kg
Width
81 mm
Length
312 mm

Package dimensions

Length
39 cm
Width
36 cm
Height
13.50 cm
Weight
8.07 kg

30-day right of return
24 Months Warranty (Bring-in)
