Eaton EATO shunt releases

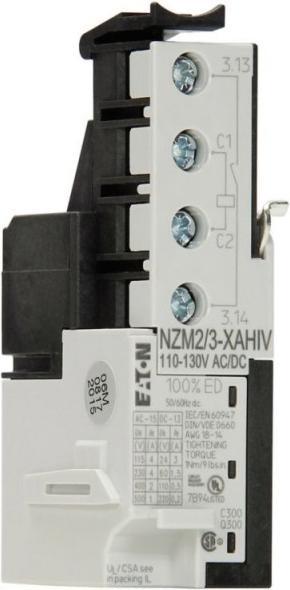

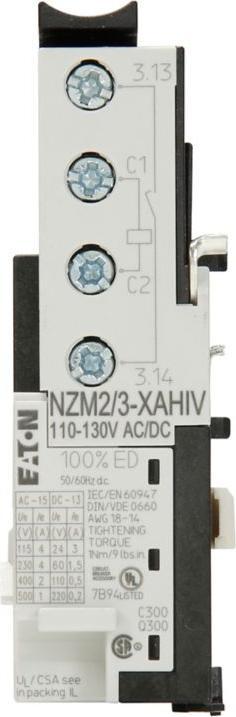

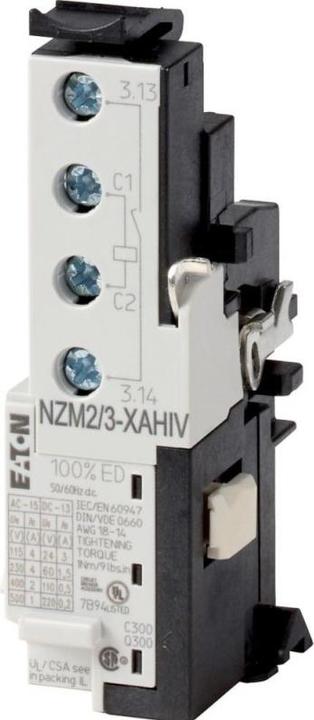

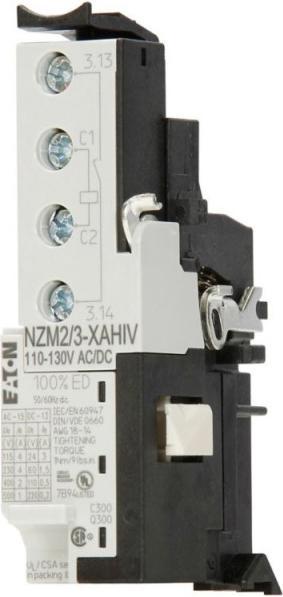

Eaton Working Current Release NZM23XAHIV110130ACDC

Manufacturer: Eaton
Designation: Working current release with VHI for NZM2/3
Type: NZM23XAHIV110130ACDC
Rated control supply voltage Us at AC 50 Hz: 110 to 130 V
Rated control supply voltage Us at AC 60 Hz: 110 to 130 V
Rated control supply voltage Us at DC: 110 to 130 V
Type of voltage for actuation: AC
Initial value of the instantaneous short-circuit release setting range: 0 A
Final value of the instantaneous short-circuit release setting range: 0 A
Type of electrical connection: Screw connection
Number of contacts as normally open: 1
Suitable for circuit breakers: no
Suitable for load switches: yes
Suitable for motor protection circuit breakers: no
Suitable for overload relays: no

The Eaton Working Current Release NZM23XAHIV110130ACDC offers a comprehensive range of application possibilities for global use. Installation is flexible and straightforward due to modular functional groups.

Notes: Not usable in conjunction with remote drive NZM..-XR.. When the working current release is live, touching the main contacts during switching attempts is safely prevented. Preceding of the auxiliary contact during switching on and off (manual operation): approx. 20 ms. The working current release cannot be installed simultaneously with the preceding auxiliary switch NZM..-XHIV.. or undervoltage release NZM..-XU..

Usable for: NZM2(-4), N(S)2(-4), NZM3(-4), N(S)3(-4)
EAN: 4015082598167.
