Eaton 9SX 5000i RT3U G2

5000 VA, 5000 W, Online double converter UPS
Ratings
BrandMore from Eaton
Delivered between Tue, 17.6. and Wed, 18.6.
Only 2 items in stock at supplier

Product details

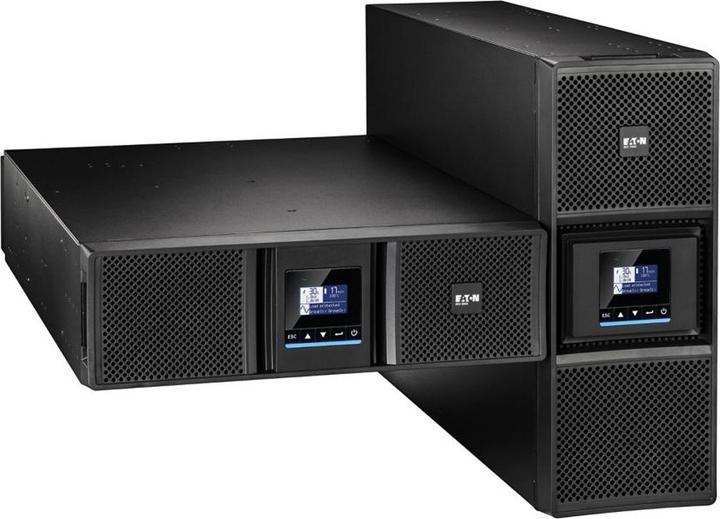

Eaton 9SX 5000i RT3U G2 with RM Kit (9RK) / Technology: Online Double Converter. The Online Double Conversion Series 9 VFI-SS-111 according to EN 62040 protects mission-critical applications from downtime, data loss and damage, as well as process interruptions, by providing clean and uninterrupted power supply. It safeguards connected devices from damage and disruptions caused by irregularities in the power supply. Additionally, it offers the capability to keep particularly critical devices powered longer during a power outage by automatically shutting down less important devices. Flexibility in deployment is ensured by the choice between rack mounting and tower installation of the 3U device. The comprehensive power management software suite ensures data and system integrity.

Key specifications

Operating time at full load
3.50 min
Model
19" rack
Item number
57492562

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
9SX5KIRT3UG2
Release date
8.4.2025

UPS properties

UPS type
Online double converter UPS
Power output
5000 W
Output power capacity
5000 VA
Model
19" rack
Rack Unit
3U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

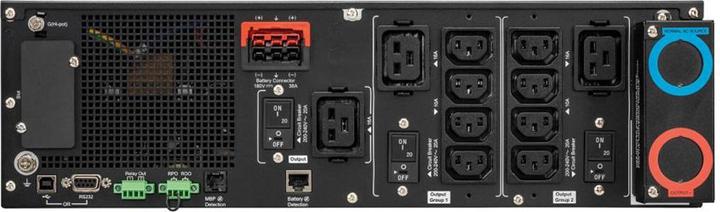

Connections

Connections
RS-232, USB
USB ports
USB-A
Data ports
RS-232 (1x)

Mains supply properties

input voltage
176 - 276 V
output voltage
230 V
Input frequency
50 Hz
Output frequency
50 Hz
Efficiency full load
96.70 %
Efficiency battery operation
96.70 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Max. noise level
40 dB

Battery properties

Battery category
Industry battery
Battery
Battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
15 x
Voltage
230 V
Capacity
5 Ah
Operating time at full load
3.50 min
Operating time at half load
14 min

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
3 cable glands, Cable set, Rackmount kit, Software, Tower supports, UPS
Items per sales unit
1 x

Product dimensions

Height
130 mm
Weight
43.10 kg
Width
440 mm
Length
684 mm

30-day right of return
24 Months Warranty (Bring-in)
