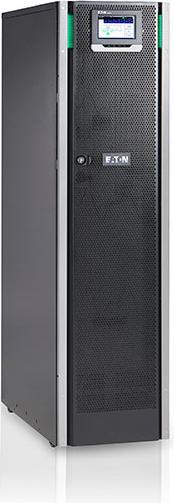

Eaton 93PS-20(40)-20-3x9Ah-6

Efficiency

• Above 96% efficiency in double conversion mode
• Up to 99% efficiency with Energy Saver System

Scalability

• Scalable architecture and ‘pay as you grow’ capability to minimize capital expenditure
• Paralleling of up to 4 units

Inherent redundancy

• Modular design allows internal redundancy (separate battery configuration also available)

Smallest footprint in the market

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)

Unity power factor (1.0)

Hot swap and hot scalable

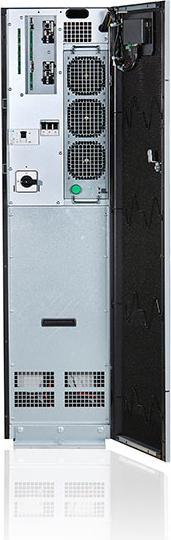

• A module can be replaced while the other continues protecting the load (concurrent maintenance)
• A module can be added while the other continues protecting the load (hot scalable)
• Individual battery strings can be serviced while other strings are supporting the load

Super-sized static switch

Optional super-sized static switch to enhance the selectivity of the overall electrical installation

Safety

• Equipped with an ultra-rapid fuse in the static switch – ensuring safety in all scenarios
• Equipped with a backfeed contactor – no need for additional installments

Cloud and virtualization ready

• The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
• IT and electrical infrastructure management from a single pane of glass
• Load shedding – a 50% drop in load equates to 250% more runtime!.
