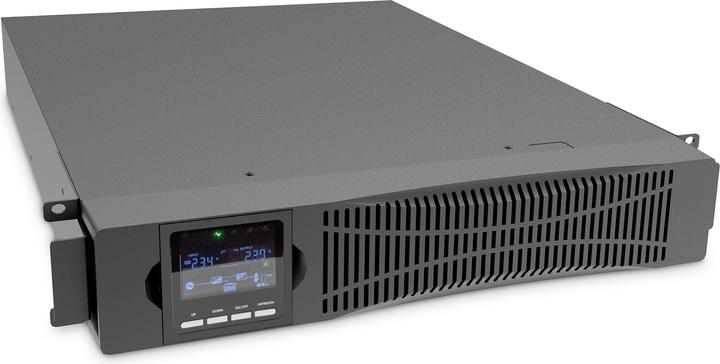

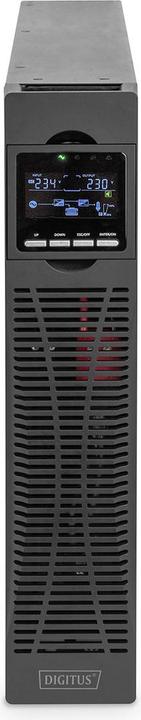

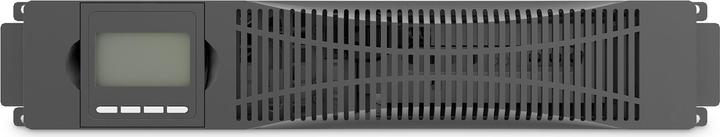

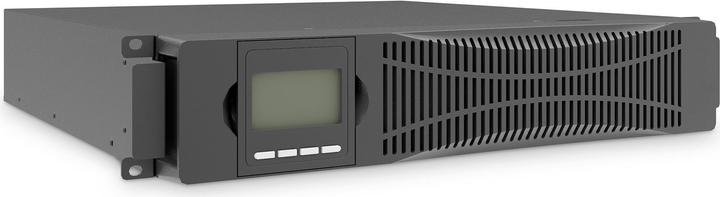

Digitus OnLine UPS system, 3000 VA / 3000 W

3000 VA, 3000 W, Online double converter UPS
1Ratings
BrandMore from Digitus
Delivered between Sat, 14.6. and Wed, 25.6.
Only 1 item in stock at supplier

Product details

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers top-notch power outage protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructures in both centralized and edge network applications. Scalable runtime options with compatible external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capabilities, including configuration, make this system easy to install and maintain. With market-leading efficiency and a consistent power factor, the UPS meets your critical application requirements.

Key specifications

Operating time at full load
1.50 min
Model
19" rack

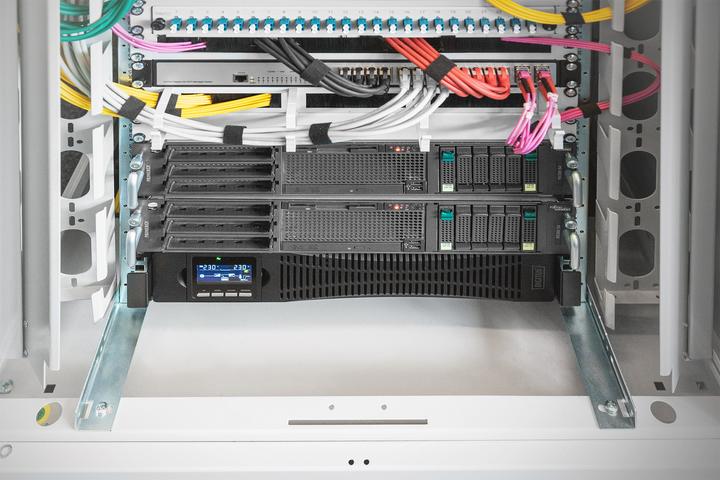

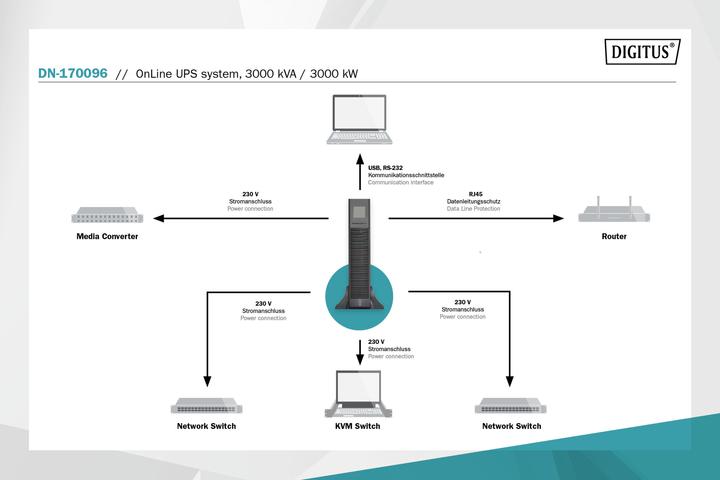

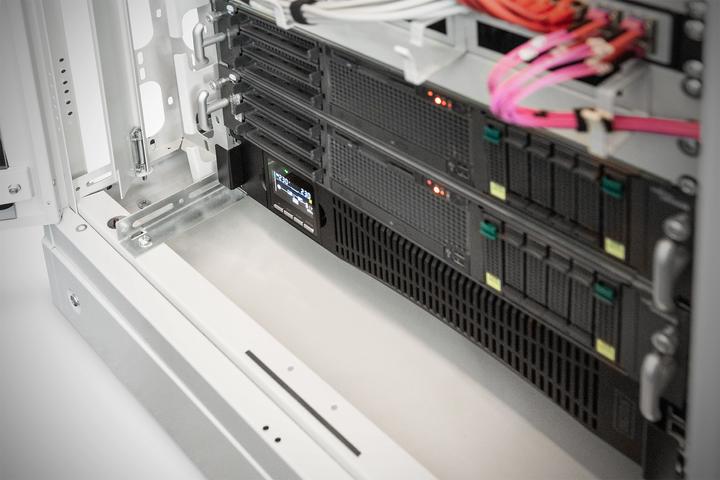

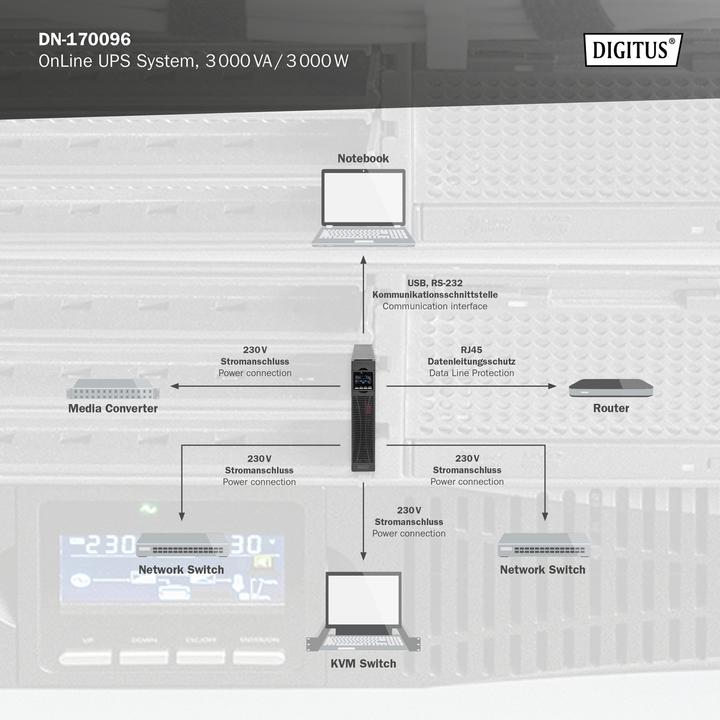

Scope of application
Network cabinet, Server room
Plug type
C13, C19, C20
Item number
20738218

General information

Manufacturer
Digitus
Category
UPS
Manufacturer no.
DN-170096
Release date
29.4.2022
External links
Manufacturer's site (en)
May include power adapter
Yes

UPS properties

UPS type
Online double converter UPS
Power output
3000 W
Output power capacity
3000 VA

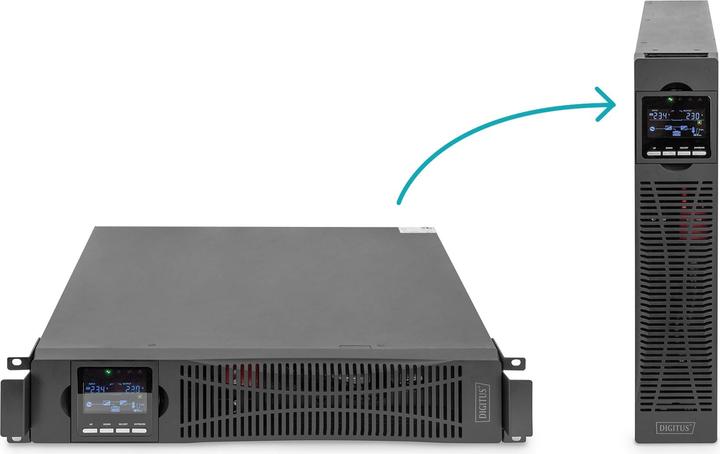

Model
19" rack
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Network cabinet, Server room

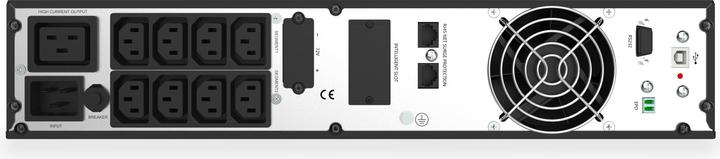

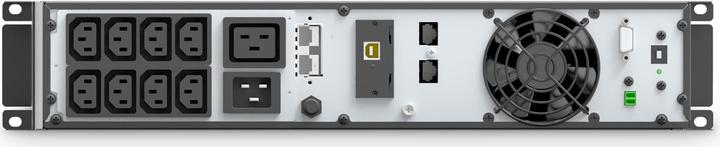

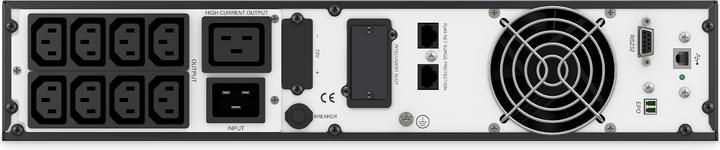

Connector plug

Plug type
C13, C19, C20

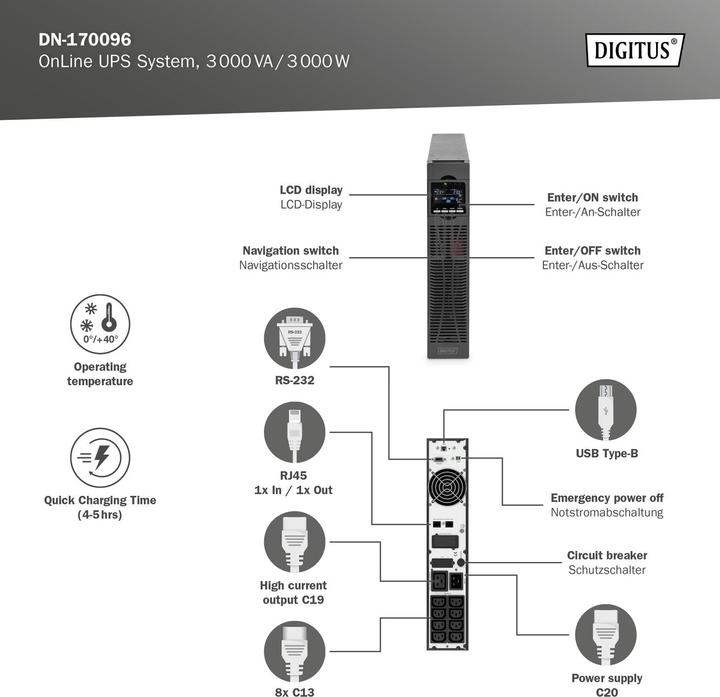

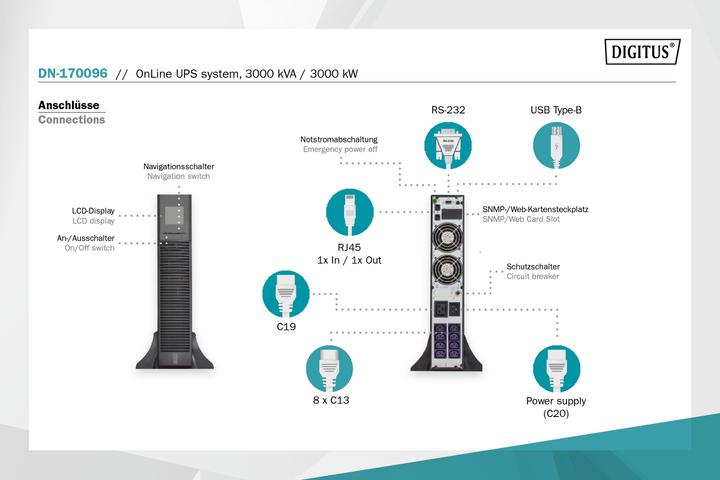

Connections

Connections
RS-232, USB
USB ports
USB-A
Network connections
RJ45 (1x)
Data ports
RS-232 (1x)

Mains supply properties

input voltage
110 - 290 V
output voltage
208 V, 220 V, 230 V, 240V
Max. input current
16 A
Input frequency
40 / 70 Hz
Output frequency
50 - 60 Hz
Efficiency full load
93 %
Efficiency battery operation
93 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 90%
Max. noise level
55 dB

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
6 x
Battery weight per cell
2750 g
Voltage
12 V
Capacity
9 Ah
Charging time
4 h
Operating time at full load
1.50 min
Operating time at half load
9 min

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

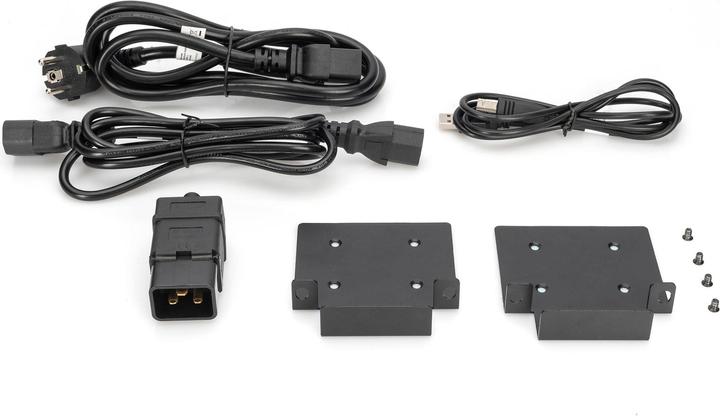

Scope of delivery

Scope of delivery
Documentation, Rack mounting kit
Items per sales unit
1 x

Product dimensions

Height
86.50 mm
Weight
26 kg
Width
440 mm
Length
600 mm

Package dimensions

Length
74 cm
Width
56.50 cm
Height
21 cm
Weight
30.71 kg
