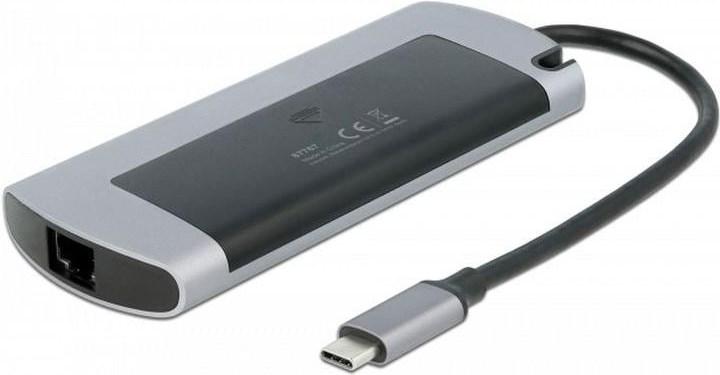

Delock USB Type-C™ docking station with M.2 slot

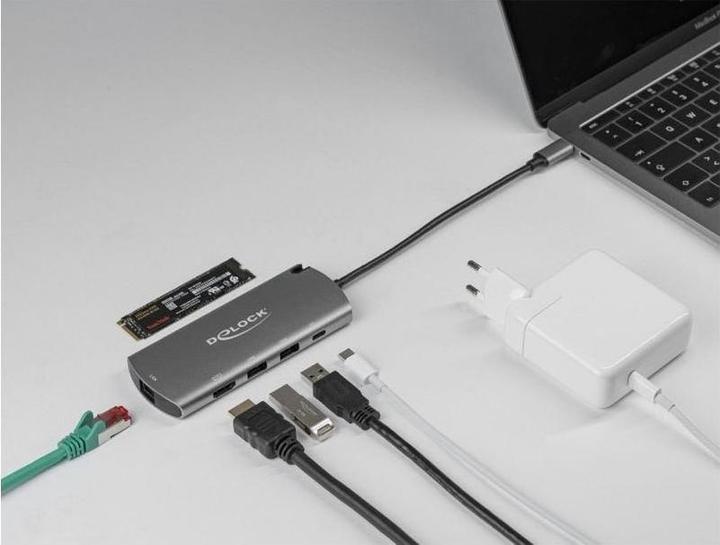

This docking station from Delock can be connected to a computer with a USB-C DP Alt Mode or Thunderbolt 3 port and provides a variety of interfaces. A monitor can be operated via the HDMI output. Two integrated USB 3.2 Gen 1 ports allow for the use of peripheral devices, and a Gigabit network port completes the setup.

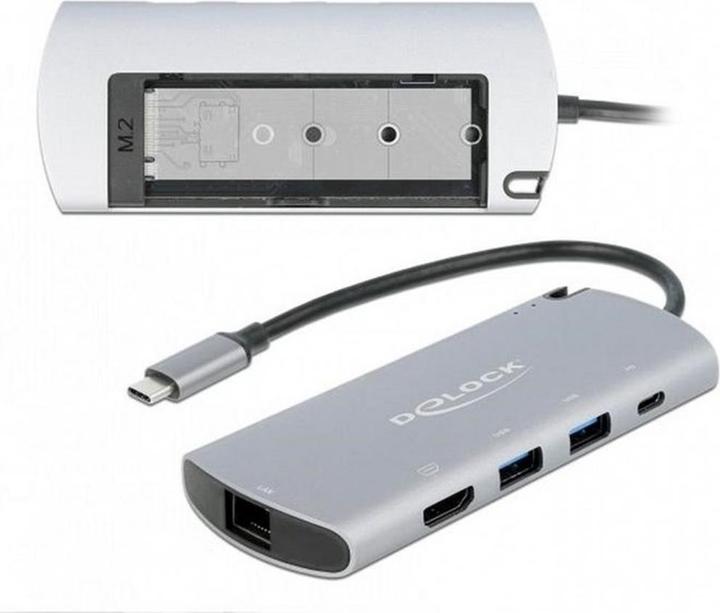

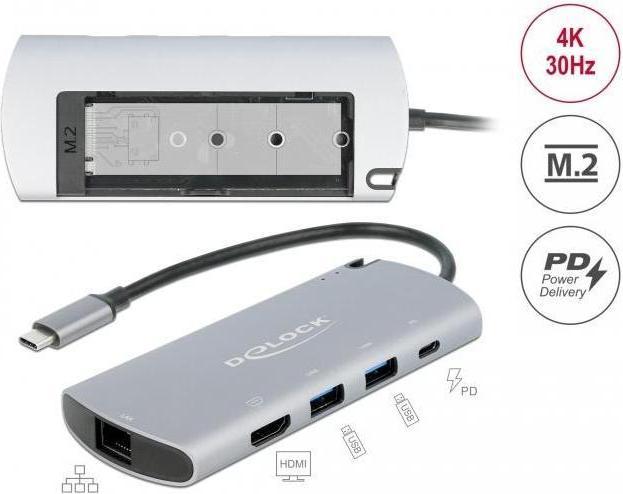

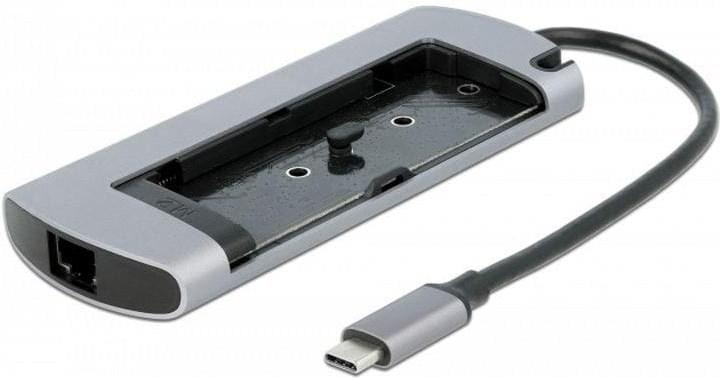

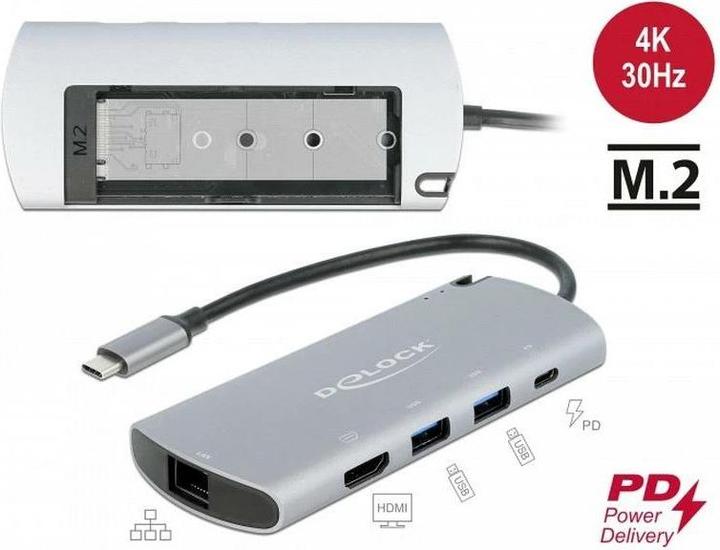

On the underside, there is an M.2 slot. An M.2 SATA SSD in 2280, 2260, 2242, or 2230 format can be connected here.

The docking station features a USB Type-C Power Delivery port, to which the power supply of a notebook or tablet can be connected for charging. The docking station can also be used without a power supply.

Due to its lightweight and sturdy housing, this Delock docking station is particularly suitable for on-the-go use. It can easily be packed along with the notebook or tablet and used as needed.

Connections:
1 x USB Type-C connector
2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A ports
1 x HDMI-A port
1 x Gigabit LAN 10/100/1000 Mbps RJ45 port
1 x USB Type-C port (power supply)
1 x 67 Pin M.2 Key B slot

Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and connected hardware)
Transmits audio and video signals
Supports HDCP 1.4 and 2.2
Input power: 1 x USB Type-C port max. 100 W
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key B or Key B+M on SATA basis
Metal housing
LED indicators for power and access
Cable length without connector: approx. 18 cm
Color: gray
Dimensions (LxWxH): approx. 123 x 50 x 14 mm

System requirements:
Android 9.0 or higher
Chrome OS 78.0 or higher
iPad Pro (3rd generation) or higher
Linux Kernel 4.6.4 or higher
Mac OS 10.15.3 or higher
Windows 8.1/8.1-64/10/10-64
Device with a free USB Type-C port and DisplayPort Alternate Mode or with a free Thunderbolt port.
