Delock Storage controller (RAID)

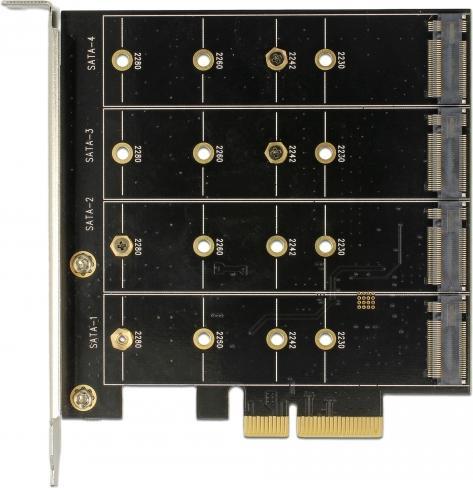

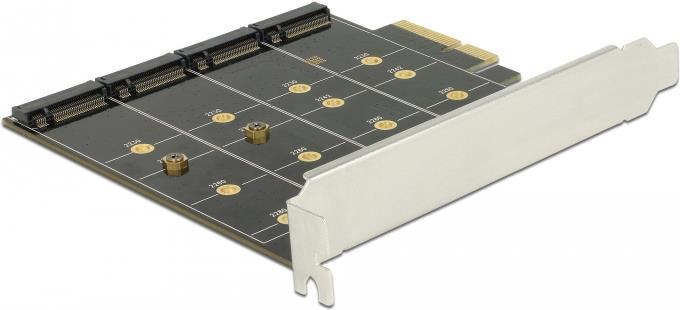

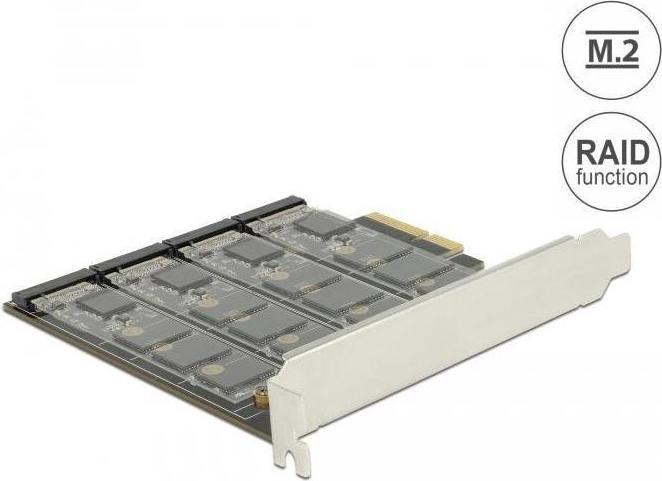

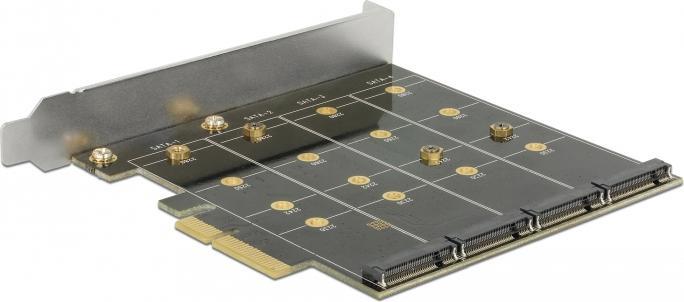

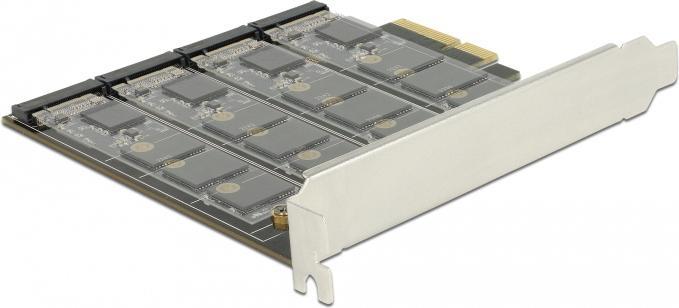

This PCI Express card from Delock expands the PC with four M.2 slots. Up to four M.2 SATA modules in 2280, 2260, 2242, and 2230 formats can be connected to the card. When using more than one SSD, there is the option to utilize different RAID levels.

Specifications

• Connections:

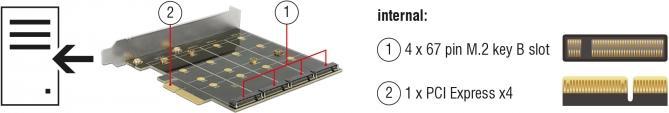

internal:
4 x 67 Pin M.2 Key B Slot
1 x PCI Express x4

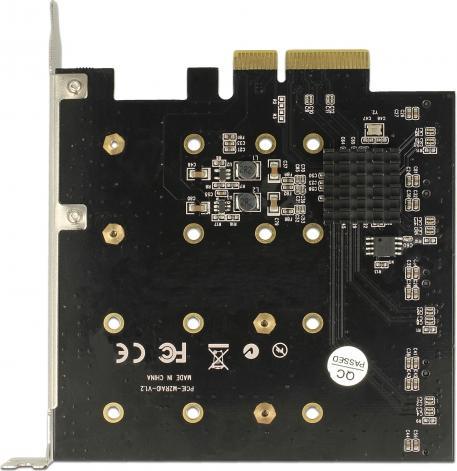

• Chipset: Marvell 88SE9230
• Interface: SATA
• Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key B or Key B+M based on SATA
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• Data transfer rate of up to 6 Gb/s
• Supports RAID 0, 1, 10

System Requirements

• Windows 8.1/8.1-64/10/10-64, from Linux Kernel 2.6
• PC with a free PCI Express x4 / x8 / x16 / x32 slot

Package Contents

• PCI Express card
• Screwdriver
• Driver CD
• User manual.
