Delock PCI Express Card to 16 x Serial RS-232 High Speed ESD Protection

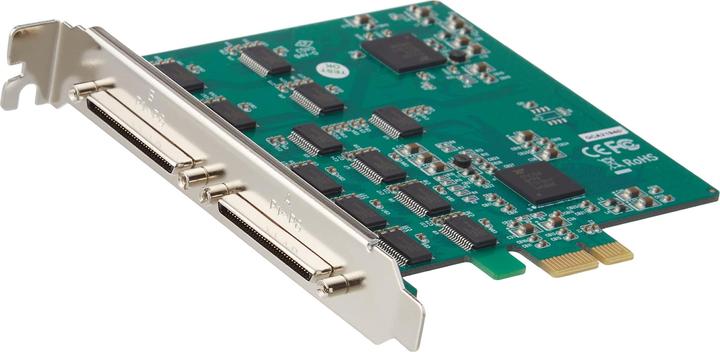

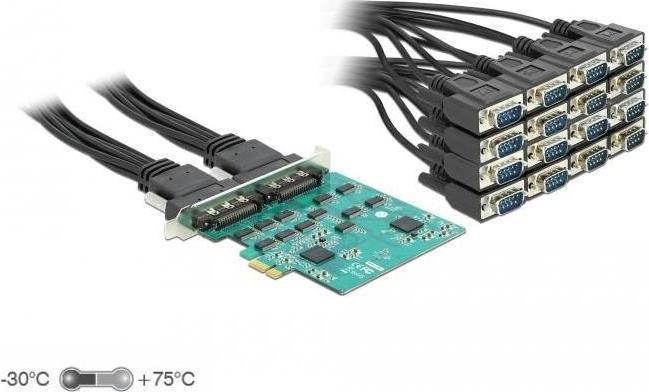

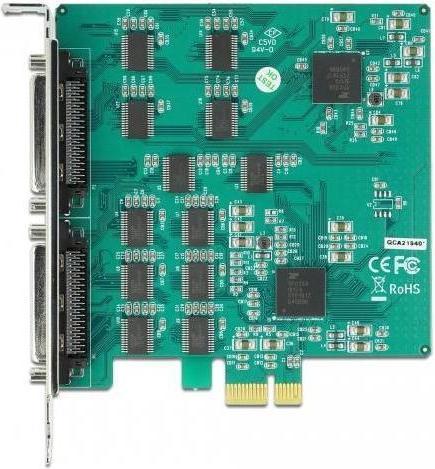

The Delock PCI Express card expands the PC with 16 high-speed RS-232 ports. These 16 ports are connected externally via two fan-out cables. The RS-232 connections allow for the connection of devices such as printers, cash registers, measuring instruments, and machines.

Thanks to the plug and play support, the PCI Express card is installed by the operating system, and the connected devices are automatically recognized. The ESD overvoltage protection and an extended temperature range complete this card, making it a reliable solution for many RS-232 devices.

The data rate per port is up to 921.6 Kbps. The fan-out cables with VHDCI connector to D-Sub9 connector provide maximum flexibility at the RS-232 connections. The protection against electrostatic discharge (ESD) reaches up to 15 kV. Only high-quality components with an extended operating temperature range are used on the PCI Express card.

External connections:
2 x VHDCI 68 female

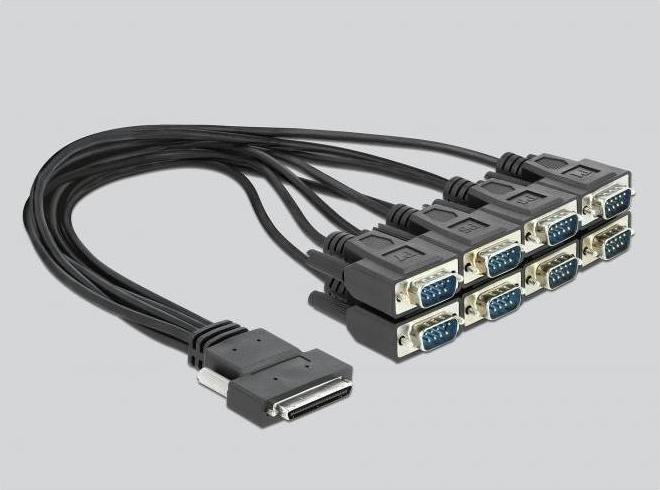

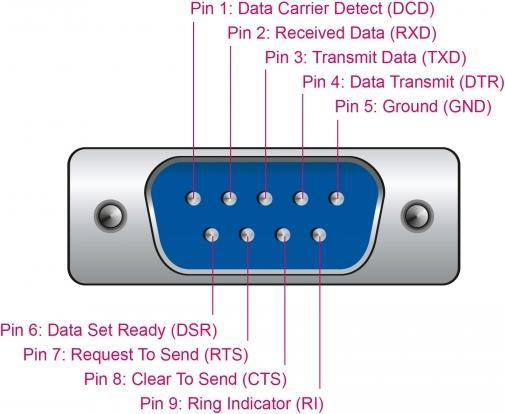

Connection cable: VHDCI 68 male to 8 x Serial RS-232 DB9 male

Internal connections:
1 x PCI Express x1, V1.1

Chipset: MaxLinear XR17V358
Compatible with 16C550 UART
Data transfer rate up to 921.6 Kbps
FIFO: 16 x 256 bytes
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bit: even, odd, none, mark, space
Flow control: none, hardware RTS/CTS, software XON/XOFF
±15 kV ESD protection for all serial signals
Operating temperature: -30 °C to 75 °C
Relative humidity: 0 - 95 % (non-condensing)
Cable length including connectors: approx. 40 cm
Dimensions (LxW): approx. 100.0 x 102.5 mm

Package contents:
PCI Express card
2 serial connection cables
Driver CD
User manual.
