Product details

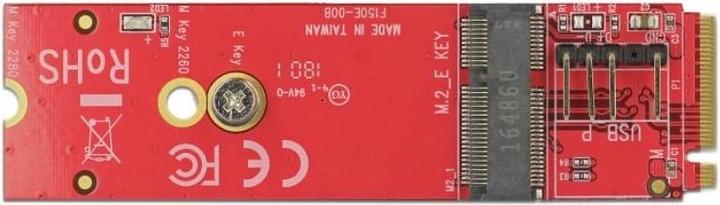

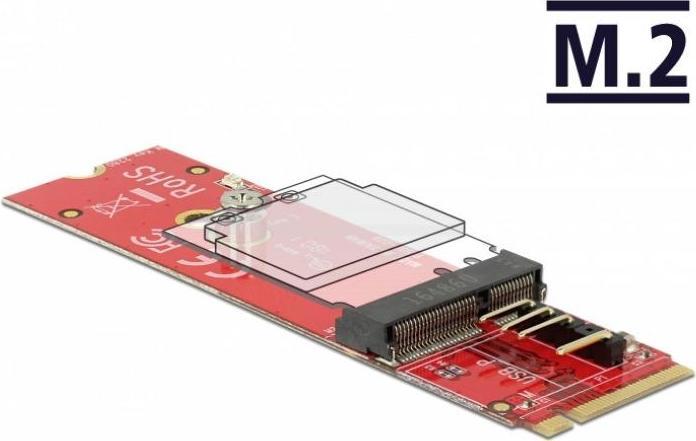

This converter from Delock transforms the M.2 Key M slot into a Key E slot. It supports modules with USB and PCIe signal transmission.

Specifications:

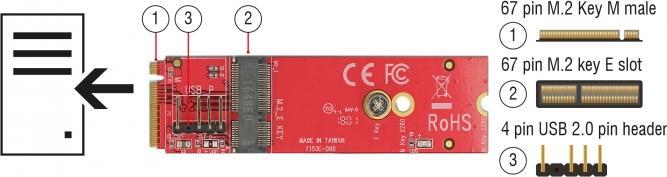

  • Connections:

1 x 67 Pin M.2 Key M connector
1 x 67 Pin M.2 Key E slot
1 x 4 Pin USB 2.0 header connector

  • Form factor: M.2 2280
  • Supports M.2 modules in formats 2230, 1630, and 3030 with Key E or Key A+E based on PCIe and USB
  • Maximum height of components on the module: 1.5 mm, use of double-sided populated modules is possible
  • Operating temperature: -40 °C to 80 °C
  • Dimensions (LxWxH): approx. 80 x 22 x 5 mm
  • OS independent, no driver installation required

System requirements:

  • An available M.2 Key M slot

Package contents:

  • Converter

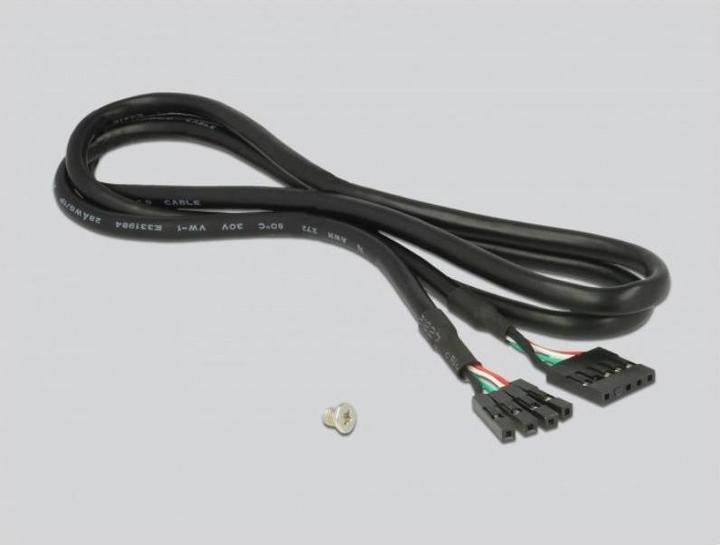

  • USB header cable 5 pin to 4 pin, length approx. 90 cm
  • Mounting materials
  • User manual.

Key specifications

Expansion card form factor
2 slots
USB ports
USB-A
Exact USB ports
USB-A 2.0 (1x)
Data ports
PS/2 (1x)
Internal connection options
M.2 (1x)
Expansion slot
PCI Express x2 (1x)
Item number
15720208

General information

Manufacturer
Delock
Category
Controller cards
Manufacturer no.
63343
Release date
22.4.2021

Controller properties

Expansion card form factor
2 slots

Peripheral port

USB ports
USB-A
Exact USB ports
USB-A 2.0 (1x)
Data ports
PS/2 (1x)

Internal interfaces

Internal connection options
M.2 (1x)
Expansion slot
PCI Express x2 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
22 mm
Length
80 mm

Package dimensions

Length
16.20 cm
Width
10.50 cm
Height
2.30 cm
Weight
87 g
