Suppressor type: Arrester type 2
Operating voltage max: 275 V AC
Mounting type: DIN rail
Peak current max: 40 kA
Series: DG
Length: 36 mm
Depth: 66 mm
Height: 90 mm

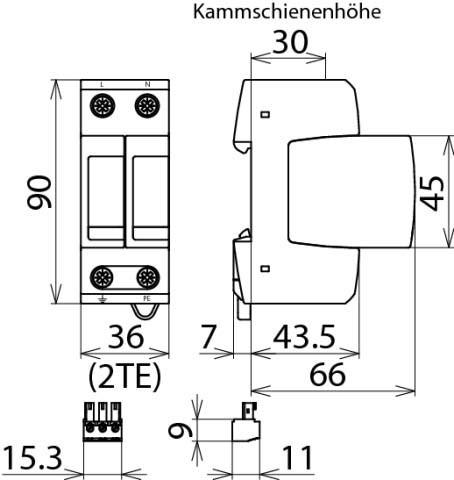

Dimensions: 36 x 66 x 90 mm
Operating temperature min: -40°C
Operating temperature max: +80°C

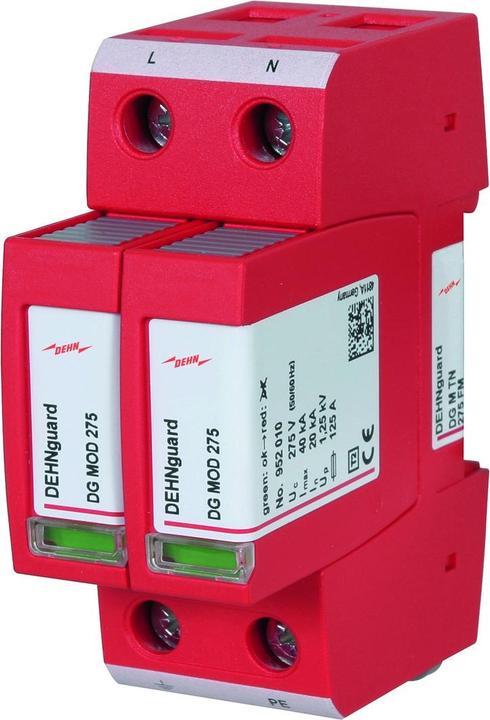

Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.
Items per sales unit | 1 x |
Item number | 9950232 |
Manufacturer | Dehn |
Category | Resistor |
Manufacturer no. | DG M TN 275 FM |
Release date | 22.10.2018 |
Sales rank in Category Resistor | 10 of 1902 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 0.04 m |
Width | 0.08 m |
Length | 0.10 m |
Length | 10.60 cm |
Width | 8.30 cm |
Height | 4 cm |
Weight | 255 g |
