Very good91/100
The DeepCool AK500 is a solid, strong and quiet cooler for mid- to high-end processors.
Deepcool AK500
158 mmfree shipping

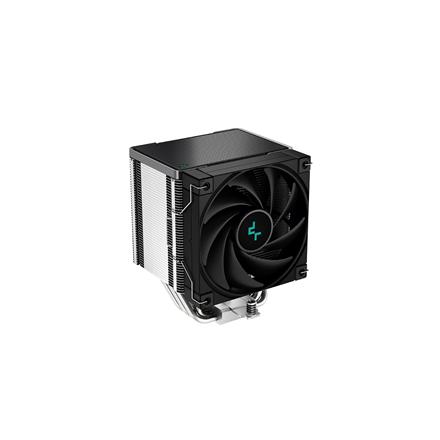

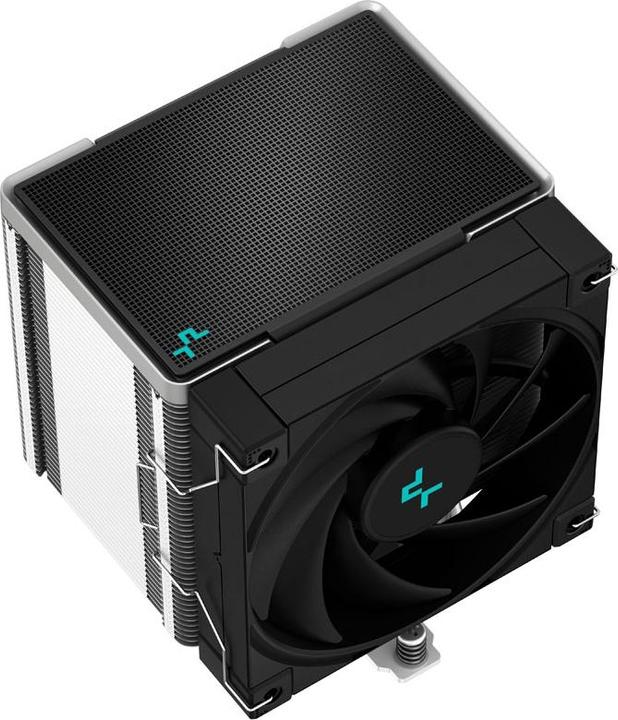

The DeepCool AK500 is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.
Prime performance
Keep up with massive performance gains thanks to dominant cooling capacity from the AK500, boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.
Bidirectional heat pipe technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.
Full DRAM compatibility
The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
Cool, quiet, and powerful
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.
Simple and secure

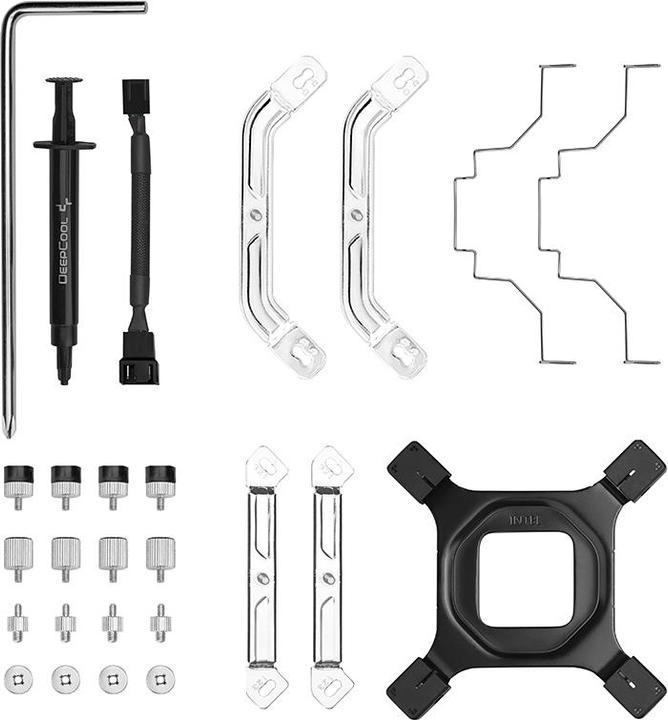

The provided all metal mounting bracket ensures an easy installation process that guarantees proper contact and equal pressure on both Intel and AMD platforms.
Socket | LGA 1150 |
Height (with fan) | 158 mm |
Diameter | 120 mm |
Number of fans | 1 x |
Max. TDP | 240 W |
Airflow | 0.07 m³/h |
power connector | 4-pin PWM |
Item number | 22671763 |
Manufacturer | Deepcool |
Category | CPU coolers |
Manufacturer no. | R-AK500-BKNNMT-G |
Release date | 5.10.2022 |
Colour | Black |
Exact colour description | Aluminium, Black |
CPU cooler design | Single Tower |
Fan type | Top-Down Cooler |
Socket | LGA 1150 |
Supported fan sizes | 120mm |
Number of heatpipes | 5 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 5 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Number of fans | 1 x |
Max. Speed | 500 RPM |
Max. TDP | 240 W |
Airflow | 0.07 m³/h |
Static pressure | 0.22 Pa |
Max. noise level | 31.50 dB |
LED colour | without LED |
Fan bearing type | Fluid Dynamic bearing |
power connector | 4-pin PWM |
Power consumption | 240 W |
Voltage | 12 V |
Scope of delivery | 1x 120 mm fan |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 127 mm |
Length (with fan) | 117 mm |
Height (with fan) | 158 mm |
Weight | 1040 g |
Length | 22.40 cm |
Width | 18.20 cm |
Height | 17.60 cm |
Weight | 1.55 kg |
