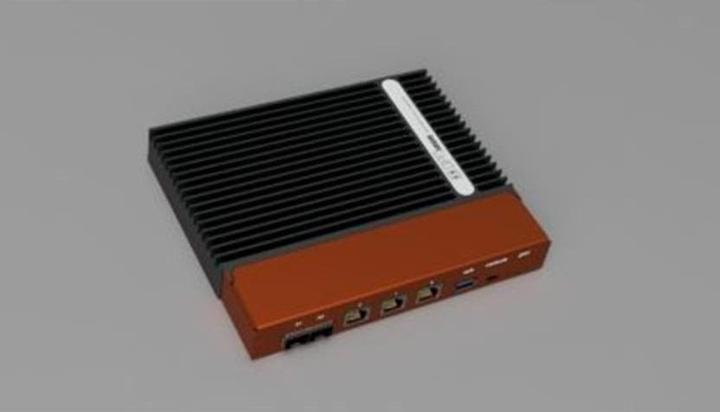

Deciso DEC740 - OPNsense® Desktop Security Appliance

AMD Ryzen™ embedded performance. A fanless desktop appliance, the full package in a compact housing at an affordable price. Exceptional performance for businesses and enterprises in a 1U rack enclosure.

This model includes 4GB DDR4 RAM, 128GB solid state flash and can handle up to 8.5Gbps firewall and 1.2Gbps IPsec throughput (AES256GCM16).

Package contents:

• Fanless desktop appliance
• Power supply with matching power cord
• Configuration cable
• Quickstart guide

Software:

• Preinstalled software OPNsense®
• License open source + 1 year free business edition

Hardware specifications:

• Typical applications: firewall, routing, VPN, IDPS and web proxy
• 2.5GbE RJ45 ports [100/1000/2500Mbps] / 10Gbps SFP+ ports 3 / 2 [5 ports total]
• USB ports: 1
• Console port: 1
• Internal storage: 128GB solid state flash
• Memory: 4GB DDR4
• CPU cores: 4 / 8 threads (max frequency 2.2GHz)
• Virtual interfaces (802.1q VLANs): 4093

System performance:

• Firewall throughput: 10Gbps
• Firewall packets per second: 830Kpps
• Firewall port to port throughput: 8.5Gbps
• Firewall port to port packets per second: 719Kpps
• Concurrent sessions: 3,000,000
• Firewall latency (average): 150us
• Firewall policies (recommended maximum): 10,000
• IPsec VPN throughput (AES256GCM16): 1.2Gbps
• IPsec VPN packets per second (AES256GCM16): 107Kpps
• Threat protection throughput packets per second: ~85Kpps
• Threat protection throughput: ~1Gbps
• High availability with state synchronization requires two

Dimensions:

• Height x Width x Length (mm): 28 x 190 x 160
• Height x Width x Length (inches): 1.1 x 7.5 x 6.3
• Form factor: desktop
• Weight (appliance only): 842g

Environment:

• Power requirements: 100-240VAC, 50-60Hz
• Maximum current (AC): 0.8A
• Power consumption (typical): 15W
• Heat dissipation (typical): 51.2 BTU/hr
• Operating temperature: 0 to +45°C
• Storage temperature: -20 to +70°C
• Humidity: 10-90% non-condensing

Regulatory compliance: FCC part...
