CSL Narrow Box Ultra HD Compact v5

Intel Celeron N5100, 4 GB, 512 GB, Intel UHD Graphics
Delivered between Wed, 4.6. and Fri, 6.6.
More than 10 items in stock at third-party supplier
Supplied by
CSL DE

SSD capacity

Product details

With the CSL Narrow Box Ultra HD Compact v5 / 512GB / Windows 11 Home, CSL presents the fifth edition of its best-selling mini PCs. The Narrow Box UHD Compact series is characterized by its completely silent and highly energy-efficient operation, as well as its ultra-compact, space-saving design. With its powerful hardware, the Narrow Box UHD Compact is an ideal solution for home office use, as a 4K streaming box for your living room, or as a workstation PC in offices, at reception areas, and in showrooms. It allows for extremely comfortable use of all common office apps, fast internet navigation, and impresses with top-notch media playback in brilliant UHD 4K quality.

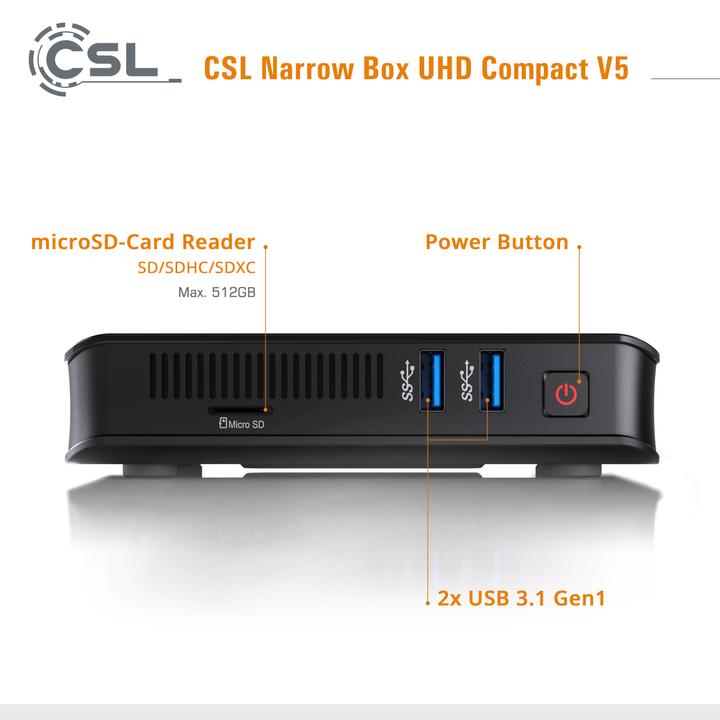

The Narrow Box utilizes modern solid-state storage technology and a high-quality, silent passive cooling system, ensuring you are never disturbed. It is equipped with a fast Intel N5100 Quad-Core CPU, which guarantees efficient workflows and smoothly renders 4K streams and smaller online games with its integrated Intel UHD graphics unit. With the built-in AC Dual Band Wi-Fi (2.4 & 5 GHz), fast wireless connections to Wi-Fi networks are possible, and peripherals can be easily connected via Bluetooth and USB 3.1. Windows 11 Home is pre-installed and ready to use on the 512 GB M.2 PCIe SSD. Additionally, the storage capacity of this Narrow Box can be further expanded with a microSD card (up to 512 GB).

Key specifications

PC type
Mini PC
Processor family
Celeron
Graphics card model
Intel UHD Graphics
Operating System Version
Windows 11 Home
Video connections
HDMI (1x)VGA (1x)
Exact USB ports
USB-A 3.0 (3x)
Network connections
RJ45 (1x)
Item number
21681770

General information

Manufacturer
CSL
Category
PC
Manufacturer no.
85392
Release date
12.8.2022

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
Mini PC

Operating system

Operating system
Windows
Operating System Version
Windows 11 Home
Language
EnglishFrenchGermanItalian
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
Celeron
Processor type
Intel Celeron N5100
Clock frequency
1.10 GHz
Max. turbo clock rate
2.80 GHz
Max. TDP
6 W
Overclock clock frequency
2.80 GHz
Number of processor cores
4 -Core
Number of threads
4
Cache
4 MB
Socket
FCBGA1338

Processor cooling properties

Processor cooling type
Passive (fanless)

Memory

Memory
4 GB
Memory configuration
1 x 4GB
Max. supported memory
4 GB
Memory type
DDR4-RAM
RAM speed
2133 MHz
Set clock frequency
2133 MHz

Data storage controller

Data storage controller
Intel onboard

Data storage overview

Disk type
eMMC
Total capacity
128 GB
Form factor
M.2

SSD properties

SSD capacity
512 GB

Additional data storage

Further data carrier type
eMMC
Storage capacity
512 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Intel UHD Graphics

Dedicated graphics card properties

Number of graphics cards
1
Graphics chip (GPU)
Intel UHD Graphics
Graphics card model
Intel UHD Graphics

Network

Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
BluetoothWi-Fi
Bluetooth version
4.2

Wi-Fi

Wi-Fi standard
Wi-Fi 5 / 802.11ac

Audio properties

Audio channel
5.1 channels

PC case properties

Form factor
Small Form

Connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (3x)
Video connections
HDMI (1x)VGA (1x)
Network connections
RJ45 (1x)
Audio Connections
Jack 3.5mm (1x)

Optical drive properties

Optical drive type
No drive

Card reader properties

Memory card type
SDSDHCSDXC

Voluntary climate contribution

CO₂-Emission
Climate contribution

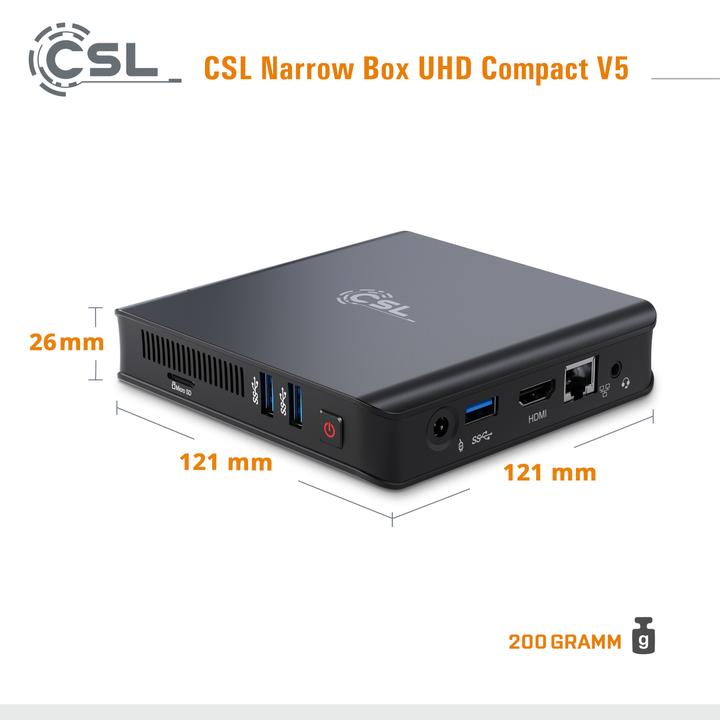

Product dimensions

Length
12.10 cm
Width
12.10 cm
Height
2.60 cm
Weight
0.20 kg
