Creality 1000mm GT2 belt repair kit

This is a belt repair kit from Creality. With this kit, you can cut your own replacement belts without needing to have a specific one in stock for each of your Creality printers. In the table below, you can see the length to which you need to cut your belt, depending on the printer and axis. The tolerance is 1.5 mm. Make sure the belt is flat when measuring. Then, the brass sleeves are crimped at both ends of the belt using flat pliers. Be sure to leave about 1-2 mm of space between the brass sleeve and the end of the belt.

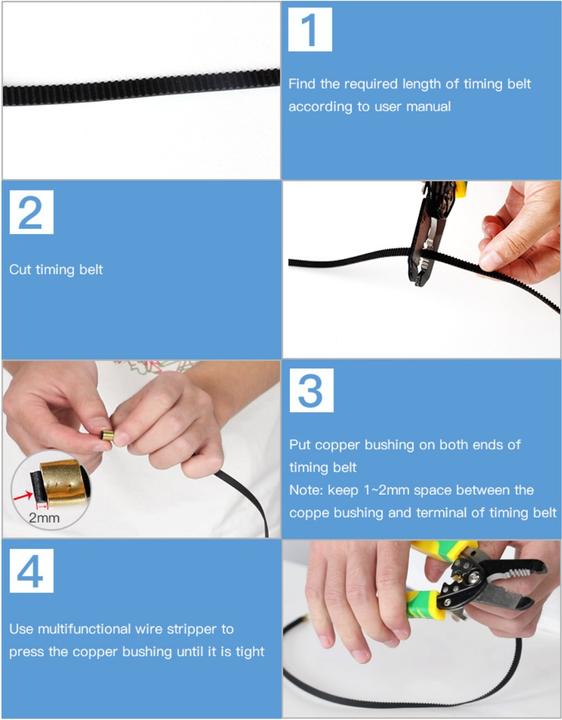

Belt Repair Instructions:
1. Look up the cut length for your desired printer in the table.
2. Cut the belt to the exact length (make sure the belt is flat when measuring).
3. Mount the brass sleeve 1-2 mm inwards from the belt.
4. Press firmly with flat pliers.

Cut Length Table for GT2 Belts:
Printer Model | X-Axis Belt Cut Length | Y-Axis Belt Cut Length
CR-10 V2 / CR10 | 905 mm | 1060 mm
CP-01 | 690 mm | 690 mm
SV01 | 902 mm | 937 mm
Ender-25 | 50 mm | 550 mm
Ender-37 | 86 mm | 743 mm
Ender-3s | 786 mm | 788 mm
Ender-3 V2 | 798 mm | 740 mm
Ender-3 MAX | 925 mm | 970 mm
CR20/CR20 pro | 786 mm | 788 mm
Ender-5/Ender-5 Pro/Ender-5s | 950 mm | 925 mm
CR-10/10s | 925 mm | 1022 mm
CR-10 Mini | 925 mm | 880 mm
CR-10S Pro V2 | 934 mm | 890 mm
CR-X/CR-X Pro / V2 | 936 mm | 890 mm
CR6-SE | 820 mm | 743 mm
Sermoon D1 | 804 mm | 792 mm
CR-200B | 672 mm | 672 mm

Technical Details:
Manufacturer: Creality
Manufacturer SKU: 4001080050
Profile: GT2
Length: 1000 mm
Tooth Pitch: 2 mm
Width: 6 mm
Weight: 13 g

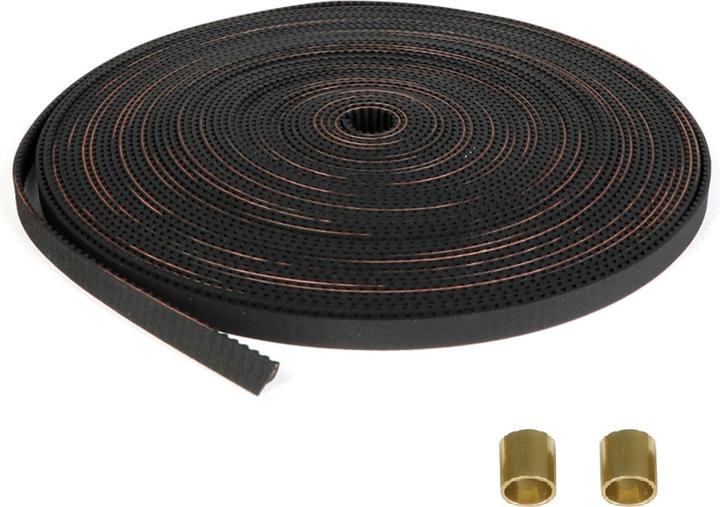

Delivery Contents:
1x GT2 Belt 1000 mm

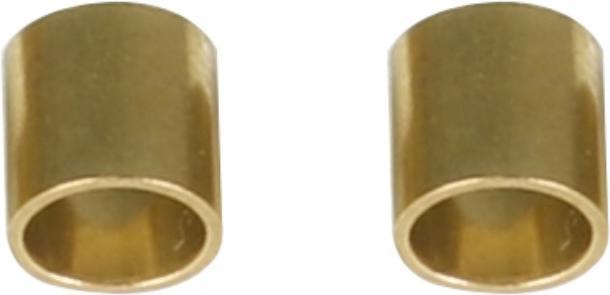

2x Brass Sleeve.
