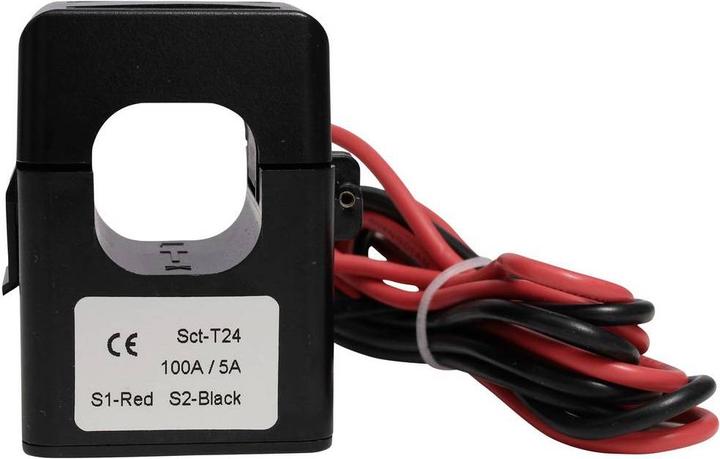

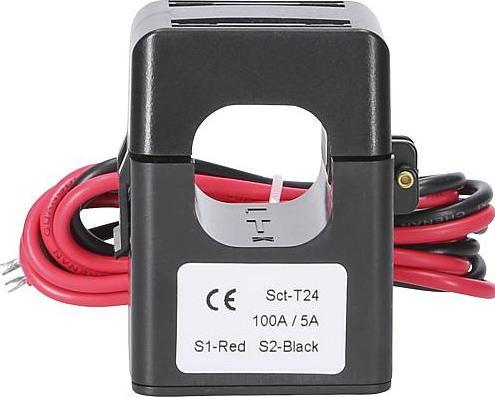

Counttec ESCT-T24 Measuring current transformer Primary current 100 A Secondary current 5 A Conductor du

The Counttec ESCT-T24 measurement current transformer is a high-precision device designed for measuring electrical currents in low-voltage applications. With a primary current of 100 A and a secondary current of 5 A, this transformer provides a reliable solution for monitoring and analyzing current flows. The cable entry has a diameter of 25 mm, allowing for easy installation. The transformer is made of flame-retardant polycarbonate and features a hinged cover that facilitates access to the connections. With an accuracy class of 1% and a frequency range of 50-60 Hz, the ESCT-T24 is ideal for precise measurements in various applications. Its robust construction and self-extinguishing properties make it a safe choice for use in demanding environments.

• Accuracy class of ±1% in the range of 20% to 120% of the input
• Maximum primary voltage of 5000 V AC (isolated conductor)
• Dielectric strength of 2.5 kV / 1 mA / 1 min
• Frequency range of 50-60 Hz

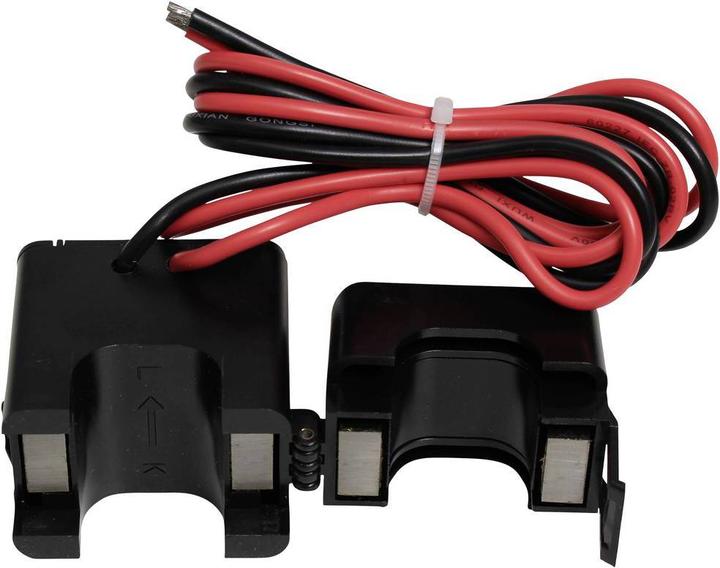

• Hinged mounting for easy installation.
