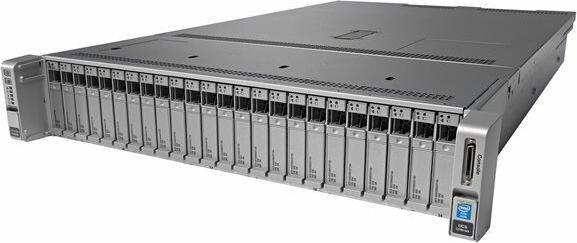

Cisco UCS SmartPlay Select C240 M4SX Standard 1 - Server - rack mount - 2U - two-way

Intel Xeon E5-2603 v4, 16 GB, Rack Server
Currently out of stock

Product details

The Cisco UCS SmartPlay Select C240 M4SX Standard 1 is a powerful rack server designed for demanding applications and virtualization environments. Equipped with an Intel® Xeon® E5-2603 v4 processor featuring six cores and a clock speed of 1.7 GHz, this server provides a solid foundation for data processing and executing complex tasks. The server supports up to 768 GB of DDR4 RAM, allowing for high memory capacity for compute-intensive applications. Connectivity is ensured through multiple Ethernet and LAN ports, providing a fast and reliable network connection. The C240 M4SX is designed for rack mounting and occupies two rack units (2U), making it ideal for use in data centers. With the option to integrate redundant power supplies, the availability and reliability of the system are further enhanced.

  • Supports up to 768 GB of DDR4 RAM for high memory capacity
  • Maximum port speed of 59.7 GB/s for fast data transfer
  • Offers up to 24 storage slots for flexible storage options
  • Compatible with various RAID configurations for data security
  • Integrated Matrox G200e graphics card for basic graphical requirements.

Key specifications

Number of rack units
2 U
Processor family
Xeon E5
Processor type
Intel Xeon E5-2603 v4
Number of processors
1 x
RAM
16 GB
Item number
18611373

General information

Manufacturer
Cisco
Category
Servers
Manufacturer no.
UCS-SPR-C240M4-BS1
Release date
1.5.2021

Hardware form factor

Design
Rack Server
Number of rack units
2 U

Processor

Processor family
Xeon E5
Processor type
Intel Xeon E5-2603 v4
Number of processors
1 x
Clock frequency
1.70 GHz
Number of threads
6
Number of processor cores
6 -Core
Max. TDP
85 W
L3 Cache
20 MB

Motherboard properties

Socket
LGA 2011-v3
Chipset
Intel C610

Memory

Memory type
DDR4-RAM
Max. memory slots
24
RAM
16 GB
Max. RAM
768 GB
RAM speed
600186 MHz
RAM error correction
ECC

Data storage controller

RAID configuration
0110550660
Possible raid configuration
0110550660
Mass storage controller type
RAID

Hard drive slots

Form factor
2.5"
Interface
SAS
Hard disk additional functions
Hot swapping

Internal interfaces

PCI express version (max.)
3

External interfaces

Connectivity
EthernetLAN

Network

Network connections
RJ45 (6x)
Ethernet controller
Gigabit Ethernet
Max. port speed
477600 Mbit/s

Graphics card properties

Graphics card model
Matrox G200e
Graphics chip (GPU)
Matrox
Hardware interface
PCI Express 3.0

Video connections

Video connections
D-Sub (2x)

Optical drive properties

Optical drive type
No drive

Operating system

Processor design
64-bit

Mains supply properties

Power
85 W
input voltage
230 V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
766 mm
Width
482 mm
Height
87 mm
