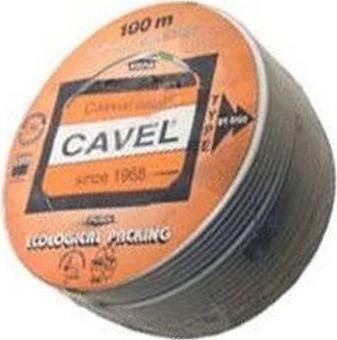

Cavel DG 80

Construction:
Inner conductor bare copper, 0.8 mm
Dielectric 3.5 mm, physically foamed polyethylene, with polyisobutylene
Outer conductor braid tinned copper (coverage 78%)
Foil aluminum/pet/al (coverage 100%)
Outer sheath white PVC, 5.0 mm, with meter marking

Electrical properties:
Shielding 30-1000 MHz > 90 dB
Impedance 75 +/-3 Ω
Shortening factor 0.85
Attenuation at 5 MHz 2.1 dB / 100 m
Attenuation at 860 MHz 23 dB / 100 m
Attenuation at 2400 MHz 39.6 dB / 100 m
Loop resistance 53.6 Ω/km
Shielding class A

Mechanical properties:
Operating temperature range -30 to 80 °C
Minimum installation temperature -5 °C
Minimum bending radius 1x / several times 25 mm / 50 mm
Maximum tensile force 90 N
Weight per 100 m 2.57 kg.
