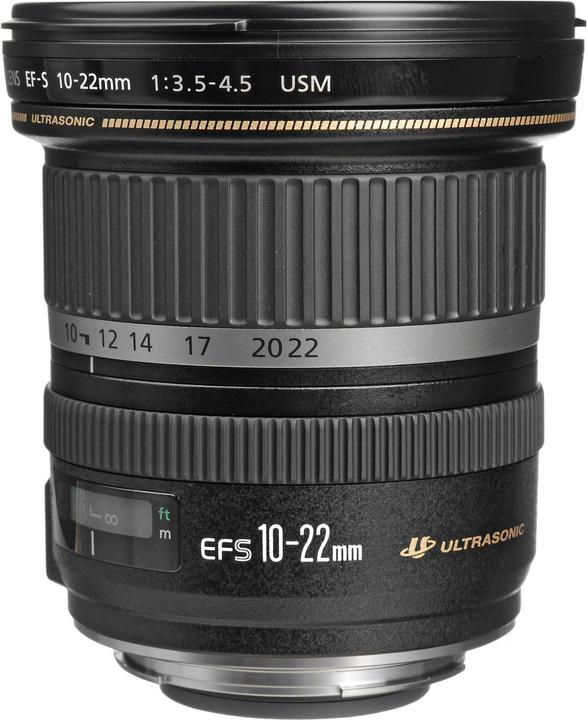

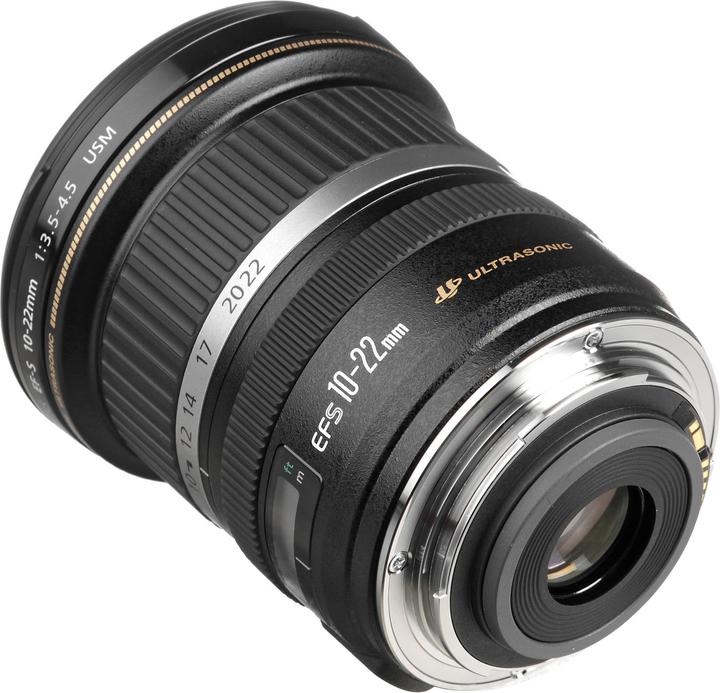

Super wide-angle zoom lens for all EOS cameras with EF-S connector; extraordinarily compact and lightweight for increased mobility.
Convincing image quality
Lightweight and compact
Close-up adjustment limit: approx. 24 cm
Fast, virtually silent autofocus with USM
Super Spectra coating
Circular aperture - Circular aperture
optionally available lens shade
Bayonet lens mount | Canon EF-S |
Lens type | Wide angle lens, Zoom |
Sensor compatibility | APS-C / DX |
Focus type | Autofocus, Manual focus |
Weight | 385 g |
Item number | 433615 |
Colour | Black |
Minimum focus distance | 0.24 m |
Lens type | Wide angle lens, Zoom |
Bayonet lens mount | Canon EF-S |
Aperture | 3.50 f/ |
Min. aperture | 4.50 f/ |
Min. focal length (exact) | 10 mm |
Max. Focal length (exact) | 22 mm |
Focal length | 10 - 22 mm |
Sensor compatibility | APS-C / DX |
Number of diaphragm blades | 6 x |
Filter thread | 77 mm |
Number of lenses | 13 |
Number of lens groups | 10 |
Lens equipment | Fixed front lens, Zoom function |
Optical zoom | 2.20 x |
Focus type | Autofocus, Manual focus |
Country code | CH |
Min. aperture opening | f/4.5 |
Max. aperture | f/3.5 |
Aperture | f/3.5 - 4.5 |
Min. focal length (exact) | 0.01 m |
Max. Focal length (exact) | 0.02 m |
Filter thread | 0.08 m |
Country of origin | Japan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | EF-S 10-22mm 3.5-4.5 USM, E-77U/E-77 II |
Weight | 385 g |
Length | 89.80 mm |
Diameter | 83.50 mm |
Length | 16.80 cm |
Width | 13.70 cm |
Height | 13.50 cm |
Weight | 620 g |
How often does a product of this brand in the «Lenses» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Lenses» category returned?
Source: Digitec Galaxus
The APS lens addresses the extreme wide-angle range and does quite well. From the medium focal length, the losses at the edges are clear, but can be made bearable by stopping down. Only the extreme corners remain low in contrast, which costs the recommendation. The distortion is only disturbing at the wide-angle position...
